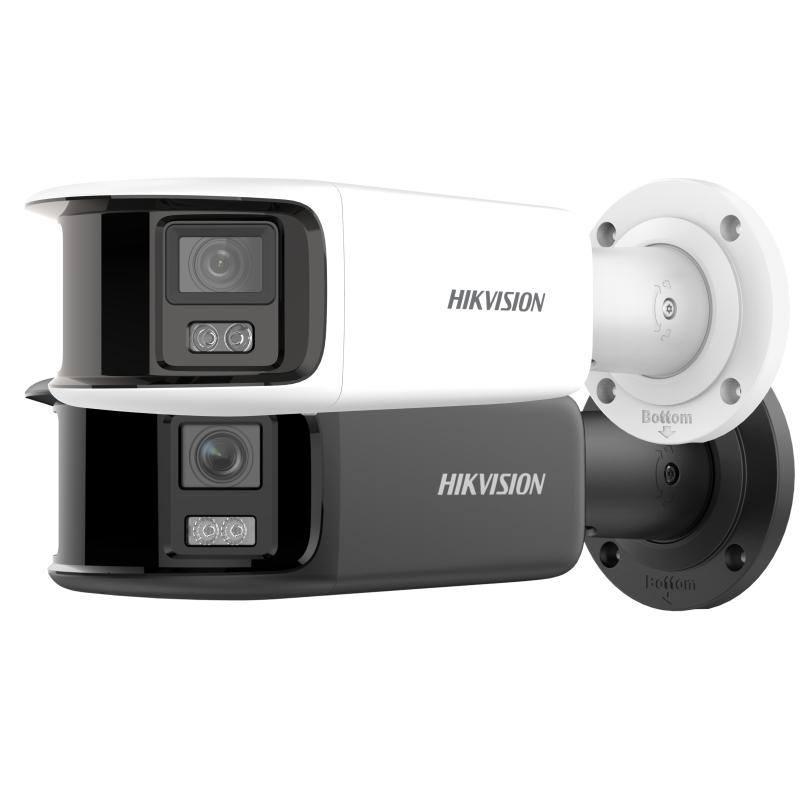

8 MP Panoramic ColorVu Fixed Bullet Network Camera

High quality imaging with 8 MP resolution
One image that presents all the scenes covered by the camera
24/7 colorful imaging
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Water and dust resistant (IP67)

View Less

Ficha Técnica

Modelos disponibles:

DS-2CD2T87G2P-LSU/SL(4mm)(C)

DS-2CD2T87G2P-LSU/SL

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen 2 × 1/1.8" Progressive Scan CMOS
Max. Resolución 5120 × 1440
Iluminación mínima Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Tiempo de obturación 1/3 s to 1/100,000 s
Ajuste de ángulo Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lente
Lente Fixed focal lens, dual lens: 4 mm
Focal Length & FOV 4 mm, horizontal FOV: 180°, vertical FOV: 44°
Montura del lente M16
Iris Type Fixed
Apertura F1.0
Depth of Field 3.6 m to ∞

DORI
DORI 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Iluminador
Tipo de luz suplementaria White Light
Rango de luz suplementaria Up to 40 m
Luz de suplemento inteligente Yes

Vídeo
Main stream When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440) When WDR is Off: 50 Hz: 20 fps (5120 × 1440) 60 Hz: 20 fps (5120 × 1440)
Sub-stream When WDR is On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272) 60 Hz: 15 fps (1920 × 536, 960 × 272) When WDR is Off: 50 Hz: 20 fps (1920 × 536, 960 × 272) 60 Hz: 20 fps (1920 × 536, 960 × 272)
Compresión de video Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate 32 Kbps to 16 Mbps
Tipo H.264 Baseline Profile,Main Profile,High Profile
Tipo H.265 Main Profile
Bit Rate Control CBR,VBR
Codificación de video escalable (SVC) H.264 and H.265 encoding
Región de interés (ROI) 1 fixed region for main stream

Audio
Tipo de audio Mono sound
Compresión de audio G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Velocidad de bits de audio 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Frecuencia de muestreo de audio 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtro de ruido ambiental Yes

Red
Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
Vista en vivo simultánea Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
Seguridad Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Almacenamiento en red NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Cliente iVMS-4200,Hik-Connect,Hik-Central
Navegador web Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen
Interruptor de parámetros de imagen Yes
Configuración de imagen saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interruptor día/noche Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ≥ 52 dB
Mejora de la imagen BLC,HLC,3D DNR
Máscara de privacidad 8 rectangular privacy masks

Interfaz
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Micrófono incorporado Yes
Altavoz incorporado Max. power consumption: 1 W, max. sound pressure: 10 cm: 97 dB
Audio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarma 1 input, 1 output (max. 24 VDC, 1 A)
Reset Key Yes

Evento
Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
Evento inteligente scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General
alimentación 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material Front cover: metal, body: metal, bracket: metal
Dimensión 118.6 mm × 105.1 mm × 305.4 mm (4.7" × 4.1" × 12")
Dimensión del paquete 405 mm × 190 mm × 180 mm (16" × 7.5" × 7.1")
Approx. 1420 g (3.1 lb.)
Con peso del paquete Approx. 2228 g (4.9 lb.)
Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Idioma 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Función general Anti-banding, heartbeat, password reset via email, password protection, one-key reset
Luz intermitente Yes

Certificaciones
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Seguridad UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protección IP67: IEC 60529-2013
