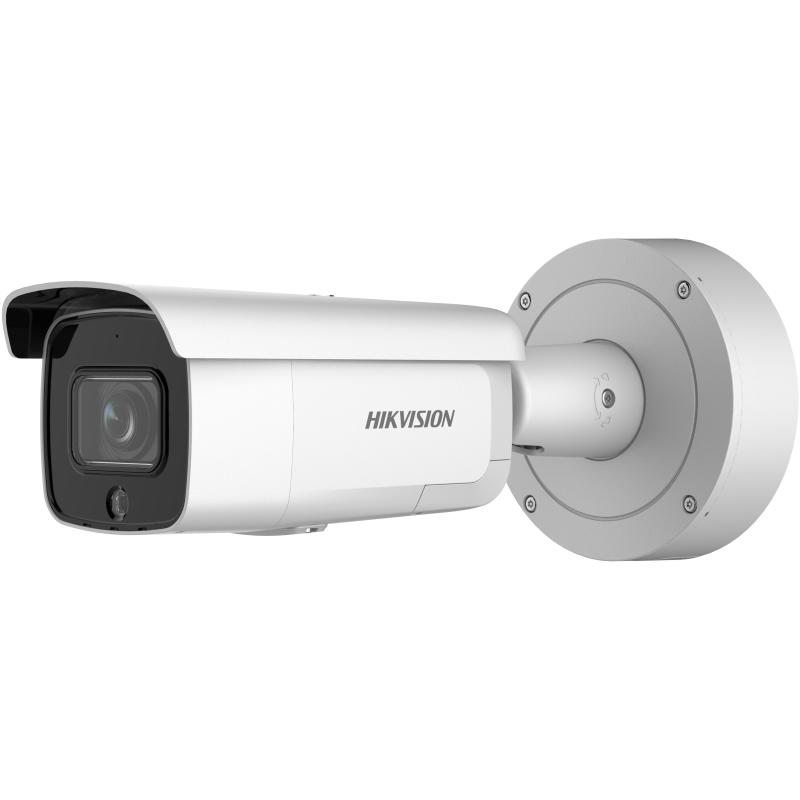

4K AcuSense Strobe Light and Audible Warning Varifocal Bullet Network Camera

  • High quality imaging with 8 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP66) and vandal resistant (IK10)
View Less
View more

Modelos disponibles:

DS-2CD2686G2-IZSU/SL(2.8-12mm)(C)

Especificación

  • Cámara
  • Sensor de imagen 1/1.8" Progressive Scan CMOS
  • Max. Resolución 3840 × 2160
  • Iluminación mínima Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
  • Tiempo de obturación 1/3 s to 1/100,000 s
  • Día y Noche IR cut filter
  • Ajuste de ángulo Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lente
  • Lente Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV 2.8 to 12 mm, horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4° to 52°
  • Montura del lente Ø14
  • Iris Type Fixed
  • Apertura F1.4
  • DORI
  • DORI 2.8 to 12 mm: Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m
  • Iluminador
  • Tipo de luz suplementaria IR
  • Rango de luz suplementaria Up to 60 m
  • Luz de suplemento inteligente Yes
  • IR Wavelength 850 nm
  • Vídeo
  • Main stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Compresión de video Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
  • Vídeo bitrate 32 Kbps to 16 Mbps
  • Tipo H.264 Baseline Profile/Main Profile/High Profile
  • Tipo H.265 Main Profile
  • Bit Rate Control CBR/VBR
  • Codificación de video escalable (SVC) H.264 and H.265 encoding
  • Región de interés (ROI) 1 fixed region for main stream and sub-stream
  • Recorte objetivo Yes
  • Audio
  • Tipo de audio Mono sound
  • Compresión de audio G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Velocidad de bits de audio 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Frecuencia de muestreo de audio 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Filtro de ruido ambiental Yes
  • Red
  • Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
  • Vista en vivo simultánea Up to 6 channels
  • API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • Usuario/operador Up to 32 users. 3 user levels: administrator, operator and user
  • Seguridad Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Almacenamiento en red MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Cliente iVMS-4200, Hik-Connect, Hik-Central
  • Navegador web Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Imagen
  • Interruptor de parámetros de imagen Yes
  • Configuración de imagen Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Interruptor día/noche Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR) 120 dB
  • SNR ≥ 52 dB
  • Mejora de la imagen BLC, HLC, 3D DNR
  • Interfaz
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Micrófono incorporado Yes
  • Altavoz incorporado Power: 2 W. Max. sound pressure level: 10 cm: 97 dB.
  • Audio 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm terminal block, output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarma Visual alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset Key Yes
  • Evento
  • Evento Básico Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Evento inteligente Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection
  • Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
  • Deep Learning Function
  • Captura de la cara Yes
  • General
  • alimentación 12 VDC ± 25%, 1.21 A, max. 14.5 W, two-core terminal block PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18 W
  • Dimensión Ø144.1 mm × 342.7 mm (Ø5.7" × 13.6")
  • Dimensión del paquete 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
  • Approx. 1450 g (3.2 lb.)
  • Con peso del paquete Approx. 2541 g (5.7 lb.)
  • Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Idioma 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Función general Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Certificaciones
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Seguridad UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
  • Ambiente CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protección IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
