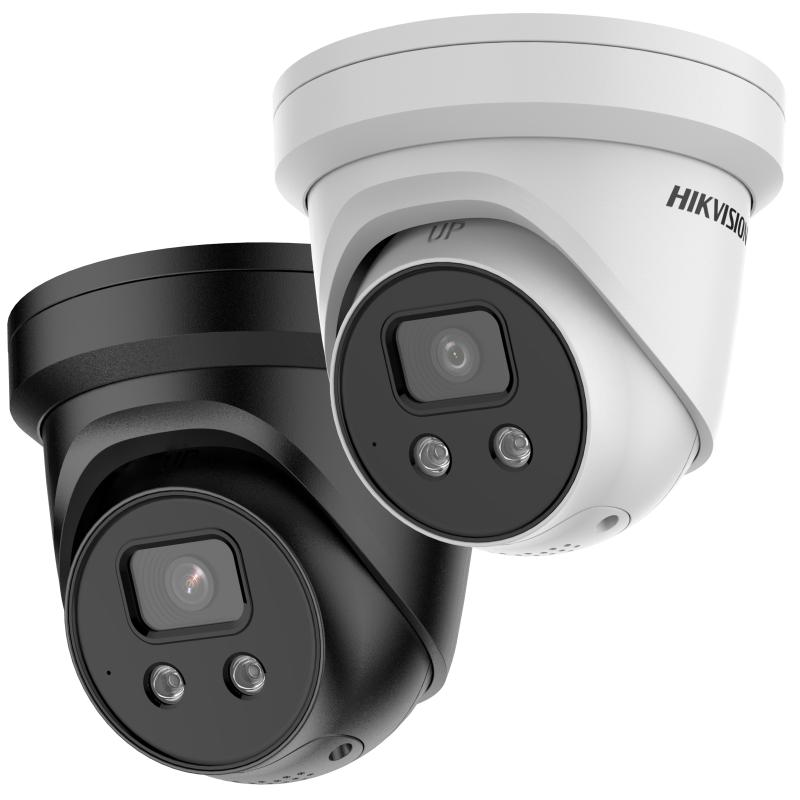

6 MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera

High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)

View Less

DS-2CD2366G2-ISU/SL (C)

DS-2CD2366G2-ISU/SL (C) (Black)

Ficha Técnica

Modelos disponibles:

DS-2CD2366G2-ISU/SL(2.8mm)(C)

DS-2CD2366G2-ISU/SL(4mm)(C)

Modelos disponibles:

DS-2CD2366G2-ISU/SL(2.8mm)/C/O-STD/BLACK

DS-2CD2366G2-ISU/SL

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen 1/2.4" Progressive Scan CMOS
Max. Resolución 3200 × 1800
Iluminación mínima Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Tiempo de obturación 1/3 s to 1/100,000 s
Día y Noche IR cut filter
Ajuste de ángulo Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lente
Lente Fixed lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV:38°, diagonal FOV 96°; 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Montura del lente M12
Iris Type Fixed
Apertura F1.6

DORI
DORI 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m; 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m; 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Iluminador
Tipo de luz suplementaria IR
Rango de luz suplementaria Up to 30 m
Luz de suplemento inteligente Yes
IR Wavelength 850 nm

Vídeo
Main stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
Compresión de video Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Vídeo bitrate 32 Kbps to 16 Mbps
Tipo H.264 Baseline Profile,Main Profile,High Profile
Tipo H.265 Main Profile
Bit Rate Control CBR,VBR
Codificación de video escalable (SVC) H.264 and H.265 encoding
Región de interés (ROI) 1 fixed region(s) for main stream and sub-stream

Audio
Tipo de audio Mono sound
Compresión de audio G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Velocidad de bits de audio 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Frecuencia de muestreo de audio 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtro de ruido ambiental Yes

Red
Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Vista en vivo simultánea Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
Seguridad Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Almacenamiento en red NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Cliente iVMS-4200,Hik-Connect,Hik-Central
Navegador web Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen
Interruptor de parámetros de imagen Yes
Configuración de imagen Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interruptor día/noche Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Mejora de la imagen BLC,HLC,3D DNR
Máscara de privacidad 4 programmable polygon privacy masks

Interfaz
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Micrófono incorporado Yes
Altavoz incorporado Max. power concumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
Audio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarma 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Reset Key Yes

Evento
Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception,alarm input and output
Evento inteligente Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning , strobe light

Deep Learning Function
Captura de la cara Yes

General
alimentación 12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.7 W
Material Metal except for trim ring
Dimensión Ø138.3 mm × 112.1 mm (Ø5.5" × 4.4")
Dimensión del paquete 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Approx. 820 g (1.8 lb.)
Con peso del paquete Approx. 1150 g (2.5 lb.)
Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Idioma 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Función general Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker

Certificaciones
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Seguridad UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protección IP67: IEC 60529-2013

Cámara

Sensor de imagen

1/2.4" Progressive Scan CMOS

Max. Resolución

3200 × 1800

Iluminación mínima

Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Tiempo de obturación

1/3 s to 1/100,000 s

Día y Noche

IR cut filter

Ajuste de ángulo

Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lente

Fixed lens, 2.8, 4, and 6 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV:38°, diagonal FOV 96°; 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°

Montura del lente

M12

Iris Type

Fixed

Apertura

F1.6

DORI

2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m; 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m; 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

Up to 30 m

Luz de suplemento inteligente

Yes

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile,Main Profile,High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR,VBR

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

1 fixed region(s) for main stream and sub-stream

Audio

Tipo de audio

Mono sound

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Velocidad de bits de audio

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP

Vista en vivo simultánea

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP

Usuario/operador

Up to 32 users 3 user levels: administrator, operator, and user

Seguridad

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Almacenamiento en red

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Cliente

iVMS-4200,Hik-Connect,Hik-Central

Navegador web

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interruptor día/noche

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Mejora de la imagen

BLC,HLC,3D DNR

Máscara de privacidad

4 programmable polygon privacy masks

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Micrófono incorporado

Yes

Altavoz incorporado

Max. power concumption: 1.2 W, max. sound pressure: 10 cm: 95 dB

Audio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarma

1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)

Reset Key

Yes

Evento

Evento Básico

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception,alarm input and output

Evento inteligente

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning , strobe light

Deep Learning Function

Captura de la cara

Yes

General

alimentación

12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.7 W

Material

Metal except for trim ring

Dimensión

Ø138.3 mm × 112.1 mm (Ø5.5" × 4.4")

Dimensión del paquete

170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Approx. 820 g (1.8 lb.)

Con peso del paquete

Approx. 1150 g (2.5 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Idioma

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Función general

Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker

Certificaciones

EMC

FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

Seguridad

UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Ambiente

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protección

IP67: IEC 60529-2013
