DS-2XC6625G0

EOL

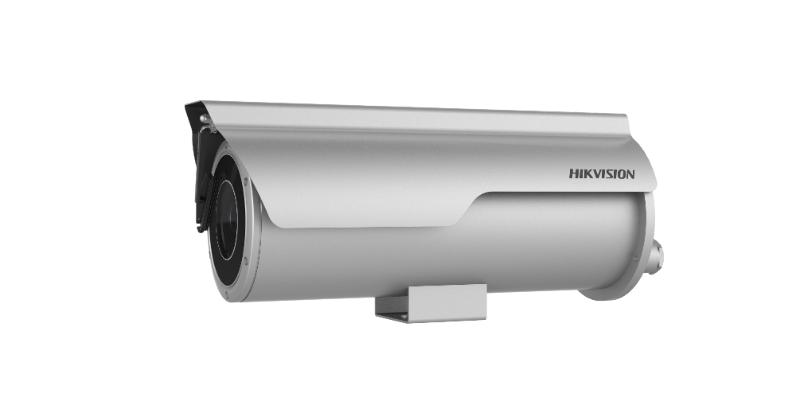

EXIR Motorized Varifocal Bullet Anti-Corrosion Network Camera

  • 316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
  • A built-in wiper removes water and dust on the screen and ensures clear images when the camera is used in dusty or damp environments
  • IP67 water resistant, preventing water ingress for outdoor use
  • H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
View Less
View more

Modelos disponibles:

DS-2XC6625G0-IZHRS(2.8-12mm)
DS-2XC6625G0-IZHRS(8-32mm)

Especificación

  • Cámara
  • Sensor de imagen1/1.8″ Progressive Scan CMOS
  • Max. Resolución1920 × 1080
  • Iluminación mínimaColor: 0.0005 Lux @(F1.2, AGC ON) B/W: 0.0001 Lux @(F1.2,AGC ON), 0 Lux with IR
  • Tiempo de obturación1/3 s to 1/100,000 s
  • Día y NocheIR cut filter
  • Lente
  • EnfoqueAuto, semi-auto, manual
  • LenteMotorized focal length, 2.8 to 12 mm, 8 to 32 mm
  • Focal Length & FOV2.8 to 12 mm, F1.4: horizontal field of view, 94.2° to 38.1° 8 to 32 mm, F1.7: horizontal field of view, 42.2° to 15.1°
  • Iluminador
  • Tipo de luz suplementariaIR
  • Rango de luz suplementaria2.8~12 mm: 80 m, 8~32 mm: 150 m
  • Luz de suplemento inteligenteYes
  • IR Wavelength850 nm
  • Vídeo
  • Main streamH.264/H.265: 50 Hz:25fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-streamH.264/H.265/MJPEG: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third StreamH.264/H.265: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  • Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Vídeo bitrate32 Kbps~8Mbps
  • Tipo H.264BaseLine Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • Bit Rate ControlCBR, VBR
  • Codificación de video escalable (SVC)H.265 and H.264 support
  • Región de interés (ROI)1 fixed regions for main stream and sub-stream
  • Recorte objetivoYes
  • Audio
  • Filtro de ruido ambientalYes
  • Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
  • Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Tipo de audioMono sound
  • Red
  • Vista en vivo simultáneaUp to 6 channels
  • APIOpen Network Video Interface, ISAPI, SDK, Ehome
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
  • Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
  • Almacenamiento en redMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClienteiVMS-4200, Hik-Connect, Hik-Central
  • Navegador webPlug-in required live view: IE8+, Chrome41.0~44, Firefox30.0~51, Safari8.0~11 Plug-in free live view: Chrome45.0+, Firefox52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge
  • Imagen
  • Wide Dynamic Range (WDR)120 dB
  • Interruptor día/nocheDay, Night, Auto, Schedule
  • Mejora de la imagenBLC, HLC, 3D DNR, Defog, EIS
  • Interruptor de parámetros de imagenYes
  • Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • SNR≥ 50db
  • Máscara de privacidadYes
  • Interfaz
  • Salida de Vídeo1Vp-p composite output (75 Ω/BNC)
  • Ethernet Interface RJ45 10M/100M self-adaptive Ethernet port
  • On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 G
  • Alarma1 input, 1 output (max. 24 VDC, 1 A or 110 VAC, 500 mA)
  • Reset KeyYes
  • Evento
  • Evento BásicoException (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, defocus detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
  • General
  • alimentaciónAC 24V: 24V±20%, 24V~, 1.7 A, 50/60 Hz, max. 40 W PoE: 802.3at, 42.5 V to 57 V, 0.57 A to 0.43 A, max: 24W
  • Dimensión179.9 mm × 203.2 mm × 472 mm (7.08" × 8" × 18.58")
  • 10.95 kg (24.14 lb.)
  • Condiciones de inicio y funcionamiento -40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)
  • CalentadorYes
  • Limpiador de lenteYes
  • Función generalAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
  • Certificaciones
  • EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
  • SeguridadUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
  • Ambiente2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
  • ProtecciónIP67
  • Protección anticorrosivaNEMA 4X C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.

Especificación

Especificación
Cámara
  • Sensor de imagen1/1.8″ Progressive Scan CMOS
  • Max. Resolución1920 × 1080
  • Iluminación mínimaColor: 0.0005 Lux @(F1.2, AGC ON) B/W: 0.0001 Lux @(F1.2,AGC ON), 0 Lux with IR
  • Tiempo de obturación1/3 s to 1/100,000 s
  • Día y NocheIR cut filter
Lente
  • EnfoqueAuto, semi-auto, manual
  • LenteMotorized focal length, 2.8 to 12 mm, 8 to 32 mm
  • Focal Length & FOV2.8 to 12 mm, F1.4: horizontal field of view, 94.2° to 38.1° 8 to 32 mm, F1.7: horizontal field of view, 42.2° to 15.1°
Iluminador
  • Tipo de luz suplementariaIR
  • Rango de luz suplementaria2.8~12 mm: 80 m, 8~32 mm: 150 m
  • Luz de suplemento inteligenteYes
  • IR Wavelength850 nm
Vídeo
  • Main streamH.264/H.265: 50 Hz:25fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-streamH.264/H.265/MJPEG: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third StreamH.264/H.265: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  • Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Vídeo bitrate32 Kbps~8Mbps
  • Tipo H.264BaseLine Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • Bit Rate ControlCBR, VBR
  • Codificación de video escalable (SVC)H.265 and H.264 support
  • Región de interés (ROI)1 fixed regions for main stream and sub-stream
  • Recorte objetivoYes
Audio
  • Filtro de ruido ambientalYes
  • Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
  • Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Tipo de audioMono sound
Red
  • Vista en vivo simultáneaUp to 6 channels
  • APIOpen Network Video Interface, ISAPI, SDK, Ehome
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
  • Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
  • Almacenamiento en redMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClienteiVMS-4200, Hik-Connect, Hik-Central
  • Navegador webPlug-in required live view: IE8+, Chrome41.0~44, Firefox30.0~51, Safari8.0~11 Plug-in free live view: Chrome45.0+, Firefox52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge
Imagen
  • Wide Dynamic Range (WDR)120 dB
  • Interruptor día/nocheDay, Night, Auto, Schedule
  • Mejora de la imagenBLC, HLC, 3D DNR, Defog, EIS
  • Interruptor de parámetros de imagenYes
  • Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • SNR≥ 50db
  • Máscara de privacidadYes
Interfaz
  • Salida de Vídeo1Vp-p composite output (75 Ω/BNC)
  • Ethernet Interface RJ45 10M/100M self-adaptive Ethernet port
  • On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 G
  • Alarma1 input, 1 output (max. 24 VDC, 1 A or 110 VAC, 500 mA)
  • Reset KeyYes
Evento
  • Evento BásicoException (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, defocus detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
General
  • alimentaciónAC 24V: 24V±20%, 24V~, 1.7 A, 50/60 Hz, max. 40 W PoE: 802.3at, 42.5 V to 57 V, 0.57 A to 0.43 A, max: 24W
  • Dimensión179.9 mm × 203.2 mm × 472 mm (7.08" × 8" × 18.58")
  • 10.95 kg (24.14 lb.)
  • Condiciones de inicio y funcionamiento -40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)
  • CalentadorYes
  • Limpiador de lenteYes
  • Función generalAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Certificaciones
  • EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
  • SeguridadUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
  • Ambiente2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
  • ProtecciónIP67
  • Protección anticorrosivaNEMA 4X C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.
