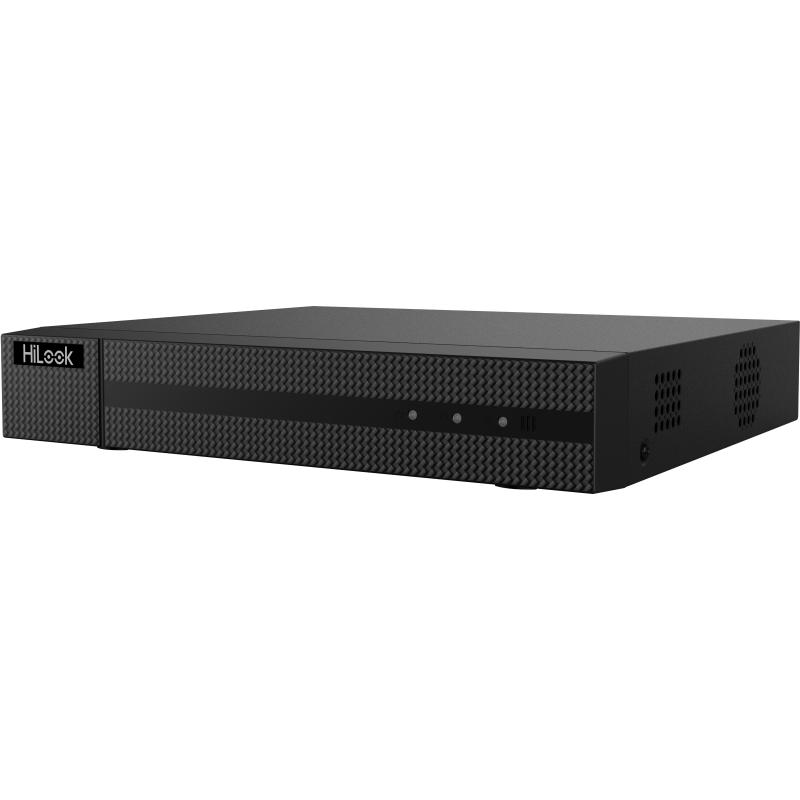

8-ch 1080p Lite 1U H.264 DVR

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Long distance transmission over UTP and coaxial cable
Supports 1080p lite, and when enabled the image effect is similar with 1080p
Encoding abilty up to 1080p lite @ 12 fps
One HDD for continuous video recording
Smart search for efficient playback.

View Less

Modelos disponibles:

DS-HiLookI-DVR-208G-F1(B)(S)

DVR-208G-F1

EOL

Especificación
Resources
Accesorios

Protección perimetral
Line Crossing Detection/Intrusion Detection1-ch

Video and Audio
Entrada de vídeo IP2-ch (up to 10-ch) Up to 5 MP resolution Support H.264+/H.264 IP cameras
Entrada de video analógico8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputSupport
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Entrada de Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
Salida de audio1-ch, RCA (Linear, 1 KΩ)
Two-Way AudioReuse the first audio input
Reproducción síncrona8-ch

Recording
Compresión de vídeoH.264+/H.264
Resolución de codificaciónWhen 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame RateMain stream: When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
Vídeo bitrate32 Kbps to 4 Mbps
Doble flujoSupport
Stream TypeVideo, Video & Audio
Compresión de audioG.711u
Audio Bitrate64 Kbps

Red
Conexión remota64
Protocolo de redTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Interfaz de red1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface
SATA1 SATA interface
CapacidadUp to 6 TB capacity for each disk
Interfaz USBN/A
Alarma E/SRear panel: 2 × USB 2.0

General
Fuente de alimentación12 VDC, 1.5 A
Consumo≤ 12 W
Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
Condiciones de Humedad10% to 90%
Dimensión (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
≤ 1 kg (2.2 lb)

Protección perimetral

Line Crossing Detection/Intrusion Detection

1-ch

Video and Audio

Entrada de vídeo IP

2-ch (up to 10-ch) Up to 5 MP resolution Support H.264+/H.264 IP cameras

Entrada de video analógico

8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

Support

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Entrada de Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable

Salida de audio

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

Reuse the first audio input

Reproducción síncrona

8-ch

Recording

Compresión de vídeo

H.264+/H.264

Resolución de codificación

When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF

Frame Rate

Main stream: When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)

Vídeo bitrate

32 Kbps to 4 Mbps

Doble flujo

Support

Stream Type

Video, Video & Audio

Compresión de audio

G.711u

Audio Bitrate

64 Kbps

Red

Conexión remota

Protocolo de red

TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Interfaz de red

1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface

Capacidad

Up to 6 TB capacity for each disk

Interfaz USB

N/A

Alarma E/S

Rear panel: 2 × USB 2.0

General

Fuente de alimentación

12 VDC, 1.5 A

Consumo

≤ 12 W

Temperatura de trabajo

-10 °C to 55 °C (14 °F to 131 °F)

Condiciones de Humedad

10% to 90%

Dimensión (W × D × H)

260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

≤ 1 kg (2.2 lb)
