EOL

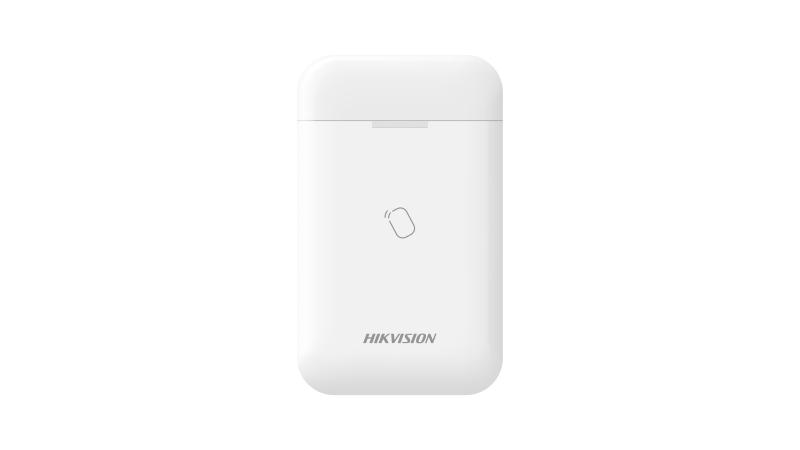

Wireless Tag Reader

  • 433MHz two-way wireless communication
  • AES-128 encryption
  • LED display, show the differernt feedbacks with easy understanding
  • Operation: Stay arm/away arm/disarm by areas
  • Arming process with fault confirm, more secure
  • Patrol tag check in
  • Front and rear panel tamper-proof
View Less
View more
Ficha Técnica
Sales Inquiry

Modelos disponibles:

DS-PT1-WB
DS-PT1-WB
EOL
Ficha Técnica

Especificación

  • Hardware features
  • Power switchPower on/off
  • Electrical characteristics
  • Battery typeThree AA batteries
  • Operation humidity10% to 90% (no condensing)
  • Operation temperature-10°C to +55°C (-4°F to +122°F)
  • Consumo de energíaQuiescent current: 110 uA Max current: 292mA Voltage: 1.5 VDC
  • Battery life spanUp to 2 years (standby time)
  • Wireless transmission
  • RF frequency433 MHz
  • RF modulation2GFSK
  • RF distance900m(open area)
  • pantalla
  • indicador5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)
  • General
  • Installation methodWall mounting
  • Dimension(WxHxD)75*124*21 mm
  • Colorwhite
  • 176g (with battery)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Hardware features
Power switch
Power on/off
Electrical characteristics
Battery type
Three AA batteries
Operation humidity
10% to 90% (no condensing)
Operation temperature
-10°C to +55°C (-4°F to +122°F)
Consumo de energía
Quiescent current: 110 uA Max current: 292mA Voltage: 1.5 VDC
Battery life span
Up to 2 years (standby time)
Wireless transmission
RF frequency
433 MHz
RF modulation
2GFSK
RF distance
900m(open area)
pantalla
indicador
5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)
General
Installation method
Wall mounting
Dimension(WxHxD)
75*124*21 mm
Color
white
176g (with battery)
Para una mejor experiencia de usuario, le recomendamos encarecidamente que actualice su dispositivo al más reciente firmware lo antes posible.
Especificación
Hardware features
  • Power switchPower on/off
Electrical characteristics
  • Battery typeThree AA batteries
  • Operation humidity10% to 90% (no condensing)
  • Operation temperature-10°C to +55°C (-4°F to +122°F)
  • Consumo de energíaQuiescent current: 110 uA Max current: 292mA Voltage: 1.5 VDC
  • Battery life spanUp to 2 years (standby time)
Wireless transmission
  • RF frequency433 MHz
  • RF modulation2GFSK
  • RF distance900m(open area)
pantalla
  • indicador5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)
General
  • Installation methodWall mounting
  • Dimension(WxHxD)75*124*21 mm
  • Colorwhite
  • 176g (with battery)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
