*Images are for illustrative purposes. Actual product appearance and specifications may vary.
NEW
add compare icon

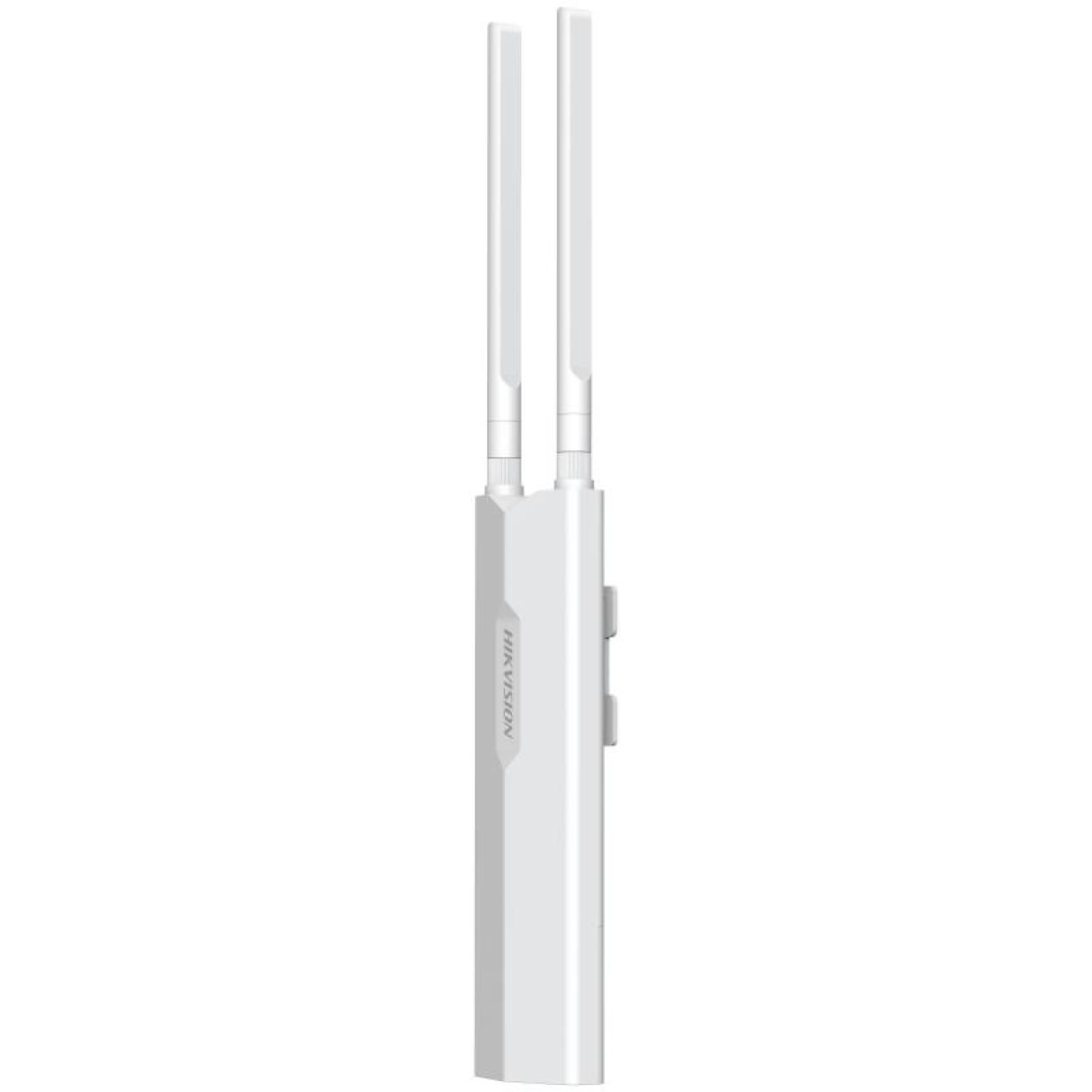

Wi-Fi 5 1200M Outdoor Access Point

  • 1 × Gigabit PoE in port,1 × Gigabit RJ45 port
  • 802.11ac Wave 2 1200 Mbps
  • Wall & Pole Mount
  • Wide Signal Coverage
  • IP65 Waterproof
View Less
View more
Data Sheet
Sales Inquiry
DS-3WAP5312-EI NEW
Data Sheet

Specification

  • General
  • Net Weight0.34 kg (0.75 lb)
  • Gross Weight0.55 kg (1.21 lb)
  • Installation ModeWall Mounting, Pole Mounting
  • Working Temperature -30°C to 65°C (-22°F to 149°F)
  • Working Humidity0% to 100% (no condensation)
  • Storage Temperature-40°C to 70°C (-40°F to 158°F)
  • Storage Humidity0% to 100% (no condensation)
  • Product Dimensions (W × H × D)65 mm × 225 mm × 32 mm
  • Packing List1200 M Access Point ×1, Antenna × 2, Band Clamp × 2, Mounting Bracket × 1, Screw Pack × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
  • Power Supply MethodPoE power supply: IEEE 802.3at
  • Max. Power Consumption15 W
  • Protection GradeIP65
  • Wireless Parameter
  • Wireless SpeedMax: 1167 Mbps; 2.4G: 300 Mbps; 5G: 867 Mbps;
  • Wireless StandardWi-Fi 5
  • Working Frequency BandRadio 1: 5G (11a/n/ac); Radio 2: 2.4G (11b/g/n);
  • Bandwidth2.4G: Auto/20/40 MHz; 5G: Auto/20/40/80 MHz;
  • Recommended Coverage RangeRecommended Coverage Radius: 150 meters. Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above - mentioned values are for reference only.
  • Max. Number of Connected Clients128
  • Recommended Number of Connected Clients80
  • Transmitting Power2.4G: Combined power: 27 dBm; 5G: Combined power: 27 dBm; Note: The actual transmission power varies according to regulations in different countries and regions;
  • Wireless SecurityWPA2-PSK, WPA-WPA2-PSK
  • Antenna TypeExternal Dual-Band omni antennas
  • Antenna Gain2.4 GHz: 3.7 dBi 5 GHz: 5 dBi
  • RF DesignDual-radio 4 spatial streams, 4 RF streams 2.4G: 2 × 2, MU-MIMO 5G: 2 × 2, MU-MIMO
  • Hardware Specifications
  • Ports1 × Gigabit PoE in port, 1 × Gigabit RJ45 port
  • RESET1 × Reset hole
  • Software Specifications
  • Max. Number of Wireless SSIDs7
  • Internet Access ModeDHCP,Static
  • VLAN ID Range1~4000
  • Max. Number of VLANs8
  • Software Features
  • Operation ModeAP mode (default); Routing mode;
  • Wireless ManagementSupport wireless configuration; Support RF configuration; Support Health Mode; Support guest SSID; Support wireless roaming; Support wireless optimization; Support wireless SSID speed limit; Support wireless RF speed limit; Support wireless intelligent speed limit; Support wireless terminal speed limit; Support weak signal access control; Support weak signal to kick offline; Support roaming sensitivity adjustment; Support wireless access control; Support wireless terminal association;
  • InterfaceSupport uplink port VLAN; Support MAC address modification; Support LAN configuration; Support Port VLAN;
  • IP ServicesSupport DHCP Client; Supports DHCP Server; Support LLDP; Support SADP;
  • Service and SupportSupport NAT Traversal; Support Audit Log; Support Fault Diagnosis; Support Fault Alarm; Support One-Click Fault Collection; Support Network Diagnostic Tools; Support SSH; Support Cloud Service Diagnosis; Support Local Upgrade; Support Online Upgrade; Support Cloud Service; Support App Management;
  • Approval
  • EMCCE-EMC (EN 55032: 2015+A11: 2020+A1: 2020 EN 50130-4: 2011 +A1: 2014 EN 55035: 2017+A11: 2020)
  • SafetyCB (IEC 62368-1: 2018), CE-LVD (EN 62368-1:2014/A11:2017)
  • ChemistryCE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
  • RadioEN 300 328, EN 300 440, EN 301 893, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 61000-3-3: 2013+ A1:2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024, EN IEC 62311: 2020
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Net Weight
0.34 kg (0.75 lb)
Gross Weight
0.55 kg (1.21 lb)
Installation Mode
Wall Mounting, Pole Mounting
Working Temperature
-30°C to 65°C (-22°F to 149°F)
Working Humidity
0% to 100% (no condensation)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Storage Humidity
0% to 100% (no condensation)
Product Dimensions (W × H × D)
65 mm × 225 mm × 32 mm
Packing List
1200 M Access Point ×1, Antenna × 2, Band Clamp × 2, Mounting Bracket × 1, Screw Pack × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
Power Supply Method
PoE power supply: IEEE 802.3at
Max. Power Consumption
15 W
Protection Grade
IP65
Wireless Parameter
Wireless Speed
Max: 1167 Mbps; 2.4G: 300 Mbps; 5G: 867 Mbps;
Wireless Standard
Wi-Fi 5
Working Frequency Band
Radio 1: 5G (11a/n/ac); Radio 2: 2.4G (11b/g/n);
Bandwidth
2.4G: Auto/20/40 MHz; 5G: Auto/20/40/80 MHz;
Recommended Coverage Range
Recommended Coverage Radius: 150 meters. Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above - mentioned values are for reference only.
Max. Number of Connected Clients
128
Recommended Number of Connected Clients
80
Transmitting Power
2.4G: Combined power: 27 dBm; 5G: Combined power: 27 dBm; Note: The actual transmission power varies according to regulations in different countries and regions;
Wireless Security
WPA2-PSK, WPA-WPA2-PSK
Antenna Type
External Dual-Band omni antennas
Antenna Gain
2.4 GHz: 3.7 dBi 5 GHz: 5 dBi
RF Design
Dual-radio 4 spatial streams, 4 RF streams 2.4G: 2 × 2, MU-MIMO 5G: 2 × 2, MU-MIMO
Hardware Specifications
Ports
1 × Gigabit PoE in port, 1 × Gigabit RJ45 port
RESET
1 × Reset hole
Software Specifications
Max. Number of Wireless SSIDs
7
Internet Access Mode
DHCP,Static
VLAN ID Range
1~4000
Max. Number of VLANs
8
Software Features
Operation Mode
AP mode (default); Routing mode;
Wireless Management
Support wireless configuration; Support RF configuration; Support Health Mode; Support guest SSID; Support wireless roaming; Support wireless optimization; Support wireless SSID speed limit; Support wireless RF speed limit; Support wireless intelligent speed limit; Support wireless terminal speed limit; Support weak signal access control; Support weak signal to kick offline; Support roaming sensitivity adjustment; Support wireless access control; Support wireless terminal association;
Interface
Support uplink port VLAN; Support MAC address modification; Support LAN configuration; Support Port VLAN;
IP Services
Support DHCP Client; Supports DHCP Server; Support LLDP; Support SADP;
Service and Support
Support NAT Traversal; Support Audit Log; Support Fault Diagnosis; Support Fault Alarm; Support One-Click Fault Collection; Support Network Diagnostic Tools; Support SSH; Support Cloud Service Diagnosis; Support Local Upgrade; Support Online Upgrade; Support Cloud Service; Support App Management;
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020 EN 50130-4: 2011 +A1: 2014 EN 55035: 2017+A11: 2020)
Safety
CB (IEC 62368-1: 2018), CE-LVD (EN 62368-1:2014/A11:2017)
Chemistry
CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
Radio
EN 300 328, EN 300 440, EN 301 893, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 61000-3-3: 2013+ A1:2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024, EN IEC 62311: 2020
