NEW

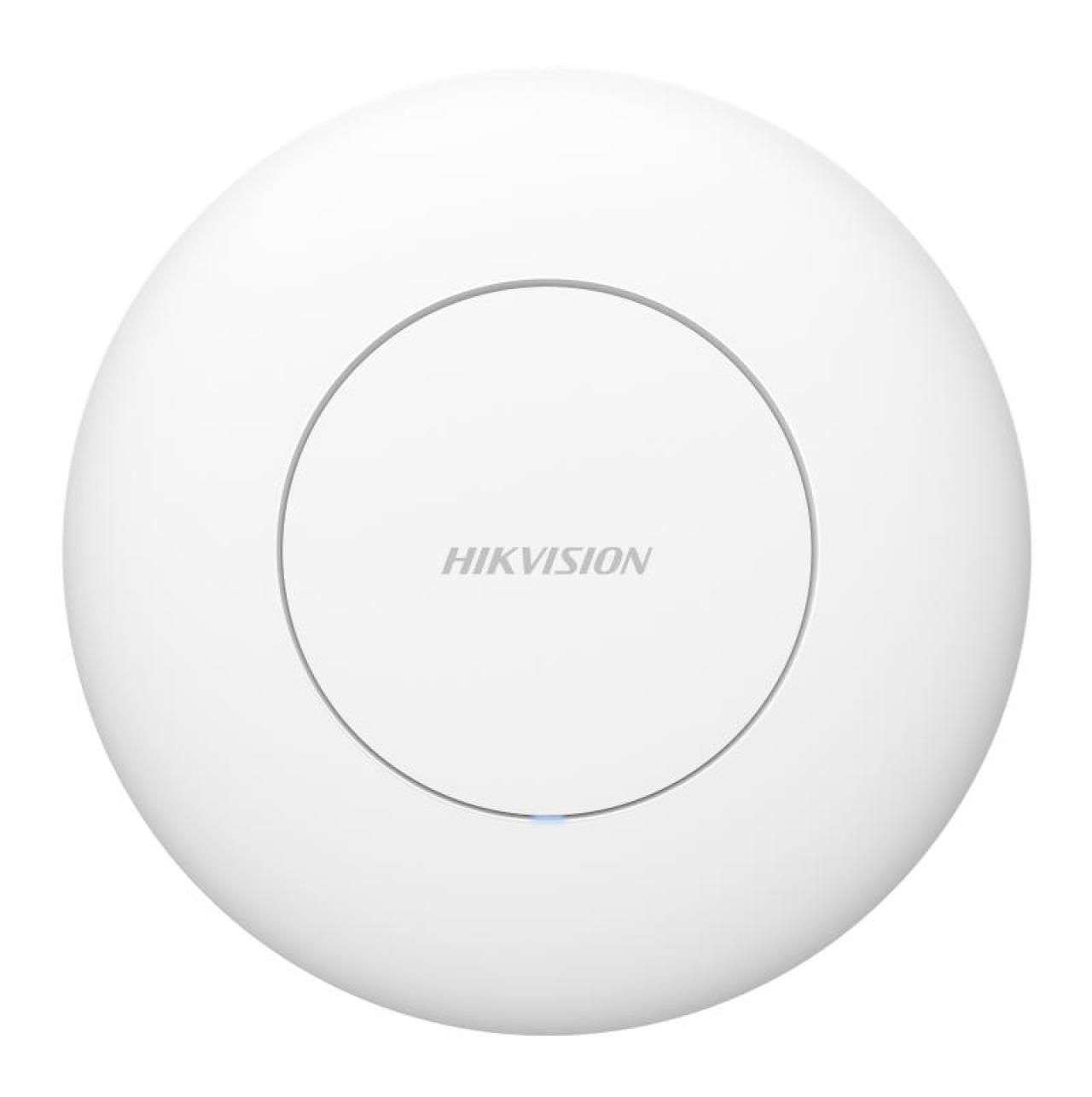

Wi-Fi 6 3000M Ceiling Access Point

Name: Wi-Fi 6 3000M Ceiling Access Point
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

1 × Gigabit PoE in port,1 × Gigabit RJ45 port
Wi-Fi 6 Dual Band 3000 Mbps
Auto RF Optimization
Wide Signal Coverage
Reliable Wi-Fi Connection
Outstanding Wall Penetration

View Less

Data Sheet

Available models:

DS-3WAP6230-EI

View more View Less

DS-3WAP6230-EI ^NEW

Specification
Resources
Accessories

Data Sheet

General
Net Weight0.4 kg (0.88 lb)
Gross Weight0.64 kg (1.41 lb)
Installation ModeCeiling Mounting
Working Temperature0°C to 40°C (32°F to 104°F)
Working Humidity10% to 90% (no condensation)
Storage Temperature-40°C to 70°C (-40°F to 158°F)
Storage Humidity5% to 95% (no condensation)
Product Dimensions (W × H × D)Ø220 mm × 49.7 mm (excluding bracket）
Packing List3000 M Access Point × 1, Screw Pack × 1, Installation bracket × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
Power Supply MethodDC power supply: 12 V, 2 A; PoE power supply: IEEE 802.3at;
Max. Power Consumption18 W

Wireless Parameter
Wireless SpeedMax: 2976 Mbps; 2.4G: 574 Mbps; 5G: 2402 Mbps;
Wireless StandardWi-Fi 6
Working Frequency BandRadio 1: 5G (11a/n/ac/ax); Radio 2: 2.4G (11b/g/n/ax);
Bandwidth2.4G: Auto/20/40 MHz; 5G: Auto/20/40/80/160 MHz;
Recommended Coverage RangeRecommended Coverage Range: 140 m², the radius in an open environment is 25 meters. Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above - mentioned values are for reference only.
Max. Number of Connected Clients256
Recommended Number of Connected Clients110
Transmitting Power2.4G: Combined power: 28 dBm; 5G: Combined power: 30 dBm; Note: The actual transmission power varies according to regulations in different countries and regions;
Wireless SecurityWPA2-PSK, WPA-WPA2-PSK, WPA3-PSK, WPA2-WPA3-PSK
Antenna TypeBuilt-in omnidirectional antennas
Antenna Gain2.4 GHz: 3.5 dBi 5 GHz: 4.5 dBi
RF DesignDual-radio 4 spatial streams, 5 RF streams 2.4G: 2 × 2, MU-MIMO 5G: 2 × 2, MU-MIMO

Hardware Specifications
Ports1 × Gigabit PoE in port, 1 × Gigabit RJ45 port
RESET1 × Reset hole

Software Specifications
Max. Number of Wireless SSIDs8
Internet Access ModeDHCP,Static
VLAN ID Range1~4000
Max. Number of VLANs8

Software Features
Operation ModeAP mode (default); Routing mode;
Wireless ManagementSupport wireless configuration; Support RF configuration; Support Health Mode; Support guest SSID; Support wireless roaming; Support wireless optimization; Support wireless SSID speed limit; Support wireless RF speed limit; Support wireless intelligent speed limit; Support wireless terminal speed limit; Support weak signal access control; Support weak signal to kick offline; Support roaming sensitivity adjustment; Support wireless access control; Support wireless terminal association;
InterfaceSupport uplink port VLAN; Support MAC address modification; Support LAN configuration; Support Port VLAN;
IP ServicesSupport DHCP Client; Supports DHCP Server; Support LLDP; Support SADP;
Service and SupportSupport NAT Traversal; Support Audit Log; Support Fault Diagnosis; Support Fault Alarm; Support One-Click Fault Collection; Support Network Diagnostic Tools; Support SSH; Support Cloud Service Diagnosis; Support Local Upgrade; Support Online Upgrade; Support Cloud Service; Support App Management;

Approval
EMCCE-EMC (EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 EN IEC 61000-3-2:2019/A2:2024 EN 61000-3-3:2013/A2:2021 EN 50130-4:2011/A1:2014)
SafetyCB (IEC 62368-1: 2018), CE-LVD (EN IEC 62368-1: 2020+ A11: 2020)
ChemistryCE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
RadioEN 300 328, EN 300 440, EN 301 893, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 61000-3-3: 2013+ A1:2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024, EN IEC 62311: 2020

General

Net Weight

0.4 kg (0.88 lb)

Gross Weight

0.64 kg (1.41 lb)

Installation Mode

Ceiling Mounting

Working Temperature

0°C to 40°C (32°F to 104°F)

Working Humidity

10% to 90% (no condensation)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Storage Humidity

5% to 95% (no condensation)

Product Dimensions (W × H × D)

Ø220 mm × 49.7 mm (excluding bracket）

Packing List

3000 M Access Point × 1, Screw Pack × 1, Installation bracket × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1

Power Supply Method

DC power supply: 12 V, 2 A; PoE power supply: IEEE 802.3at;

Max. Power Consumption

18 W

Wireless Parameter

Wireless Speed

Max: 2976 Mbps; 2.4G: 574 Mbps; 5G: 2402 Mbps;

Wireless Standard

Wi-Fi 6

Working Frequency Band

Radio 1: 5G (11a/n/ac/ax); Radio 2: 2.4G (11b/g/n/ax);

Bandwidth

2.4G: Auto/20/40 MHz; 5G: Auto/20/40/80/160 MHz;

Recommended Coverage Range

Recommended Coverage Range: 140 m², the radius in an open environment is 25 meters. Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above - mentioned values are for reference only.

Max. Number of Connected Clients

256

Recommended Number of Connected Clients

110

Transmitting Power

2.4G: Combined power: 28 dBm; 5G: Combined power: 30 dBm; Note: The actual transmission power varies according to regulations in different countries and regions;

Wireless Security

WPA2-PSK, WPA-WPA2-PSK, WPA3-PSK, WPA2-WPA3-PSK

Antenna Type

Built-in omnidirectional antennas

Antenna Gain

2.4 GHz: 3.5 dBi 5 GHz: 4.5 dBi

RF Design

Dual-radio 4 spatial streams, 5 RF streams 2.4G: 2 × 2, MU-MIMO 5G: 2 × 2, MU-MIMO

Hardware Specifications

Ports

1 × Gigabit PoE in port, 1 × Gigabit RJ45 port

RESET

1 × Reset hole

Software Specifications

Max. Number of Wireless SSIDs

Internet Access Mode

DHCP,Static

VLAN ID Range

1~4000

Max. Number of VLANs

Software Features

Operation Mode

AP mode (default); Routing mode;

Wireless Management

Support wireless configuration; Support RF configuration; Support Health Mode; Support guest SSID; Support wireless roaming; Support wireless optimization; Support wireless SSID speed limit; Support wireless RF speed limit; Support wireless intelligent speed limit; Support wireless terminal speed limit; Support weak signal access control; Support weak signal to kick offline; Support roaming sensitivity adjustment; Support wireless access control; Support wireless terminal association;

Interface

Support uplink port VLAN; Support MAC address modification; Support LAN configuration; Support Port VLAN;

IP Services

Support DHCP Client; Supports DHCP Server; Support LLDP; Support SADP;

Service and Support

Support NAT Traversal; Support Audit Log; Support Fault Diagnosis; Support Fault Alarm; Support One-Click Fault Collection; Support Network Diagnostic Tools; Support SSH; Support Cloud Service Diagnosis; Support Local Upgrade; Support Online Upgrade; Support Cloud Service; Support App Management;

Approval

EMC

CE-EMC (EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 EN IEC 61000-3-2:2019/A2:2024 EN 61000-3-3:2013/A2:2021 EN 50130-4:2011/A1:2014)

Safety

CB (IEC 62368-1: 2018), CE-LVD (EN IEC 62368-1: 2020+ A11: 2020)

Chemistry

CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)

Radio

EN 300 328, EN 300 440, EN 301 893, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 61000-3-3: 2013+ A1:2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024, EN IEC 62311: 2020
