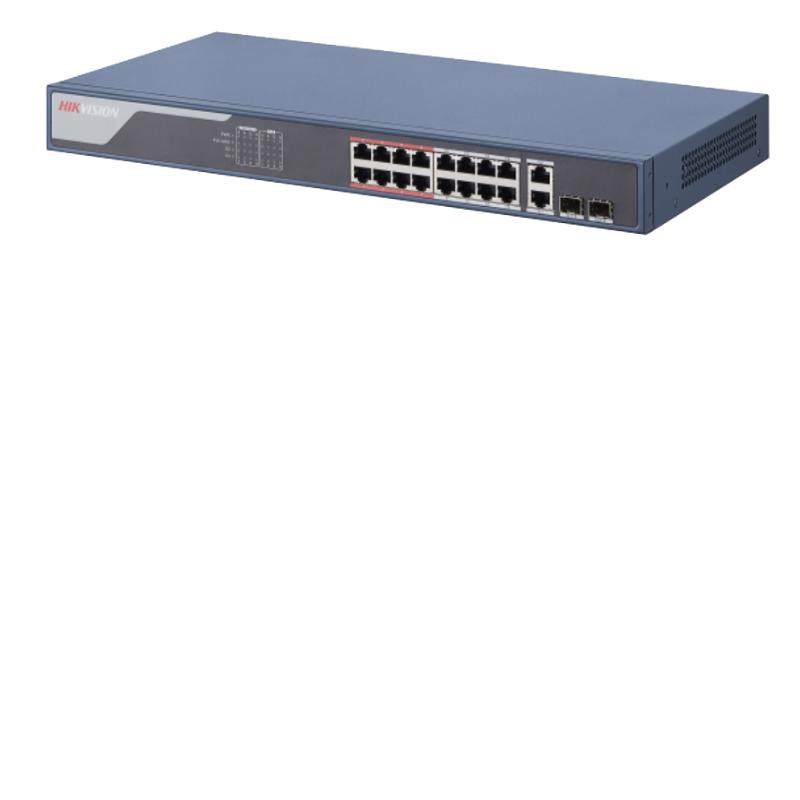

DS-3E1318P-SI(O-STD)

16 Port Fast Ethernet Smart POE Switch

16 × 100 Mbps PoE RJ45 port, 2 × gigabit combo.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 kV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.

View Less

Available models:

DS-3E1318P-SI

General
ShellMetal material
Net Weight2.59 kg (5.71 lb)
Gross Weight3.09 kg (6.81 lb)
Dimensions (W × H × D)440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply100-240 VAC, 50/60 Hz, Max. 2.5 A
Installation ModeRack (equipped with mounting ears)
Max. Power Consumption250 W
Power Consumption in Idle10 W
Surge Protection6 KV

Network Parameters
Ports16 × 10/100 Mbps PoE port,2 × Gigabit combo
MAC Address Table16 K
Switching Capacity9.2 Gbps
Packet Forwarding Rate6.84 Mpps
Internal Cache4 Mbits

PoE Power Supply
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-);
PoE PortPoE: Ports 1 to 16
Max. Port Power30 W
PoE Power Budget230 W

Software Function
Long RangePorts 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Port IsolationPorts 1 to 16: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
QoSQoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode.
Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.
VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
System MaintenanceRemote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Port Rate-Limiting Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
Storm ControlStorm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. Support port rate limiting based on broadcast, multicast, and unknown unicast packets.

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
ChemistryCE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
