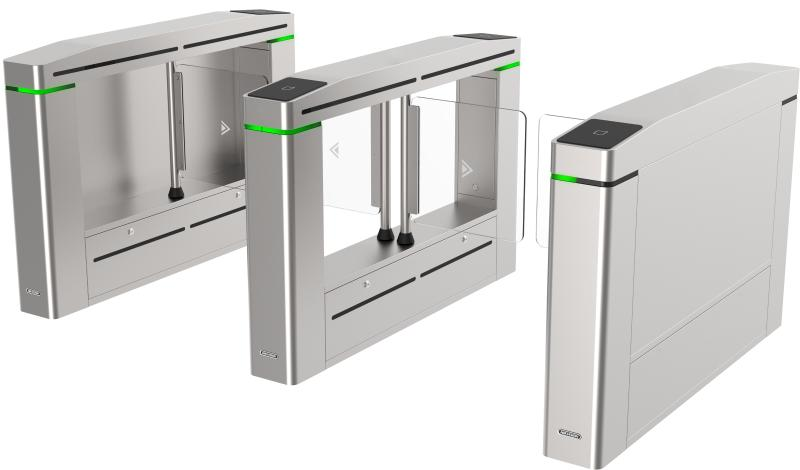

DS-K3B601SX


    Pro Swing Barrier

    • 20 pairs of IR light detectors: Permissions validation and anti-tailgating
    • LED light indicates passing direction
    • Audible and visual nipping alarm: The barrier will stop working for a period of time when detecting obstruction when open/close barrier
    • Self-detection, Self-diagnostics, and automatic alarm
    • Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
    • Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered.
    • Barrier is in free status when powering down
    View Less
    View more

    Available models:

    DS-K3B601SX-L/M-Dp65
    DS-K3B601SX-L/MPg-Dp65
    DS-K3B601SX-M/M-Dp65
    DS-K3B601SX-R/M-Dp65
    DS-K3B601SX-L/MPg-Dp75
    DS-K3B601SX-R/MPg-Dp75
    DS-K3B601SX-R/M-Dp90
    DS-K3B601SX-M/MPg-Dp75
    DS-K3B601SX-M/M-Dp75
    DS-K3B601SX-R/M-Dp75
    DS-K3B601SX-M/M-Dp90
    DS-K3B601SX-L/M-Dp75
    DS-K3B601SX-M/Dp65-90
    DS-K3B601SX-M/Dp90-65
    DS-K3B601SX-M/MPg-Dp110-75
    DS-K3B601SX-M/MPg-Dp75-90
    DS-K3B601SX-L/EPg-Dp65
    DS-K3B601SX-M/EPg-Dp65-90
    DS-K3B601SX-R/EPg-Dp90
    DS-K3B601SX-M/MPg-Dp90-65

    Specification

    • System
    • MCBF＞6 million times
    • MotorServo motor
    • Interface
    • Network interface1
    • RS-4854
    • RS-2324
    • Lock control2
    • Alarm input4
    • Alarm output4
    • Capacity
    • Card capacity60,000
    • Event capacity180,000
    • General
    • Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
    • Power supply method100 to 240 VAC; 50 to 60 Hz
    • IR light detectors20 pairs
    • Lane width550 mm to 1100 mm (21.65" to 43.31")
    • Working temperature-25 °C to 70 °C (-13 °F to 158 °F)
    • Working humidity10% to 95% (No Condensing)
    • Barrier materialStainless steel pipe; Acrylic glass
    • DimensionsWithout Packaging: 1500 mm × 200 mm × 990 mm (59.06” × 7.87” × 38.98”) With Packaging: 1610 mm × 300 mm × 1100 mm (63.39” × 11.81” × 43.31”)
    • Pedestal materialSUS304 stainless steel
    • WeightWithout packaging: 72 kg (left and right)/85 kg (middle) (158 lb/187 lb) With packaging: 102 kg (left and right)/115 kg (middle) (225 lb/253 lb)
    • ApprovalCE/FCC/CB/RoHS/REACH/WEEE
    • Application environmentIndoor and outdoor
    • Configuration
    • Module selectionNO
    • Authentication modeCard;Face;Fingerprint;QR code
    • Card typeM1;EM
    • Wall distance10mm
    • Recommended width650
    • Pedestal width200mm
    • Pedestal length1500mm
    • Barrier materialAcrylic glass,Stainless steel pipe
    • BaseYES
    • Base modelDS-K3B601-BASE
    • Lane width650,750,900,1100
    • Product typeSwing barrier
    • Remote controller type433Mhz;868Mhz
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    System
    MCBF
    ＞6 million times
    Motor
    Servo motor
    Interface
    Network interface
    1
    RS-485
    4
    RS-232
    4
    Lock control
    2
    Alarm input
    4
    Alarm output
    4
    Capacity
    Card capacity
    60,000
    Event capacity
    180,000
    General
    Throughput
    30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
    Power supply method
    100 to 240 VAC; 50 to 60 Hz
    IR light detectors
    20 pairs
    Lane width
    550 mm to 1100 mm (21.65" to 43.31")
    Working temperature
    -25 °C to 70 °C (-13 °F to 158 °F)
    Working humidity
    10% to 95% (No Condensing)
    Barrier material
    Stainless steel pipe; Acrylic glass
    Dimensions
    Without Packaging: 1500 mm × 200 mm × 990 mm (59.06” × 7.87” × 38.98”) With Packaging: 1610 mm × 300 mm × 1100 mm (63.39” × 11.81” × 43.31”)
    Pedestal material
    SUS304 stainless steel
    Weight
    Without packaging: 72 kg (left and right)/85 kg (middle) (158 lb/187 lb) With packaging: 102 kg (left and right)/115 kg (middle) (225 lb/253 lb)
    Approval
    CE/FCC/CB/RoHS/REACH/WEEE
    Application environment
    Indoor and outdoor
    Configuration
    Module selection
    NO
    Authentication mode
    Card;Face;Fingerprint;QR code
    Card type
    M1;EM
    Wall distance
    10mm
    Recommended width
    650
    Pedestal width
    200mm
    Pedestal length
    1500mm
    Barrier material
    Acrylic glass,Stainless steel pipe
    Base
    YES
    Base model
    DS-K3B601-BASE
    Lane width
    650,750,900,1100
    Product type
    Swing barrier
    Remote controller type
    433Mhz;868Mhz
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    System
    • MCBF＞6 million times
    • MotorServo motor
    Interface
    • Network interface1
    • RS-4854
    • RS-2324
    • Lock control2
    • Alarm input4
    • Alarm output4
    Capacity
    • Card capacity60,000
    • Event capacity180,000
    General
    • Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
    • Power supply method100 to 240 VAC; 50 to 60 Hz
    • IR light detectors20 pairs
    • Lane width550 mm to 1100 mm (21.65" to 43.31")
    • Working temperature-25 °C to 70 °C (-13 °F to 158 °F)
    • Working humidity10% to 95% (No Condensing)
    • Barrier materialStainless steel pipe; Acrylic glass
    • DimensionsWithout Packaging: 1500 mm × 200 mm × 990 mm (59.06” × 7.87” × 38.98”) With Packaging: 1610 mm × 300 mm × 1100 mm (63.39” × 11.81” × 43.31”)
    • Pedestal materialSUS304 stainless steel
    • WeightWithout packaging: 72 kg (left and right)/85 kg (middle) (158 lb/187 lb) With packaging: 102 kg (left and right)/115 kg (middle) (225 lb/253 lb)
    • ApprovalCE/FCC/CB/RoHS/REACH/WEEE
    • Application environmentIndoor and outdoor
    Configuration
    • Module selectionNO
    • Authentication modeCard;Face;Fingerprint;QR code
    • Card typeM1;EM
    • Wall distance10mm
    • Recommended width650
    • Pedestal width200mm
    • Pedestal length1500mm
    • Barrier materialAcrylic glass,Stainless steel pipe
    • BaseYES
    • Base modelDS-K3B601-BASE
    • Lane width650,750,900,1100
    • Product typeSwing barrier
    • Remote controller type433Mhz;868Mhz
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
