*Images are for illustrative purposes. Actual product appearance and specifications may vary.

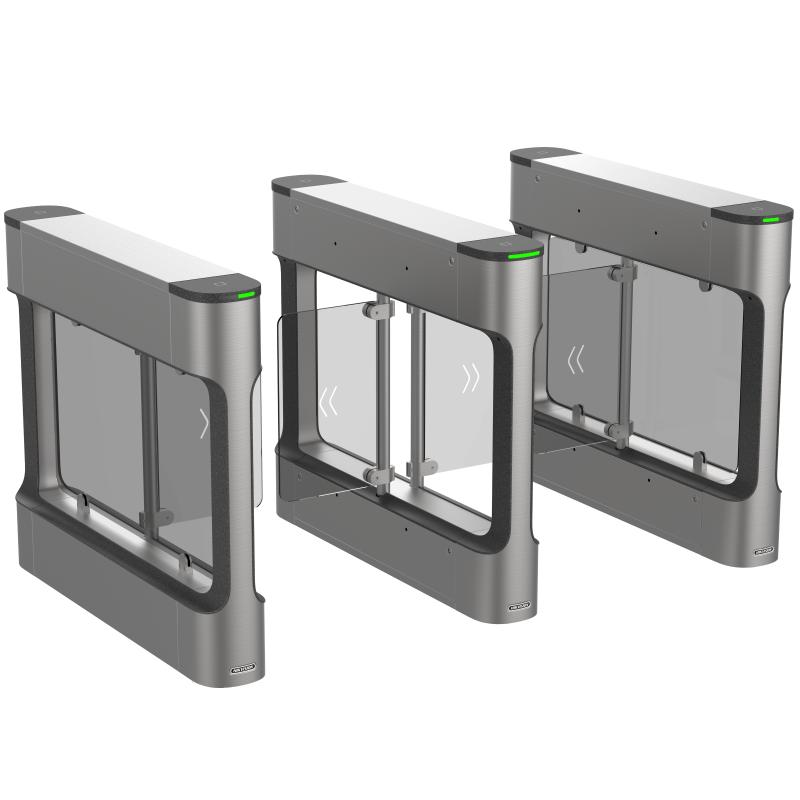

Value Swing Barriers

  • 6 pairs of IR light detectors: Permissions validation and anti-tailgating
  • LED light indicates passing direction
  • The barrier will stop working for a period of time when detecting obstruction when open/close barrier
  • Self-detection, Self-diagnostics, and automatic alarm
  • System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
  • Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered.
  • Barrier will automatically open when powering down
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K3B411BX-L/M-Dp65
DS-K3B411BX-M/M-Dp65
DS-K3B411BX-R/M-Dp65
DS-K3B411BX-L/D-Dp65
DS-K3B411BX-L/MPg-Dp65
DS-K3B411BX-L/MPg-Dp90
DS-K3B411BLX-M/Pg-Dp65
DS-K3B411BLX-M/Dp65
DS-K3B411BX-M/D-Dp65
DS-K3B411BX-M/MPg-Dp65-90
DS-K3B411BX-M/MPg-Dp90-65
DS-K3B411BX-M/M-Dp65
DS-K3B411BX-R/D-Dp65
DS-K3B411BX-R/MPg-Dp90
DS-K3B411BX-R/MPg-Dp65
DS-K3B411BX-R/M-Dp65
DS-K3B411BX-M/MPg-Dp65
DS-K3B411BX-M/MPg-Dp90
DS-K3B411BX-L/MPg-Dp75
DS-K3B411BX-R/MPg-Dp75
DS-K3B411BX-M/MPg-Dp75
DS-K3B411BX-L/M
DS-K3B411BX-M/M
DS-K3B411BX-R/M
DS-K3B411BX-L/MPg
DS-K3B411BX-M/MPg
DS-K3B411BX-R/MPg
DS-K3B411BX-L/MPgQ-Dp65
DS-K3B411BX-M/MPgQ-Dp65-110
DS-K3B411BX-R/MPgQ-Dp110
DS-K3B411BX-M/MPg-Dp65-110
DS-K3B411BX-R/MPg-Dp110
DS-K3B411BX-L/MPg-Dp110
DS-K3B411BX-M/MPg-Dp110-65
DS-K3B411BX-L/Dp65
DS-K3B411BX-M/InMPg-Dp65-110
DS-K3B411BX-R/Dp110
DS-K3B411BX-M/MPgQ-Dp65
DS-K3B411BX-R/MPgQ-Dp65
DS-K3B411BX-L/MQ
DS-K3B411BX-M/MQ
DS-K3B411BX-R/MQ
DS-K3B411BX-L/EPg-Dp65
DS-K3B411BX-M/EPg-Dp65
DS-K3B411BX-R/EPg-Dp65
DS-K3B411BX-M/MPg-Dp110
DS-K3B411BX-L/MPgQ-Dp110
DS-K3B411BX-M/MPgQ-Dp110
DS-K3B411BX-L/M-Dp110
DS-K3B411BX-M/M-Dp110
DS-K3B411BX-R/M-Dp110
DS-K3B411BX-M/EPg-Dp65-110
DS-K3B411BX-R/EPg-Dp110
DS-K3B411BX-L/Dp110
DS-K3B411BX-L
DS-K3B411BX-M
DS-K3B411BX-R
DS-K3B411BX-L/EPg
DS-K3B411BX-M/EPg
DS-K3B411BX-R/EPg
DS-K3B411BX-L/MPgQ
DS-K3B411BX-M/MPgQ
DS-K3B411BX-R/MPgQ
DS-K3B411BX-L/PgQ
DS-K3B411BX-M/PgQ
DS-K3B411BX-R/PgQ
DS-K3B411BX-M/M-InPg-Dp65
DS-K3B411BX-M/M-OutPg-Dp65
DS-K3B411BX-M/M-OutPg-Dp65-110
DS-K3B411BX-L/MPg-Dp55
DS-K3B411BX-M/MPg-Dp55
DS-K3B411BX-R/MPg-Dp55
DS-K3B411BX-R/MPgQ-Dp110
DS-K3B411BX-R/Dp110
DS-K3B411BX
Data Sheet

Specification

  • System
  • MotorBrushless motor
  • MCBF≥ 3 million times
  • IR light detectors6 pairs
  • Interface
  • Network interface1
  • Lock control2
  • Exit button2
  • Alarm output2
  • RS-4854
  • RS-2322
  • Hardware
  • Access controllerSupplied
  • Capacity
  • Face capacity500,000
  • Card capacity500,000
  • General
  • Throughput20 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
  • Lane width550 mm to 1100 mm
  • Barrier materialStainless steel pipe; Acrylic
  • Pedestal materialSUS304 stainless steel
  • Power consumption65W (stand by)
  • Working temperature -20 °C to 65 °C °C (-4 °F °F to 149 °F °F)
  • Working humidity10% to 95% (No condensing)
  • DimensionsWithout package: 1200 mm × 200 mm × 1020 mm (47.2" × 7.9" × 40.2") With package: 1408 mm × 348 mm × 1156 mm (55.4" × 13.7" × 45.5")
  • Net: Left: 38.3 kg (84.5 lb) Middle: 43.3 kg (95.5 lb) Right: 40.2 kg(88.6 lb) Gross: Left: 66.5 kg (146.6 lb) Middle: 71.5 kg (157.7 lb) Right: 68.4 kg (150.8 lb)
  • Configuration
  • Lane width650;750;900;1100
  • Pedestal length1200 mm
  • Module selectionYES
  • Pedestal width200 mm
  • Wall distance60 mm
  • BaseYES
  • Barrier materialAcrylic glass;Stainless steel pipe
  • Application environmentIndoor and outdoor
  • Authentication modeCard;Face;QR code
  • Card typeEM;M1
  • Recommended width650 mm
  • Base modelDS-KSM01/B411
  • Product typeSwing barrier
  • Remote controller type433Mhz;868Mhz
  • Convert FaceNO
  • Door HeightDefault(0.77m)
  • Door wing gapDefault:50mm
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Motor
Brushless motor
MCBF
≥ 3 million times
IR light detectors
6 pairs
Interface
Network interface
1
Lock control
2
Exit button
2
Alarm output
2
RS-485
4
RS-232
2
Hardware
Access controller
Supplied
Capacity
Face capacity
500,000
Card capacity
500,000
General
Throughput
20 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
Lane width
550 mm to 1100 mm
Barrier material
Stainless steel pipe; Acrylic
Pedestal material
SUS304 stainless steel
Power consumption
65W (stand by)
Working temperature
-20 °C to 65 °C °C (-4 °F °F to 149 °F °F)
Working humidity
10% to 95% (No condensing)
Dimensions
Without package: 1200 mm × 200 mm × 1020 mm (47.2" × 7.9" × 40.2") With package: 1408 mm × 348 mm × 1156 mm (55.4" × 13.7" × 45.5")
Net: Left: 38.3 kg (84.5 lb) Middle: 43.3 kg (95.5 lb) Right: 40.2 kg(88.6 lb) Gross: Left: 66.5 kg (146.6 lb) Middle: 71.5 kg (157.7 lb) Right: 68.4 kg (150.8 lb)
Configuration
Lane width
650;750;900;1100
Pedestal length
1200 mm
Module selection
YES
Pedestal width
200 mm
Wall distance
60 mm
Base
YES
Barrier material
Acrylic glass;Stainless steel pipe
Application environment
Indoor and outdoor
Authentication mode
Card;Face;QR code
Card type
EM;M1
Recommended width
650 mm
Base model
DS-KSM01/B411
Product type
Swing barrier
Remote controller type
433Mhz;868Mhz
Convert Face
NO
Door Height
Default(0.77m)
Door wing gap
Default:50mm
