*Images are for illustrative purposes. Actual product appearance and specifications may vary.
NEW
add compare icon

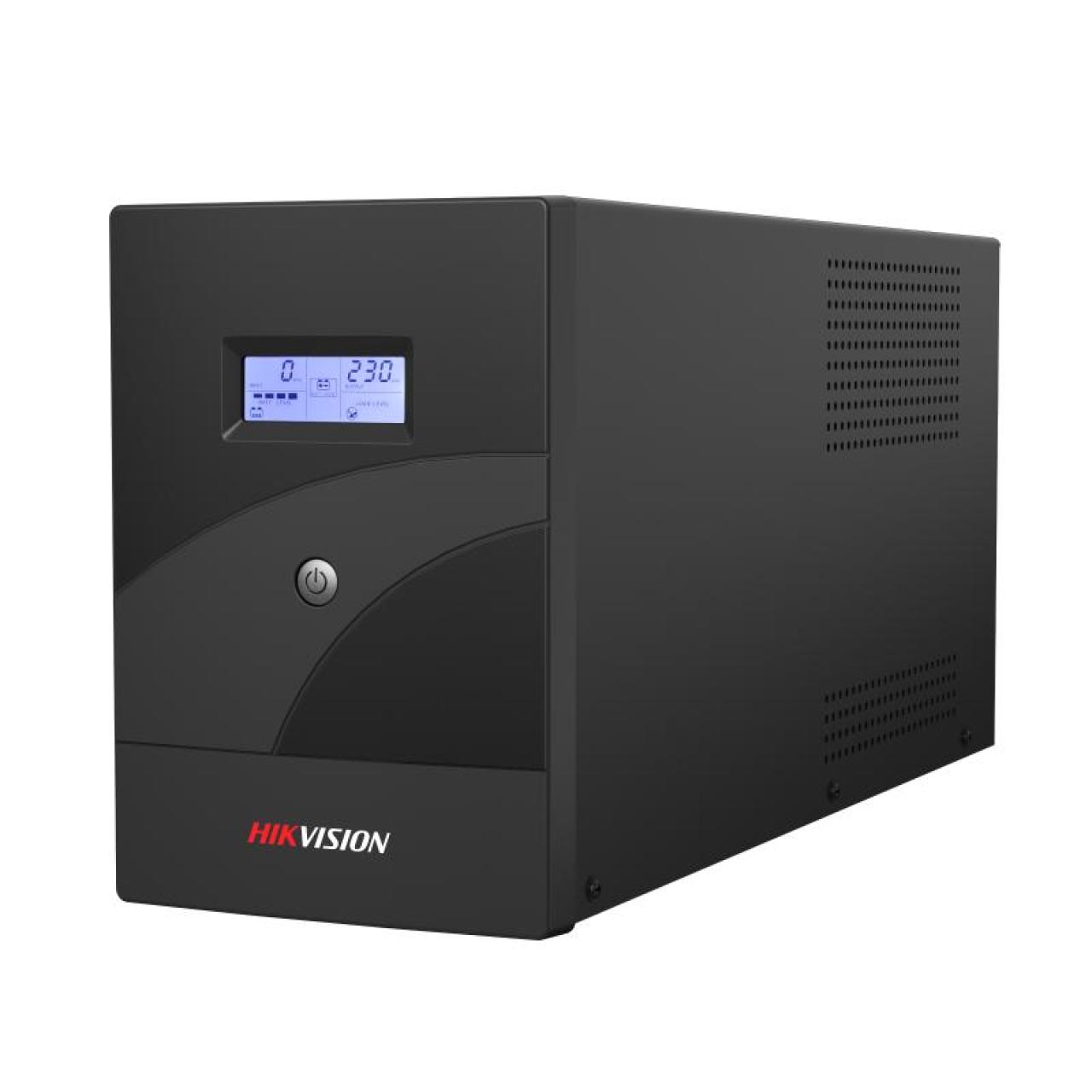

3000VA/1800W,Backup UPS with built-in battery

  • Built-in AVR
  • Auto restart while AC is recovering
  • Super fast charging
  • Wide input voltage range
  • Overload protection
  • Short circuit protection
  • Surge protection
  • USB port for remote control
  • LCD display
View Less
View more
DS-UPS3000-R (EU)
DS-UPS3000-R (UNI)
Data Sheet
Sales Inquiry

Available models:

DS-UPS3000-R
View more View Less

Available models:

DS-UPS3000-R/UK/Uni(E)
View more View Less
DS-UPS3000-R NEW
Data Sheet

Specification

  • Power
  • UPS Capacity 3000 VA / 1800 W
  • Input
  • Input Voltage Range 162VAC to 290 VAC
  • Input Frequency 50/60 Hz self-adaptive
  • Plug Type Schuko
  • Output
  • Output Frequency 50/60 Hz ± 0.5 Hz self-adaptive
  • Output Voltage Range 230VAC ± 10%
  • Transfer Time ≤ 10 ms
  • Waveform Simulated Sinewave
  • Outlet Type Schuko
  • Outlet Number 4
  • Battery
  • Battery Type 12 V/9 Ah x 4, lead-acid battery
  • Recharge Time 6~8 hours recover to 90% capacity
  • Typical Backup Time Run time at 500w: 20-25 min
  • Interface
  • Communicate Ports USB
  • Protection
  • Full Protection Surge protection, Overload protection, Discharge protection, Short circuit protection
  • Indicator
  • Display LCD Screen AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low
  • Alarm Charging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding
  • General
  • Operating Temperature 0 °C to 40 °C (32 °F to 104 °F）
  • Operating Humidity 0% to 90% (non-condensing)
  • Dimension 145 mm × 433.5 mm × 208.5 mm (5.71" ×17.07"× 8.21" )
  • Approx. 23 kg (50.71 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Power
UPS Capacity
3000 VA / 1800 W
Input
Input Voltage Range
162VAC to 290 VAC
Input Frequency
50/60 Hz self-adaptive
Plug Type
Type B (NEMA 5-15);TYPE H;UK TYPE G;TYPE L (10A);South Africa;Argentina Type I;Schuko
Output
Output Frequency
50/60 Hz ± 0.5 Hz self-adaptive
Output Voltage Range
230VAC ± 10%
Transfer Time
≤ 10 ms
Waveform
Simulated Sinewave
Outlet Type
Type B (NEMA 5-15);TYPE H;2* SA & 2* IEC C13;Universal;TYPE L (10/16A);Argentina Type I;Schuko
Outlet Number
6;4;8
Battery
Battery Type
12 V/9 Ah x 4, lead-acid battery
Recharge Time
6~8 hours recover to 90% capacity
Typical Backup Time
Run time at 500w: 20-25 min
Interface
Communicate Ports
USB
Protection
Full Protection
Surge protection, Overload protection, Discharge protection, Short circuit protection
Indicator
Display
LCD Screen AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low
Alarm
Charging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding
General
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F）
Operating Humidity
0% to 90% (non-condensing)
Dimension
145 mm × 433.5 mm × 208.5 mm (5.71" ×17.07"× 8.21" )
Approx. 23 kg (50.71 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

Specification

  • Power
  • UPS Capacity 3000 VA / 1800 W
  • Input
  • Input Voltage Range 140 VAC to 300 VAC
  • Input Frequency 50/60 Hz self-adaptive
  • Plug Type Schuko;Type B (NEMA 5-15)
  • Output
  • Output Frequency 50/60 Hz ± 0.5 Hz self-adaptive
  • Output Voltage Range 230VAC ± 10%
  • Transfer Time ≤ 10 ms
  • Waveform Simulated Sinewave
  • Outlet Type Universal;Type B (NEMA 5-15)
  • Outlet Number 4;8
  • Battery
  • Battery Type 12 V/9 Ah x 4, lead-acid battery
  • Recharge Time 6~8 hours recover to 90% capacity
  • Typical Backup Time Run time at 500w: 20-25 min
  • Interface
  • Communicate Ports USB
  • Protection
  • Full Protection Surge protection, Overload protection, Discharge protection, Short circuit protection
  • Indicator
  • Display LCD Screen AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low
  • Alarm Charging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding
  • General
  • Operating Temperature 0 °C to 40 °C (32 °F to 104 °F）
  • Operating Humidity 0% to 90% (non-condensing)
  • Dimension 145 mm × 433.5 mm × 208.5 mm (5.71" ×17.07"× 8.21" )
  • Approx. 23 kg (50.71 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Power
UPS Capacity
3000 VA / 1800 W
Input
Input Voltage Range
162VAC to 290 VAC
Input Frequency
50/60 Hz self-adaptive
Plug Type
Type B (NEMA 5-15);TYPE H;UK TYPE G;TYPE L (10A);South Africa;Argentina Type I;Schuko
Output
Output Frequency
50/60 Hz ± 0.5 Hz self-adaptive
Output Voltage Range
230VAC ± 10%
Transfer Time
≤ 10 ms
Waveform
Simulated Sinewave
Outlet Type
Type B (NEMA 5-15);TYPE H;2* SA & 2* IEC C13;Universal;TYPE L (10/16A);Argentina Type I;Schuko
Outlet Number
6;4;8
Battery
Battery Type
12 V/9 Ah x 4, lead-acid battery
Recharge Time
6~8 hours recover to 90% capacity
Typical Backup Time
Run time at 500w: 20-25 min
Interface
Communicate Ports
USB
Protection
Full Protection
Surge protection, Overload protection, Discharge protection, Short circuit protection
Indicator
Display
LCD Screen AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low
Alarm
Charging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding
General
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F）
Operating Humidity
0% to 90% (non-condensing)
Dimension
145 mm × 433.5 mm × 208.5 mm (5.71" ×17.07"× 8.21" )
Approx. 23 kg (50.71 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
