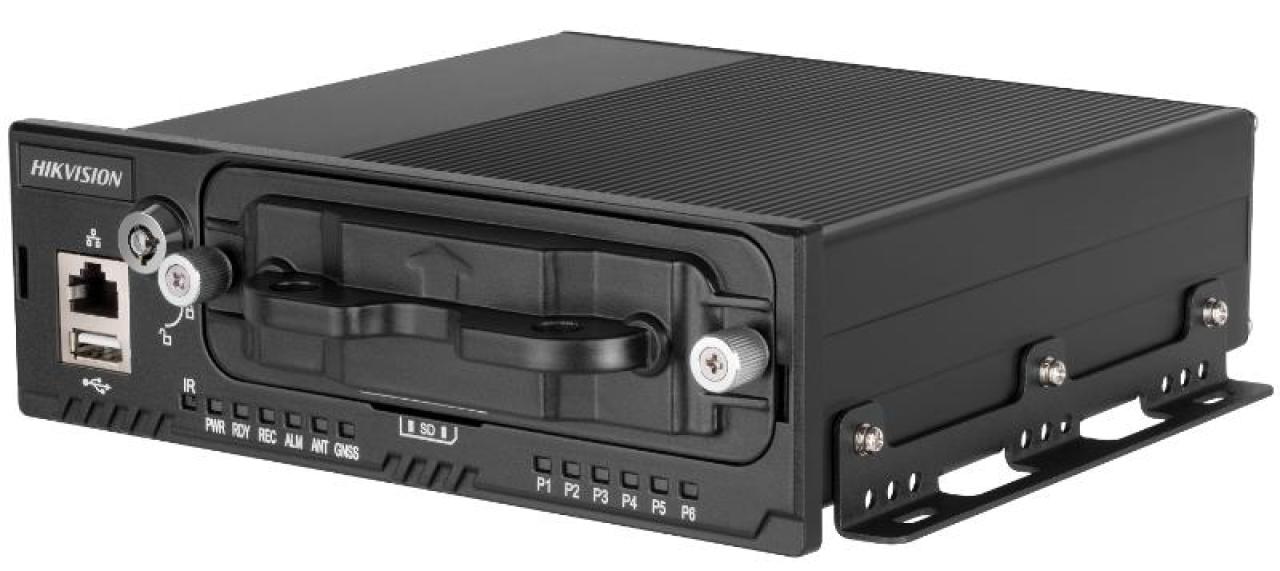

AE-MN5043(RJ45)

NEW

4-ch , H.264/H.265, 2 x HDD/SSD Mobile NVR

4-ch IP cameras connectable via PoE interfaces, and 4-ch IP cameras extendable via PoE switch.
Up to 5MP resolution of H.264/H.265 compression for each IP camera.( *Support this function since V5.6.4 )
Pluggable dummy HDD for HDD with up to 2 TB capacity.
User-friendly GUI providing easy and flexible operations.
Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
Build-in super-capacitor prevents the mobile NVR from damage caused by sudden power outage.
Wide-range power input (+9 VDC to +32 VDC).
Power-off protection prevents key data loss.
Aluminum die-cast chassis with no fan design well adaptable to working environment.
Software-based firewall supported.
Support accessing via WEB browser.
Support recording backup on redundant HDD/SSDs.

View Less

Available models:

AE-MN5043(1T)(RJ45)

Video/Audio Input
Two-way Audio4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.
IP Camera1, integrated in EXT.DEV interface

Video/Audio Output
Audio Output1, integrated in EXT.DEV interface
Video OutputMain output: 1, integrated in EXT.DEV interface. VGA: 1

Encoding/Decoding Parameters
Video CompressionH.265/H.264
Audio CompressionG.711a/G.711u/G.722.1/G.726
Audio Bit Rate16 Kbps
Stream TypeVideo, video & audio
Dual StreamSupported
Frame RatePAL: 1 to 25 fps; NTSC: 1 to 30 fps
Encoding ResolutionMain stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Wireless Network
Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)
3G/4G Dialing1 × 4G card slot, 1 × FAKRA antenna

Storage
SD Card Storage1 × SD card, up to 256 GB（not for baseline. Note the SD card capacity when ordering）
HDD/SDD2 × 2.5 inch SATA HDD/SSD, up to 2 TB for HDD, up to 4 TB for SSD

Auxiliary Interface
Network InterfaceFront panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M 6-pin aviation connector Note：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.
Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 button input
Alarm Output2 relay signal outputs
Sensor-in4 high/low level signal inputs
Serial Port1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)

Positioning
GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Sensor
G-SensorBuilt-in

General
Power Supply+9 to +32 VDC
Product Dimension206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37")
Power ConsumptionStandby: ≤ 0.5 W Full load: ≤ 45 W Note: Without peripheral and storage media ≤ 20 W
Operating Temperature-20°C to +60°C (-4°F to +140°F)
Operating Humidity10% to 95% (non-condensing)
Operation MethodMouse, IR remote control, Web control, and touchscreen
CertificationCE/FCC/Emark/EN50155/CB/EN45545/ROHS 2.0/ISO-7637-2
Weight (Without Storage Media)1.66 kg (3.67 lb.)

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021)
SafetyCB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 )
EnvironmentCE-RoHS (2011/65/EU and amendment 2015/863/EU)
Automotive and RailwayEN50155(EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020, EN50153:2014+A1:2017+A2:2020, BS EN ISO:13732-1:2008,ISO 13732-1:2006;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)

Specification

Video/Audio Input

Two-way Audio

4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.

IP Camera

1, integrated in EXT.DEV interface

Video/Audio Output

Audio Output

1, integrated in EXT.DEV interface

Video Output

Main output: 1, integrated in EXT.DEV interface. VGA: 1

Encoding/Decoding Parameters

Video Compression

H.265/H.264

Audio Compression

G.711a/G.711u/G.722.1/G.726

Audio Bit Rate

16 Kbps

Stream Type

Video, video & audio

Dual Stream

Supported

Frame Rate

PAL: 1 to 25 fps; NTSC: 1 to 30 fps

Encoding Resolution

Main stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Wireless Network

Wi-Fi

WI58 model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)

3G/4G Dialing

1 × 4G card slot, 1 × FAKRA antenna

Storage

SD Card Storage

1 × SD card, up to 256 GB（not for baseline. Note the SD card capacity when ordering）

HDD/SDD

2 × 2.5 inch SATA HDD/SSD, up to 2 TB for HDD, up to 4 TB for SSD

Auxiliary Interface

Network Interface

Front panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M 6-pin aviation connector Note：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.

Alarm Input

4 high/low level signal inputs, 1 pulse signal input, 1 button input

Alarm Output

2 relay signal outputs

Sensor-in

4 high/low level signal inputs

Serial Port

1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)

Positioning

GNSS (Global Navigation Satellite System)

GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Sensor

G-Sensor

Built-in

General

Power Supply

+9 to +32 VDC

Product Dimension

206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37")

Power Consumption

Standby: ≤ 0.5 W Full load: ≤ 45 W Note: Without peripheral and storage media ≤ 20 W

Operating Temperature

-20°C to +60°C (-4°F to +140°F)

Operating Humidity

10% to 95% (non-condensing)

Operation Method

Mouse, IR remote control, Web control, and touchscreen

Certification

CE/FCC/Emark/EN50155/CB/EN45545/ROHS 2.0/ISO-7637-2

Weight (Without Storage Media)

1.66 kg (3.67 lb.)

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021)

Safety

CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 )

Environment

CE-RoHS (2011/65/EU and amendment 2015/863/EU)

Automotive and Railway

EN50155(EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020, EN50153:2014+A1:2017+A2:2020, BS EN ISO:13732-1:2008,ISO 13732-1:2006;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)
