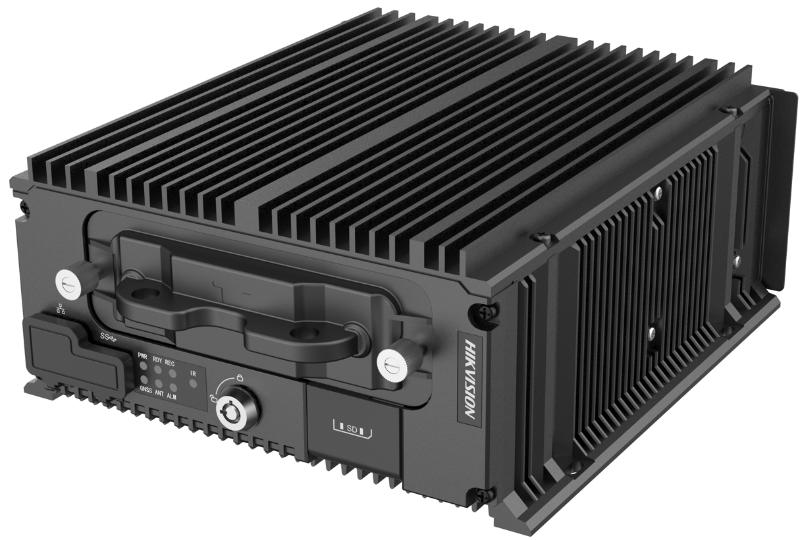

AE-MH0408(RJ45)

12-ch, H.264/H.265, 2 x HDD/SSD Mobile HDVR

8-ch IP cameras connectable via PoE interfaces, 4-channel analog HD camera access.
Up to 2MP resolution of H.264/H.265 compression for each IP camera.
Pluggable dummy HDD for HDD with up to 2 TB capacity.
User-friendly GUI providing easy and flexible operations.
Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
Build-in super-capacitor prevents the mobile NVR from damage caused by sudden power outage.
Wide-range power input (+9 VDC to +36 VDC).
Power-off protection prevents key data loss.
Aluminum die-cast chassis with no fan design well adaptable to working environment.
Software-based firewall supported.
Support accessing via WEB browser.
Support Driving Status Monitoring and Adcanced Driving Asistance System.
Support recording backup on redundant HDD/SSDs.
Support AI feature: ADAS, BSD-R and DSM.(Choose two out of three)

View Less

Available models:

AE-MH0408(1T)(RJ45)

Video/Audio Input
Two-way Audio1, integrated in EXT.DEV interface
IP Camera8-ch connected via PoE interfaces
Analog Camera4-ch HIK wiring sequence analog camera, Max. 1080P

Video/Audio Output
Audio Output1, integrated in EXT.DEV interface
Video OutputMain output: 1, integrated in EXT.DEV interface. VGA: 1

Encoding/Decoding Parameters
Video CompressionH.265,H.264
Audio CompressionG.711a/G.711u/G.722.1/G.726
Audio Bit Rate16 Kbps to 64Kbps
Stream TypeVideo, video & audio
Dual StreamSupported
Frame RatePAL: 1 to 25 fps; NTSC: 1 to 30 fps
Encoding ResolutionMain stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Wireless Network
Dial-up1 × 4G card slot, 1 ×FAKRA antenna 5G module(optional)

Storage
SD Card Storage1 × SD card, up to 256 GB（not for baseline. Note the SD card capacity when ordering）
HDD/SDD2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD HDD/SSD data can be exported locally via this converter (optional) (A dummy HDD with 2 HDD/SSDs can be extended; Not for baseline. Note the SD card capacity when ordering)

Auxiliary Interface
Network InterfaceFront panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M RJ45 Note：The front and rear network ports are at same network segments
Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
Alarm Output2 relay signal outputs
Wi-Fi Antenna InterfaceWI2.4G model: 1 × 2.4 G Wi-Fi SMA antenna, WI5.8G model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)
Sensor-in4 high/low level signal inputs
Serial Number Interface2 × RS-232(harness is optional). 1 × RS-485. 1 × RS-485 (integrated in EXT.DEV interface)
USB InterfaceFront panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector)
CAN Interface2

Positioning
GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Sensor
G-SensorBuilt-in

General
Product Dimension202 mm × 267.6 mm × 93.9 mm (7.95" × 10.54" × 3.7")
Power Supply+9 to +36 VDC
Power ConsumptionStandby: ≤ 0.5 W Full load: ≤ 75 W Note: Without peripheral and storage media ≤ 20 W
Operating Temperature-20°C to +60°C (-4°F to +140°F)
Operating Humidity10% to 95% (non-condensing)
Operation MethodMouse, IR remote control, Web control, and display screen
Weight (Without Storage Media)3.31 kg (7.3 lb.)

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021)
SafetyCB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 )
EnvironmentCE-RoHS (2011/65/EU and amendment 2015/863/EU)
Automotive and RailwayEN50155(EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020; EN50153:2014+A1:2017+A2:2020; EN ISO:13732-1:2008;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)

Specification

Video/Audio Input

Two-way Audio

1, integrated in EXT.DEV interface

IP Camera

8-ch connected via PoE interfaces

Analog Camera

4-ch HIK wiring sequence analog camera, Max. 1080P

Video/Audio Output

Audio Output

1, integrated in EXT.DEV interface

Video Output

Main output: 1, integrated in EXT.DEV interface. VGA: 1

Encoding/Decoding Parameters

Video Compression

H.265,H.264

Audio Compression

G.711a/G.711u/G.722.1/G.726

Audio Bit Rate

16 Kbps to 64Kbps

Stream Type

Video, video & audio

Dual Stream

Supported

Frame Rate

PAL: 1 to 25 fps; NTSC: 1 to 30 fps

Encoding Resolution

Main stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Wireless Network

Dial-up

1 × 4G card slot, 1 ×FAKRA antenna 5G module(optional)

Storage

SD Card Storage

1 × SD card, up to 256 GB（not for baseline. Note the SD card capacity when ordering）

HDD/SDD

2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD HDD/SSD data can be exported locally via this converter (optional) (A dummy HDD with 2 HDD/SSDs can be extended; Not for baseline. Note the SD card capacity when ordering)

Auxiliary Interface

Network Interface

Front panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M RJ45 Note：The front and rear network ports are at same network segments

Alarm Input

4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input

Alarm Output

2 relay signal outputs

Wi-Fi Antenna Interface

WI2.4G model: 1 × 2.4 G Wi-Fi SMA antenna, WI5.8G model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)

Sensor-in

4 high/low level signal inputs

Serial Number Interface

2 × RS-232(harness is optional). 1 × RS-485. 1 × RS-485 (integrated in EXT.DEV interface)

USB Interface

Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector)

CAN Interface

Positioning

GNSS (Global Navigation Satellite System)

GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Sensor

G-Sensor

Built-in

General

Product Dimension

202 mm × 267.6 mm × 93.9 mm (7.95" × 10.54" × 3.7")

Power Supply

+9 to +36 VDC

Power Consumption

Standby: ≤ 0.5 W Full load: ≤ 75 W Note: Without peripheral and storage media ≤ 20 W

Operating Temperature

-20°C to +60°C (-4°F to +140°F)

Operating Humidity

10% to 95% (non-condensing)

Operation Method

Mouse, IR remote control, Web control, and display screen

Weight (Without Storage Media)

3.31 kg (7.3 lb.)

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021)

Safety

CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 )

Environment

CE-RoHS (2011/65/EU and amendment 2015/863/EU)

Automotive and Railway

EN50155(EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020; EN50153:2014+A1:2017+A2:2020; EN ISO:13732-1:2008;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)
