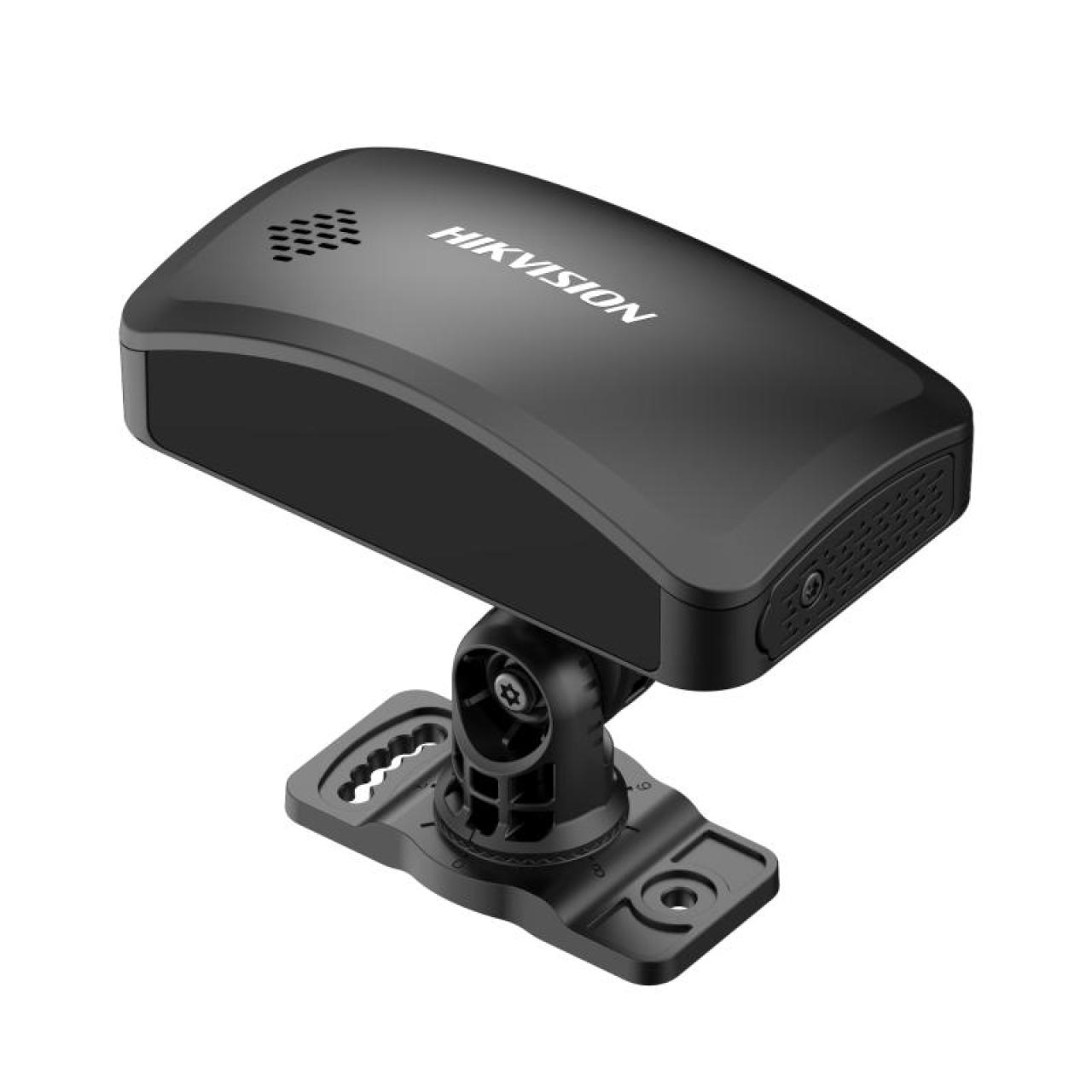

DSM camera

  • Multi-specific driving status monitoring
  • 3MP image sensor guaranteed excellent performance
  • Built-in speaker
  • 940 nm supplement light, not causing disturbance for driving
  • Typical application: A-pillar side mounting, windshield installation, vertical table mounting
  • Support Driver Identification
View Less
View more
Sales Inquiry

Available models:

AE-VC3B2I-ISF(RJ45)(6mm)
AE-VC3B2I-ISF(M12)(6mm)
View more View Less
AE-VC3B2I-ISF

Specification

  • Camera
  • Min. Illumination0.00 Lux@(F1.2, AGC ON)
  • Image Sensor1/2.5" CMOS Progressive Scan
  • Day & NightOnly support night mode
  • Angle AdjustmentCamera adjustment angle: -72°~90° Middle bracket adjustment angle: -54°~54° Bottom bracket adjustment angle: 360°
  • Lens
  • FocusManual focus
  • Max. ApertureF2.1
  • Focal Length & FOV6 mm: horizontal FOV 54°, vertical FOV 45°，diagonal FOV 74°
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeInfrared fill light (no red glow)
  • IR Wavelength940nm
  • IR RangeUp to 10m
  • Video
  • Max. Resolution1920 × 1620
  • Main Stream50Hz:25fps（1920x1620，1920x1080, 1280 x 960, 1280x720） 60Hz:30fps（1920x1620，1920x1080, 1280 x 960, 1280x720）
  • Sub-Stream50Hz:25fps（704x576,640x480, 352x288,320x240） 60Hz:30fps（704x576,640x480, 352x288,320x240）
  • Third Stream50Hz:25fps（1920x1080, 1280 x 960, 1280x720） 60Hz:30fps（1920x1080, 1280 x 960, 1280x720）
  • Video Compression Main Stream: H.264 , H.265,H.264+, H.265+ Sub-Stream: H.264 , H.265 , MJPEG ,H.264+, H.265+ Third Stream: H.264 , H.265,H.264+, H.265+
  • Video Bit RateMain Stream: 256kbps to 12288kbps Sub-Stream: 256kbps to 4096kbps Third Stream: 256kbps to 12288kbps
  • H.264 TypeBaseLine Profile / Main Profile / High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlConstant Bit Rate, Variable Bit Rate
  • Audio
  • Audio Compression G711U，G711A，G726，AAC，G722，PCM
  • Audio Bit Rate64Kbps(G.711U)/64Kbps(G.711A)/16Kbps(G.726)/16Kbps(AAC)
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS,RTP, RTSP, NTP
  • Simultaneous Live ViewUp to 8 channels
  • APIHIK SDK, ONVIF (PROFILE S/G/T), ISAPI
  • User ManagementUp to 16 users, 3 levels: Administrator, Operator and User
  • Web BrowserIE8+, Chrome45+, Edge41+, Firefox45+
  • Image
  • Day/Night SwitchNight only
  • Interface
  • Ethernet Interface-RJ45: RJ45 + Molex Cable + I/O out -M12: M12 Aviation Plug + Molex Cable + I/O out
  • AudioAudio Input: Built-in Mic Audio Output: Built-in Speaker
  • TF Card StorageBuilt-in Micro SD Slot, storage capacity up to 1 TB
  • Event
  • Smart EventDistraction Prompt Detection, Fatigue Driving (Closing Eyes) Detection, Fatigue Driving (Yawn) Detection, IR Interrupting Sunglasses Detection, Smoking Detection, Phone call Detection, Seatbelt Unbuckled Detection, Driver Exception Detection,Driver Identification
  • General
  • Product Dimension108 mm × 64 mm × 97.8 mm (4.3" × 2.5" × 3.9")
  • Power ConsumptionDC: 0.88 A to 0.22 A,, max: 8W POE: 0.25 A to 0.15 A, max: 9W
  • Camera MaterialMetal
  • Product WeightApprox. 308 g (0.68 lbs.)
  • Startup and Operating Conditions-30°C to 75°C (-22°F to 167°F), humidity 90% or less (non-condensing)
  • Power SupplyDC 9-36 V PoE (802.3af, 36 V to 57 V)
  • Cable Length50 cm
  • Approval
  • EMCCE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013）
  • SafetyCE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
  • EnvironmentCE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
  • Automotive and RailwayE-MARK (ECE R10)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Min. Illumination
0.00 Lux@(F1.2, AGC ON)
Image Sensor
1/2.5" CMOS Progressive Scan
Day & Night
Only support night mode
Angle Adjustment
Camera adjustment angle: -72°~90° Middle bracket adjustment angle: -54°~54° Bottom bracket adjustment angle: 360°
Lens
Focus
Manual focus
Max. Aperture
F2.1
Focal Length & FOV
6 mm: horizontal FOV 54°, vertical FOV 45°，diagonal FOV 74°
Lens Mount
M12
Illuminator
Supplement Light Type
Infrared fill light (no red glow)
IR Wavelength
940nm
IR Range
Up to 10m
Video
Max. Resolution
1920 × 1620
Main Stream
50Hz:25fps（1920x1620，1920x1080, 1280 x 960, 1280x720） 60Hz:30fps（1920x1620，1920x1080, 1280 x 960, 1280x720）
Sub-Stream
50Hz:25fps（704x576,640x480, 352x288,320x240） 60Hz:30fps（704x576,640x480, 352x288,320x240）
Third Stream
50Hz:25fps（1920x1080, 1280 x 960, 1280x720） 60Hz:30fps（1920x1080, 1280 x 960, 1280x720）
Video Compression
Main Stream: H.264 , H.265,H.264+, H.265+ Sub-Stream: H.264 , H.265 , MJPEG ,H.264+, H.265+ Third Stream: H.264 , H.265,H.264+, H.265+
Video Bit Rate
Main Stream: 256kbps to 12288kbps Sub-Stream: 256kbps to 4096kbps Third Stream: 256kbps to 12288kbps
H.264 Type
BaseLine Profile / Main Profile / High Profile
H.265 Type
Main Profile
Bit Rate Control
Constant Bit Rate, Variable Bit Rate
Audio
Audio Compression
G711U，G711A，G726，AAC，G722，PCM
Audio Bit Rate
64Kbps(G.711U)/64Kbps(G.711A)/16Kbps(G.726)/16Kbps(AAC)
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS,RTP, RTSP, NTP
Simultaneous Live View
Up to 8 channels
API
HIK SDK, ONVIF (PROFILE S/G/T), ISAPI
User Management
Up to 16 users, 3 levels: Administrator, Operator and User
Web Browser
IE8+, Chrome45+, Edge41+, Firefox45+
Day/Night Switch
Night only
Interface
Ethernet Interface
-RJ45: RJ45 + Molex Cable + I/O out -M12: M12 Aviation Plug + Molex Cable + I/O out
Audio
Audio Input: Built-in Mic Audio Output: Built-in Speaker
TF Card Storage
Built-in Micro SD Slot, storage capacity up to 1 TB
Event
Smart Event
Distraction Prompt Detection, Fatigue Driving (Closing Eyes) Detection, Fatigue Driving (Yawn) Detection, IR Interrupting Sunglasses Detection, Smoking Detection, Phone call Detection, Seatbelt Unbuckled Detection, Driver Exception Detection,Driver Identification
General
Product Dimension
108 mm × 64 mm × 97.8 mm (4.3" × 2.5" × 3.9")
Power Consumption
DC: 0.88 A to 0.22 A,, max: 8W POE: 0.25 A to 0.15 A, max: 9W
Camera Material
Metal
Product Weight
Approx. 308 g (0.68 lbs.)
Startup and Operating Conditions
-30°C to 75°C (-22°F to 167°F), humidity 90% or less (non-condensing)
Power Supply
DC 9-36 V PoE (802.3af, 36 V to 57 V)
Cable Length
50 cm
Approval
EMC
CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013）
Safety
CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
Environment
CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
Automotive and Railway
E-MARK (ECE R10)
