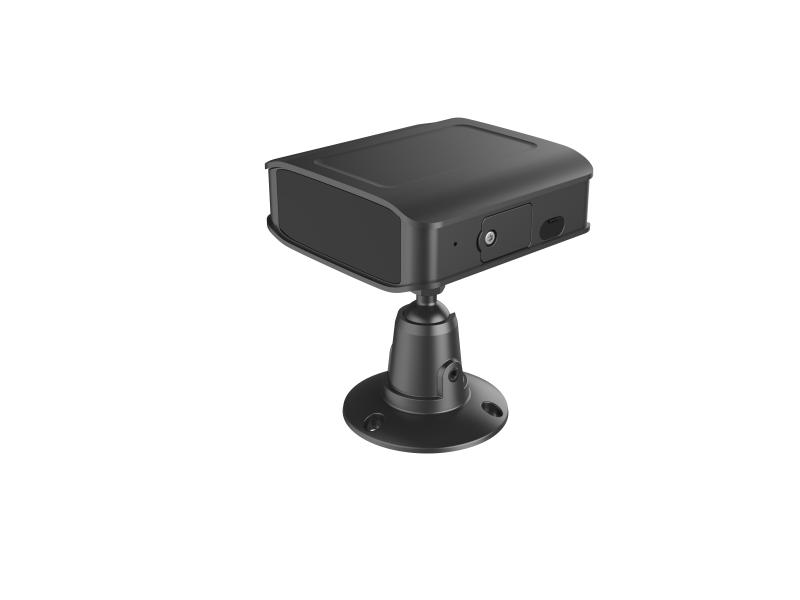

AE-VC1B11-ISF

DSM camera

6 Specific Driver Behavior Analysis
1/4″ high-speed global shutter image sensor guaranteed excellent performance
Built-in loudspeaker
DC 9-36 V
Support customized facial comparison to compare the authorized list of drivers(customizable)
940 nm supplement light, not causing disturbance for driving

View Less

Available models:

AE-VC1B1I-ISF(RJ45)(6mm)

AE-VC1B1I-ISF(M12)(6mm)

Camera
Image Sensor1/4 " high-speed global shutter image sensor
Day & NightOnly support night mode
Angle AdjustmentLeft and Right: -43°~43°; Front and Back: -43°~67°; Horizontal: 0°~360°

Lens
Focal Length & FOV6 mm: horizontal FOV 54°, vertical FOV 31°，diagonal FOV 62°
Lens MountM12

Illuminator
Supplement Light TypeInfrared fill light (no red glow)
IR Wavelength940nm
IR RangeUp to 10m

Video
Max. Resolution1280*720
Main Stream60Hz: 30fps (1280 × 720)
Sub-Stream60Hz: 30fps (704×576,640×480,352×288,320×240)
Third Stream60Hz: 30fps (1280 × 720)
Video Compression Main Stream：H.264 ，H.265 Sub-Stream：H.264 ，H.265 ，MJPEG Third Stream：H.264 ，H.265
Video Bit RateMain Stream：256kbps-8192kbps Sub-Stream：256kbps-4096kbps Third Stream：256kbps-4096kbps
H.264 TypeBaseLine Profile / Main Profile / High Profile
H.265 TypeMain Profile
Bit Rate ControlConstant Bit Rate, Variable Bit Rate

Audio
Audio Compression G711U，G711A，G726，AAC，G722，PCM
Audio Bit Rate64Kbps(G.711U)/64Kbps(G.711A)/16Kbps(G.726)/16Kbps(AAC)

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS,RTP, RTSP, RTCP, NTP
Simultaneous Live ViewUp to 8 channels
APIHIK SDK,ONVIF (PROFILE S/G/T), ISAPI
User/HostUp to 16 users,3 levels: Administrator, Operator and User
Web BrowserIE8+,Chrome45+,Edge41+,Firefox45+

Day/Night SwitchNight only

Interface
Ethernet Interface-RJ45，RJ45+DC Cable -M12，M12 Aviation Plug + Molex Cable
On-Board StorageMicroSD
AudioAudio Input: Built-in Mic Audio Output: Built-in Speaker

Event
Smart EventDistraction Prompt Detection, Fatigue Driving (Closing Eyes), IR Interrupting Sunglasses Detection, Tampering Detection, Seatbelt Unbuckled Detection, Fatigue Driving (Yawn) Detection, Driver Exception Detection, Tampering Detection

General
Camera DimensionCamera: 91.5× 91.5 × 107.9 mm (3.6″ × 3.6″ × 4.25″)
Camera WeightApprox.405g (0.893 lbs.)
Startup and Operating Conditions-30 °C to 75°C (-22 °F to 167°F), humidity less than 90% or less (non-condensing)
Power Consumption and CurrentDC: 0.19-0.78A，7W MAX
Power SupplyDC9-36V
Cable Length50cm

Specification

Camera

Image Sensor

1/4 " high-speed global shutter image sensor

Day & Night

Only support night mode

Angle Adjustment

Left and Right: -43°~43°; Front and Back: -43°~67°; Horizontal: 0°~360°

Lens

Focal Length & FOV

6 mm: horizontal FOV 54°, vertical FOV 31°，diagonal FOV 62°

Lens Mount

M12

Illuminator

Supplement Light Type

Infrared fill light (no red glow)

IR Wavelength

940nm

IR Range

Up to 10m

Video

Max. Resolution

1280*720

Main Stream

60Hz: 30fps (1280 × 720)

Sub-Stream

60Hz: 30fps (704×576,640×480,352×288,320×240)

Third Stream

60Hz: 30fps (1280 × 720)

Video Compression

Main Stream：H.264 ，H.265 Sub-Stream：H.264 ，H.265 ，MJPEG Third Stream：H.264 ，H.265

Video Bit Rate

Main Stream：256kbps-8192kbps Sub-Stream：256kbps-4096kbps Third Stream：256kbps-4096kbps

H.264 Type

BaseLine Profile / Main Profile / High Profile

H.265 Type

Main Profile

Bit Rate Control

Constant Bit Rate, Variable Bit Rate

Audio

Audio Compression

G711U，G711A，G726，AAC，G722，PCM

Audio Bit Rate

64Kbps(G.711U)/64Kbps(G.711A)/16Kbps(G.726)/16Kbps(AAC)

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS,RTP, RTSP, RTCP, NTP

Simultaneous Live View

Up to 8 channels

API

HIK SDK,ONVIF (PROFILE S/G/T), ISAPI

User/Host

Up to 16 users,3 levels: Administrator, Operator and User

Web Browser

IE8+,Chrome45+,Edge41+,Firefox45+


Day/Night Switch

Night only

Interface

Ethernet Interface

-RJ45，RJ45+DC Cable -M12，M12 Aviation Plug + Molex Cable

On-Board Storage

MicroSD

Audio

Audio Input: Built-in Mic Audio Output: Built-in Speaker

Event

Smart Event

Distraction Prompt Detection, Fatigue Driving (Closing Eyes), IR Interrupting Sunglasses Detection, Tampering Detection, Seatbelt Unbuckled Detection, Fatigue Driving (Yawn) Detection, Driver Exception Detection, Tampering Detection

General

Camera Dimension

Camera: 91.5× 91.5 × 107.9 mm (3.6″ × 3.6″ × 4.25″)

Camera Weight

Approx.405g (0.893 lbs.)

Startup and Operating Conditions

-30 °C to 75°C (-22 °F to 167°F), humidity less than 90% or less (non-condensing)

Power Consumption and Current

DC: 0.19-0.78A，7W MAX

Power Supply

DC9-36V

Cable Length

50cm
