*Images are for illustrative purposes. Actual product appearance and specifications may vary.
add compare icon

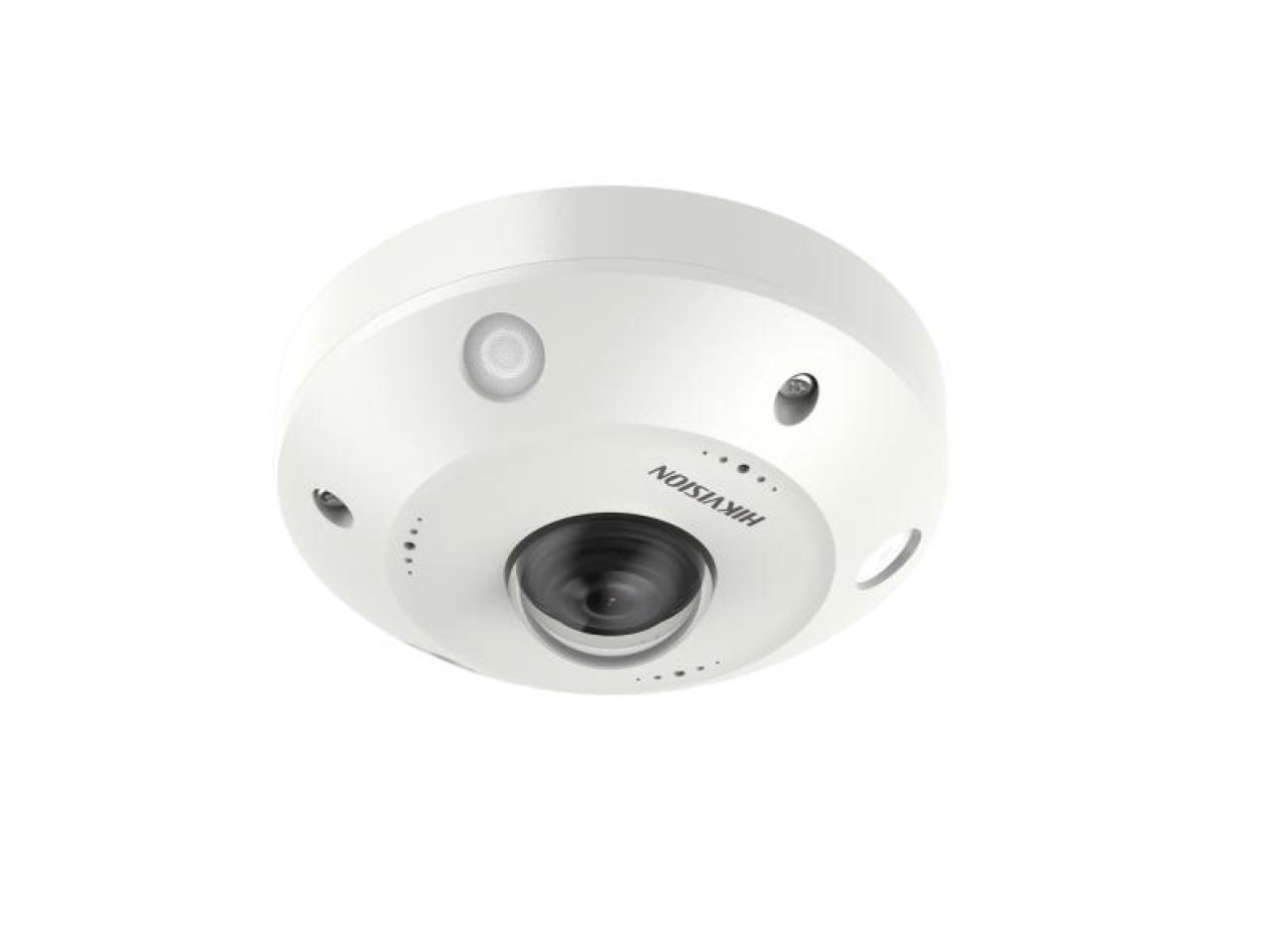

Mobile Fisheye Network Camera

  • High quality imaging with 12 MP resolution
  • Built-in microphone for real-time audio security
  • Clear imaging against strong back light due to digital WDR technology
  • Smart features 11 abnormal detection, and 1 exception detections
  • Up to 10 m IR range
View Less
View more
Sales Inquiry

Available models:

DS-2XM63C5G1-IVS(2mm)
DS-2XM63C5G1-IVM/ND(2mm)
DS-2XM63C5G1-IVM(2mm)
View more View Less
DS-2XM63C5G1-IV(S)(M)(/ND)

Specification

  • Camera
  • Max. Resolution3504 × 3504
  • Shutter Speed1/25 s to 1/100,000 s
  • Day & NightIR Cut Filter
  • Lens
  • Focal Length & FOV2 mm, horizontal FOV 180° (wall mount), 360°(ceiling mount)
  • Lens MountM12
  • Max. ApertureF2.4
  • Illuminator
  • Supplement Light TypeIR, 3 LEDs. Each LED is independently controlled.
  • IR Wavelength940nm
  • IR RangeUp to 10m
  • Video
  • Main Stream50Hz: 25fps (4000 × 3000,3504 × 3504,3024 × 3024,2560 × 2560,2048 × 2048) 60Hz:30fps (4000 × 3000,3504 × 3504,3024 × 3024,2560 × 2560,2048 × 2048)
  • Sub-Stream50Hz: 25fps (720 × 720,480 × 480) 60Hz: 30fps (720 × 720,480 × 480)
  • Video Compression Main stream: H.264, H.265, Smart264, Smart265 Sub-stream: H.264, H.265, Smart264, Smart265,MJPEG
  • Video Bit Rate256 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlConstant Bit Rate, Variable Bit Rate
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)Support 4 fixed region for (main/sub) stream
  • Audio
  • Audio Compression G711U, G711A, G726_A,G722.1, PCM, AAC
  • Audio Bit RateG711U, G711A, G726_A, AAC,G722.1,PCM:≤64kbps
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewUp to 8 channels
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • User ManagementUp to 16users, 3 levels: Administrator, Operator and User
  • Web BrowserChrome45+, Edge41+, Firefox45+
  • Image
  • Wide Dynamic Range (WDR)120 dB
  • Image SettingsSupport rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Image EnhancementBLC, HLC, 2DNR ,3DNR
  • Privacy MaskEnables configuration, and supports drawing of up to 4 areas
  • Picture OverlaySupport image overlay, uploading images, enabling, coordinates, etc.
  • Backlight Compensation(BLC)Support up, down, left, right, center and custom backlight compensation adjustment
  • Interface
  • Alarm -S: 1-ch alarm input, max. 12 VDC; 1-ch alarm output, max 12 VDC, 30 mA
  • Ethernet InterfaceWithout –M: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port With -M: four-core M12 aviation plug
  • Audio2 Built-in microphones
  • Reset KeySupport
  • TF Card StorageBuilt-in Micro SD Slot, storage capacity up to 512 GB
  • DORI
  • DORID: 43.2 m O: 17.1 m R: 8.64 m I: 4.32 m
  • Fisheye Display
  • Mount Type Support table, wall, and ceiling mounting
  • Decoding ModeSupport hardware decoding and software decoding
  • Display ModeSoftware decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, hemisphere, AR hemisphere,cylinder unfolding Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ,4PTZ integration Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ,4PTZ integration
  • Event
  • Linkage MethodUpload to FTP, notify monitoring center, send email, trigger recording
  • Basic Event Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
  • Smart EventAudio Exception Detection Scene Change Detection Intrusion Detection Line Crossing Detection Region Entrance Detection Region Exiting Detection Loitering Detection People Gathering Detection Fast Moving Detection Parking Detection Unattended Baggage Detection Object Removal Detection
  • General
  • Product Dimension Ø136 × 61.8 mm (Ø5.35" × 2.43")
  • Power24 VDC, 0.40 A, max. 12 W, two-core terminal block PoE: 802.3af, 36 to 57 VDC, 0.34 A to 0.22 A, max. 12 W /ND: no power interface, only support PoE power supply
  • Product WeightApprox. 610 g (1.35 lb.)
  • Startup and Operating Conditions-30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
  • LanguageEnglish, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
  • General FunctionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Approval
  • EMCCE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013） RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015IC: ICES-003 Issue 7:2020
  • SafetyCB: IEC 60950-1CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
  • EnvironmentCE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
  • Electrical Safety ProtectionIK10(IEC 62262:2002)
  • Automotive and RailwayEN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Max. Resolution
3504 × 3504
Shutter Speed
1/25 s to 1/100,000 s
Day & Night
IR Cut Filter
Lens
Focal Length & FOV
2 mm, horizontal FOV 180° (wall mount), 360°(ceiling mount)
Lens Mount
M12
Max. Aperture
F2.4
Illuminator
Supplement Light Type
IR, 3 LEDs. Each LED is independently controlled.
IR Wavelength
940nm
IR Range
Up to 10m
Video
Main Stream
50Hz: 25fps (4000 × 3000,3504 × 3504,3024 × 3024,2560 × 2560,2048 × 2048) 60Hz:30fps (4000 × 3000,3504 × 3504,3024 × 3024,2560 × 2560,2048 × 2048)
Sub-Stream
50Hz: 25fps (720 × 720,480 × 480) 60Hz: 30fps (720 × 720,480 × 480)
Video Compression
Main stream: H.264, H.265, Smart264, Smart265 Sub-stream: H.264, H.265, Smart264, Smart265,MJPEG
Video Bit Rate
256 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
Constant Bit Rate, Variable Bit Rate
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
Support 4 fixed region for (main/sub) stream
Audio
Audio Compression
G711U, G711A, G726_A,G722.1, PCM, AAC
Audio Bit Rate
G711U, G711A, G726_A, AAC,G722.1,PCM:≤64kbps
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View
Up to 8 channels
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User Management
Up to 16users, 3 levels: Administrator, Operator and User
Web Browser
Chrome45+, Edge41+, Firefox45+
Wide Dynamic Range (WDR)
120 dB
Image Settings
Support rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
Day/Night Switch
Day/Night/Auto/Schedule
Image Enhancement
BLC, HLC, 2DNR ,3DNR
Privacy Mask
Enables configuration, and supports drawing of up to 4 areas
Picture Overlay
Support image overlay, uploading images, enabling, coordinates, etc.
Backlight Compensation(BLC)
Support up, down, left, right, center and custom backlight compensation adjustment
Interface
Alarm
-S: 1-ch alarm input, max. 12 VDC; 1-ch alarm output, max 12 VDC, 30 mA
Ethernet Interface
Without –M: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port With -M: four-core M12 aviation plug
Audio
2 Built-in microphones
Reset Key
Support
TF Card Storage
Built-in Micro SD Slot, storage capacity up to 512 GB
DORI
DORI
D: 43.2 m O: 17.1 m R: 8.64 m I: 4.32 m
Fisheye Display
Mount Type
Support table, wall, and ceiling mounting
Decoding Mode
Support hardware decoding and software decoding
Display Mode
Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, hemisphere, AR hemisphere,cylinder unfolding Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ,4PTZ integration Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ,4PTZ integration
Event
Linkage Method
Upload to FTP, notify monitoring center, send email, trigger recording
Basic Event
Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
Smart Event
Audio Exception Detection Scene Change Detection Intrusion Detection Line Crossing Detection Region Entrance Detection Region Exiting Detection Loitering Detection People Gathering Detection Fast Moving Detection Parking Detection Unattended Baggage Detection Object Removal Detection
General
Product Dimension
Ø136 × 61.8 mm (Ø5.35" × 2.43")
Power
24 VDC, 0.40 A, max. 12 W, two-core terminal block PoE: 802.3af, 36 to 57 VDC, 0.34 A to 0.22 A, max. 12 W /ND: no power interface, only support PoE power supply
Product Weight
Approx. 610 g (1.35 lb.)
Startup and Operating Conditions
-30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
Language
English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
General Function
One-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
Approval
EMC
CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013） RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015IC: ICES-003 Issue 7:2020
Safety
CB: IEC 60950-1CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
Environment
CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
Electrical Safety Protection
IK10(IEC 62262:2002)
Automotive and Railway
EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
