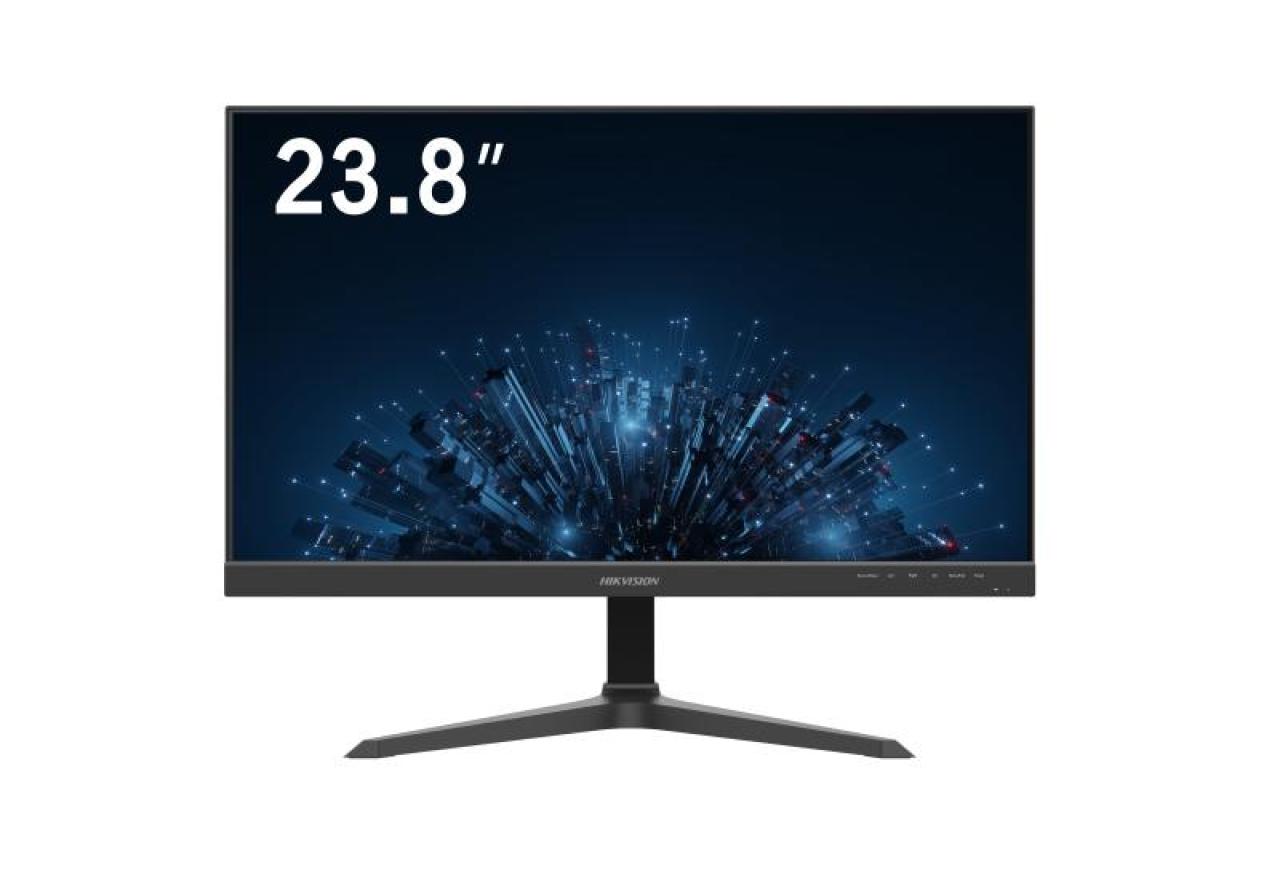

*Images are for illustrative purposes. Actual product appearance and specifications may vary.

DS-D5224F3-1V0SV/D(O-STD)(EU)

Name: DS-D5224F3-1V0SV/D(O-STD)(EU)
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Resolution 1920 × 1080 (16:9 aspect ratio)
Support H.265、H.264、MPEG4、MJPEG video codec
Support PS, RTP (H.265, H.264, MJPEG, MPEG2-TS)
Maximum 16 Simultaneous Display Channels,1920 × 1080 / 30 fps
1-screen layout support max. 32MP
Support local UI, Web UI, PC less connection
Support ONVIF, RTSP camera protocol

View Less

Data Sheet

Available models:

DS-D5224F3-1V0SV/D

View more View Less

DS-D5224F3-1V0SV/D

Specification
Resources
Accessories

Data Sheet

Video Decoding
Video Decoding FormatH.264，H.265，Smart264，Smart265，MJPEG
Decoding ResolutionMax. 32 MP
Video Decoding Channel16
Video Decoding CapabilitySupports 16 channels, 1080P@30Hz
Screen Split Quantity1,4,6,8,9,16
Scene Quantity4
Contingency Plan Quantity1
Audio DecodingSupported

Display
Screen Size23.8 inch
Active Display Area527.04 (H) mm × 296.46 (V) mm
Resolution1920 × 1080
BacklightE-LED
Pixel Pitch0.2745 (H) mm × 0.2745 (V) mm
Brightness300 cd/㎡
Viewing Angle178°(H)/178°(V)
Color Depth8 bit
Contrast Ratio4000：1
Response Time7 ms (typ)
Refresh Rate60 Hz
Surface TreatmentHaze 25% , 3H
Reliability7 × 24h
Color Gamut72% NTSC

Interface
Video & Audio InputHDMI × 1, 1080X720@100Hz
Video & Audio OutputAudio out × 1
Data Transmission InterfaceUSB2.0 × 2
Network Interface1 × 1000Base-T/100Base-TX/10Base-T adaptive Ethernet (RJ-45)
Control InterfaceUART × 1

Power
Power SupplyDC 12V, 2.5A
Power Consumption≤ 30 W
Standby Consumption≤ 0.5 W

Working Environment
Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity20% to 80% RH (Non-Condensing)
Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity10% to 90% RH (Non-Condensing)

General
Casing MaterialPlastic
VESA75 mm × 75 mm, （4-M4 × 6mm）
Bezel Width2 mm (top/left/right), 23.55 mm (bottom)
Product Dimensions (W × H × D)With base: 539.7 (W) mm × 423.16 (H) mm × 196 (D) mm (21.25'' × 16.66'' × 7.72'') Without base: 539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm (21.25'' × 12.89'' × 1.71'')
Package Dimensions (W × H × D)611 (W) mm × 405 (H) mm × 118 (D) mm (24.06'' × 15.94'' × 4.65'')
Net Weight2.62 ± 0.5 kg (5.78 ± 1.1 lb.)
Gross Weight3.82 ± 0.5 kg (8.42 ± 1.1 lb.)
Packing ListMonitor ×1, base assembly ×1, base screw (hex socket) ×1, hex wrench ×1, adapter (12V 3A) ×1, mouse (1.5m) ×1, HDMI cable (1.5m) ×1, user manual ×1, multilingual manual ×1
SpeakerSpeaker × 2 (4Ω , 2W)
Remarks*The base is included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.

Video Decoding

Video Decoding Format

H.264，H.265，Smart264，Smart265，MJPEG

Decoding Resolution

Max. 32 MP

Video Decoding Channel

Video Decoding Capability

Supports 16 channels, 1080P@30Hz

Screen Split Quantity

1,4,6,8,9,16

Scene Quantity

Contingency Plan Quantity

Audio Decoding

Supported

Display

Screen Size

23.8 inch

Active Display Area

527.04 (H) mm × 296.46 (V) mm

Resolution

1920 × 1080

Backlight

E-LED

Pixel Pitch

0.2745 (H) mm × 0.2745 (V) mm

Brightness

300 cd/㎡

Viewing Angle

178°(H)/178°(V)

Color Depth

8 bit

Contrast Ratio

4000：1

Response Time

7 ms (typ)

Refresh Rate

60 Hz

Surface Treatment

Haze 25% , 3H

Reliability

7 × 24h

Color Gamut

72% NTSC

Interface

Video & Audio Input

HDMI × 1, 1080X720@100Hz

Video & Audio Output

Audio out × 1

Data Transmission Interface

USB2.0 × 2

Network Interface

1 × 1000Base-T/100Base-TX/10Base-T adaptive Ethernet (RJ-45)

Control Interface

UART × 1

Power

Power Supply

DC 12V, 2.5A

Power Consumption

≤ 30 W

Standby Consumption

≤ 0.5 W

Working Environment

Working Temperature

0 ℃ to 40 ℃ (32 ℉ to 104 ℉)

Working Humidity

20% to 80% RH (Non-Condensing)

Storage Temperature

-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)

Storage Humidity

10% to 90% RH (Non-Condensing)

General

Casing Material

Plastic

VESA

75 mm × 75 mm, （4-M4 × 6mm）

Bezel Width

2 mm (top/left/right), 23.55 mm (bottom)

Product Dimensions (W × H × D)

With base: 539.7 (W) mm × 423.16 (H) mm × 196 (D) mm (21.25'' × 16.66'' × 7.72'') Without base: 539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm (21.25'' × 12.89'' × 1.71'')

Package Dimensions (W × H × D)

611 (W) mm × 405 (H) mm × 118 (D) mm (24.06'' × 15.94'' × 4.65'')

Net Weight

2.62 ± 0.5 kg (5.78 ± 1.1 lb.)

Gross Weight

3.82 ± 0.5 kg (8.42 ± 1.1 lb.)

Packing List

Monitor ×1, base assembly ×1, base screw (hex socket) ×1, hex wrench ×1, adapter (12V 3A) ×1, mouse (1.5m) ×1, HDMI cable (1.5m) ×1, user manual ×1, multilingual manual ×1

Speaker

Speaker × 2 (4Ω , 2W)

Remarks

*The base is included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.
