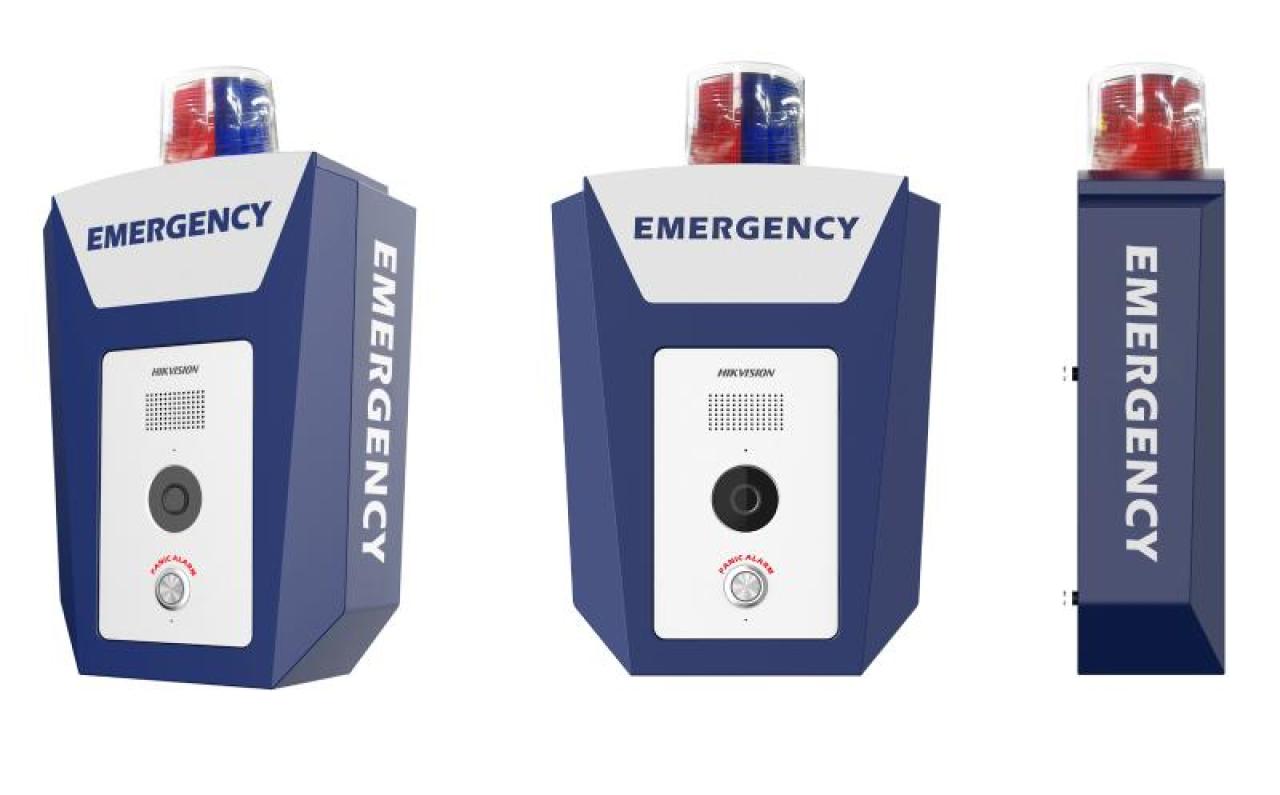

Panic alarm box

  • One-touch emergency calling
  • High quality imaging with 4 MP bulit-in camera
  • Real-time security via sound and voice detection
  • Supports broadcasting
  • Supports dual net ports
  • Built-in SD slot supports MicroSD / SDHC / SDXC cards up to 256 GB
  • Supports siren and audio expansion
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KEB801X-C
View more View Less
DS-KEB801X-C
Data Sheet

Specification

  • Software features
  • Tamper-ProofTamper alarm
  • Intercom1-ch built-in omnidirectional microphone, pickup distance: 5 m
  • ProtocolTCP/IP, RTSP, SNMP, HIK-SIP, Standard SIP, ONVIF
  • Hardware features
  • Alarm input2
  • Alarm output2
  • Siren1, sound can be configured separately
  • Lamp1, light can be configured separately
  • Netowrk interface2RJ45,10 M/100 M self-adaptive
  • Audio interface1-ch built-in omnidirectional microphone, pickup distance: 5 m 1-ch 3.5 mm audio interface for external audio input
  • PSTN1
  • BusRS-485 1, half-duplex
  • SD CardStandard microSD card slot, supports microSD/SDHC/SDXC card, Max. 256 G
  • Video
  • Resolusion2560*1440
  • Frame ratePAL: 25fps；NTSC:20fps
  • Field AngleHorizontal: 128°；Vertical: 75°；Diagonal: 147°
  • Day/night switch modeIR cut filter
  • Audio
  • Audio input1-ch built-in omnidirectional microphone, pickup distance: 5 m 1-ch 3.5 mm audio interface for external audio input
  • Audio output1-ch 30 W built-in loudspeaker 1-ch 3.5 mm audio interface for external audio output
  • Audio compression code rate16Kbps;64Kbps
  • Electrical characteristics
  • Power supply220 VAC
  • Power Consumption≤ 24 W
  • Wireless transmission
  • Wired network10 M/100 M self-adaptive Ethernet port
  • General
  • Operation temperature-40 °C to 70 °C
  • Operation humidity10% to 90%
  • Dimension(WxHxD)Without Bracket: 450 mm × 500 mm × 2205 mm (17.72" × 19.69" × 86.81") With Bracket: 450 mm × 500 mm × 4500 mm (17.72" × 19.69" × 177.17")
  • Installation methodFloor-mounted and pole clamp mounted
  • Device management
  • Camera4 MP HD IR camera
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Software features
Tamper-Proof
Tamper alarm
Intercom
1-ch built-in omnidirectional microphone, pickup distance: 5 m
Protocol
TCP/IP, RTSP, SNMP, HIK-SIP, Standard SIP, ONVIF
Hardware features
Alarm input
2
Alarm output
2
Siren
1, sound can be configured separately
Lamp
1, light can be configured separately
Netowrk interface
2RJ45,10 M/100 M self-adaptive
Audio interface
1-ch built-in omnidirectional microphone, pickup distance: 5 m 1-ch 3.5 mm audio interface for external audio input
PSTN
1
Bus
RS-485 1, half-duplex
SD Card
Standard microSD card slot, supports microSD/SDHC/SDXC card, Max. 256 G
Video
Resolusion
2560*1440
Frame rate
PAL: 25fps；NTSC:20fps
Field Angle
Horizontal: 128°；Vertical: 75°；Diagonal: 147°
Day/night switch mode
IR cut filter
Audio
Audio input
1-ch built-in omnidirectional microphone, pickup distance: 5 m 1-ch 3.5 mm audio interface for external audio input
Audio output
1-ch 30 W built-in loudspeaker 1-ch 3.5 mm audio interface for external audio output
Audio compression code rate
16Kbps;64Kbps
Electrical characteristics
Power supply
220 VAC
Power Consumption
≤ 24 W
Wireless transmission
Wired network
10 M/100 M self-adaptive Ethernet port
General
Operation temperature
-40 °C to 70 °C
Operation humidity
10% to 90%
Dimension(WxHxD)
Without Bracket: 450 mm × 500 mm × 2205 mm (17.72" × 19.69" × 86.81") With Bracket: 450 mm × 500 mm × 4500 mm (17.72" × 19.69" × 177.17")
Installation method
Floor-mounted and pole clamp mounted
Device management
Camera
4 MP HD IR camera
