EOL

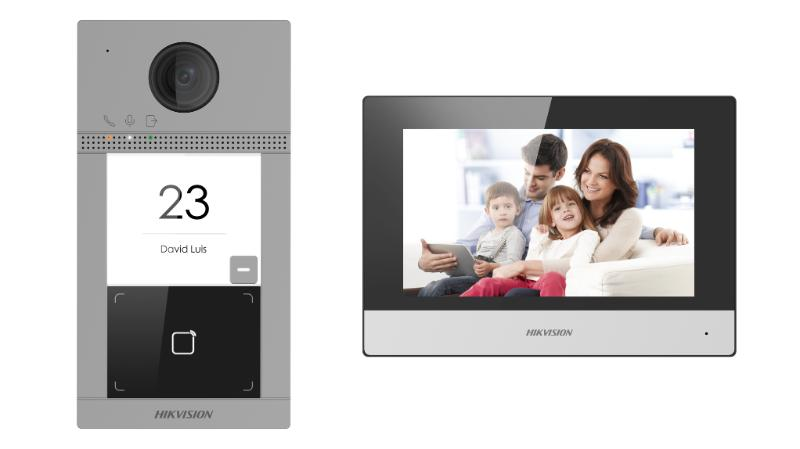

IP Video Intercom Kit

  • IP video intercom kit for villa or house, only one call button;
  • DS-KV8113-WME1 x1;
  • DS-KH6320-WTE1 x1;
  • PSU x2(-P modle) x1;
  • 16GB TF card x1;
  • POE switch(-S modle) x1;
View Less
View more

Available models:

DS-KIS604-S(B)
DS-KIS604-S(B)
DS-KIS604-S(B)

Specification

  • Door station/System parameters
  • Operation systemEmbedded Linux operation system
  • Flash32 MB
  • RAM128 MB
  • Door station/Video parameters
  • Camera2MP HD camera
  • Night visionLow illumination IR supplement mode:3 m
  • Backlight compensationSupport
  • Digital noise reductionSupport
  • WDRTrue WDR
  • Field of viewHorizontal: 129° Vertical: 75°
  • Video Compression StandardH.264
  • StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
  • Motion detectionSupport
  • Flash-avoid frequency50 Hz, 60 Hz
  • Door station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U
  • Audio compression Rate64 Kbps
  • Audio intercomTwo-way audio communication
  • Door station/Network parameters
  • Network protocolTCP/IP, RSTP
  • Wired network10/100 Mbps Ethernet
  • Door station/Device interfaces
  • RS-485 1
  • Alarm input4
  • Debugging port1
  • Grounding1
  • TAMPER switch1
  • Door station/General
  • Power consumption＜ 10 W
  • Working temperature-40° C to 53° C(-40° F to 127.4° F)
  • Working humidity10% to 95%
  • Dimension174 mm × 91 mm × 29 mm
  • InstallationSurface mounting
  • Protection level IP65, IK08
  • Indicator3
  • Power supplyIEEE802.3af, standard PoE 12 VDC
  • Indoor station/System parameters
  • Operation systemEmbedded Linux operation system
  • Memory128 MB
  • Flash 32 MB
  • Indoor station/Display parameters
  • Display screen7-inch colorful TFT screen
  • Display resolution1024 × 600
  • Operation methodCapacitive touch screen
  • Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U
  • Audio compression Rate64 Kbps
  • Indoor station/Network parameters
  • Wired network 10/100 Mbps self-adaptive
  • Wireless networkWi-Fi 802.11 b/g/n
  • ProtocolTCP/IP, SIP, RTSP
  • RS-4851 RJ-45 10/100 Mbps self-adaptive
  • Indoor station/Device interfaces
  • RS-4851
  • Alarm input8-ch alarm inputs
  • Relay output2
  • TF cardMax to 32 G, SD 2.0 or lower version
  • Indoor station/General
  • Power consumption≤ 6 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Door station/System parameters
Operation system
Embedded Linux operation system
Flash
32 MB
RAM
128 MB
Door station/Video parameters
Camera
2MP HD camera
Night vision
Low illumination IR supplement mode:3 m
Backlight compensation
Support
Digital noise reduction
Support
WDR
True WDR
Field of view
Horizontal: 129° Vertical: 75°
Video Compression Standard
H.264
Stream
Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
Motion detection
Support
Flash-avoid frequency
50 Hz, 60 Hz
Door station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio quality
Noise suppression and echo cancellation
Audio compression standard
G.711 U
Audio compression Rate
64 Kbps
Audio intercom
Two-way audio communication
Door station/Network parameters
Network protocol
TCP/IP, RSTP
Wired network
10/100 Mbps Ethernet
Door station/Device interfaces
RS-485
1
Alarm input
4
Debugging port
1
Grounding
1
TAMPER switch
1
Door station/General
Power consumption
＜ 10 W
Working temperature
-40° C to 53° C(-40° F to 127.4° F)
Working humidity
10% to 95%
Dimension
174 mm × 91 mm × 29 mm
Installation
Surface mounting
Protection level
IP65, IK08
Indicator
3
Power supply
IEEE802.3af, standard PoE 12 VDC
Indoor station/System parameters
Operation system
Embedded Linux operation system
Memory
128 MB
Flash
32 MB
Indoor station/Display parameters
Display screen
7-inch colorful TFT screen
Display resolution
1024 × 600
Operation method
Capacitive touch screen
Indoor station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio quality
Noise suppression and echo cancellation
Audio compression standard
G.711 U
Audio compression Rate
64 Kbps
Indoor station/Network parameters
Wired network
10/100 Mbps self-adaptive
Wireless network
Wi-Fi 802.11 b/g/n
Protocol
TCP/IP, SIP, RTSP
RS-485
1 RJ-45 10/100 Mbps self-adaptive
Indoor station/Device interfaces
RS-485
1
Alarm input
8-ch alarm inputs
Relay output
2
TF card
Max to 32 G, SD 2.0 or lower version
Indoor station/General
Power consumption
≤ 6 W
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
10% to 90%
Dimension (L x W x H)
200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
For better user experience, we highly recommend you to update your device to the latest firmware asap.
