EOL

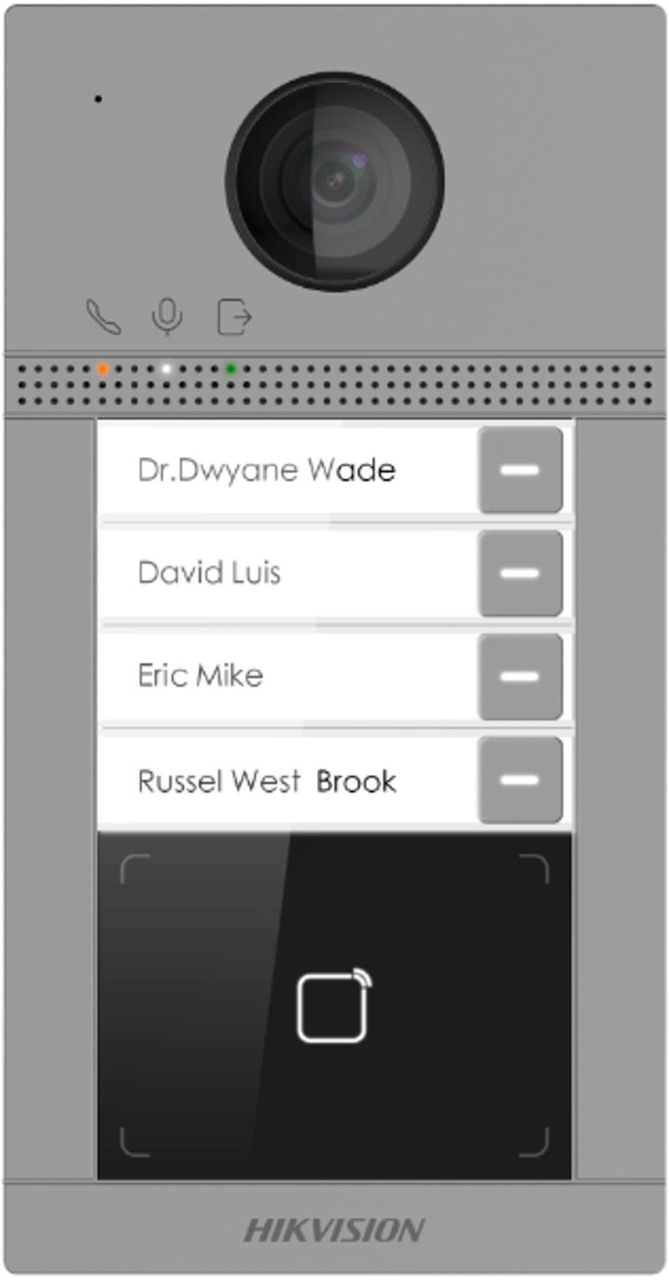

4 Button Metal Villa Door Station

  • Support Wifi, convenient setting up and no wiring required
  • Support web configuration
  • Aluminum alloy, Nice industry design, IP65, IK08, 3 indicator integrated
  • Internal Mifare card reader, 4-ch Indoor station access control
  • Noise suppression and echo cancellation
  • 2MP HD Camera with IR supplement
  • Standard PoE/12 VDC
View Less
View more

Available models:

DS-KV8413-WME1(B)

Specification

  • Display parameters
  • Size/
  • Operation method/
  • Type/
  • Video parameters
  • Supplement lightIR supplement
  • Lens1
  • FOVHorizontal: 129° Vertical: 75°
  • PixelMain stream : 1920 × 1080 Sub stream : 720 × 480
  • Audio parameters
  • Audio qualityNoise suppression and echo cancellation
  • Network parameters
  • Communication protocolTCP/IP, RSTP
  • Wired network10/100 Mbps self-adaptive Ethernet
  • Wi-Fi/
  • Bluetooth/
  • Device interfaces
  • Network interface1
  • Exit button2
  • Lock control2
  • Door contact input2
  • Power interface1
  • General
  • Button4
  • InstallationFlush mounting
  • Indicator3
  • Weight385g
  • Protective levelIP65, IK08
  • Power supply methodIEEE802.3af, standard PoE 12 VDC
  • Working temperature-40° C to +55° C(-40° F to 131° F)
  • Working humidity10% to 95%
  • Dimensions174 mm × 91 mm × 29 mm
  • Battery/
  • Application environmentOutdoor
  • Power consumption< 10 W
  • LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak

Specification

Specification
Display parameters
  • Size/
  • Operation method/
  • Type/
Video parameters
  • Supplement lightIR supplement
  • Lens1
  • FOVHorizontal: 129° Vertical: 75°
  • PixelMain stream : 1920 × 1080 Sub stream : 720 × 480
Audio parameters
  • Audio qualityNoise suppression and echo cancellation
Network parameters
  • Communication protocolTCP/IP, RSTP
  • Wired network10/100 Mbps self-adaptive Ethernet
  • Wi-Fi/
  • Bluetooth/
Device interfaces
  • Network interface1
  • Exit button2
  • Lock control2
  • Door contact input2
  • Power interface1
General
  • Button4
  • InstallationFlush mounting
  • Indicator3
  • Weight385g
  • Protective levelIP65, IK08
  • Power supply methodIEEE802.3af, standard PoE 12 VDC
  • Working temperature-40° C to +55° C(-40° F to 131° F)
  • Working humidity10% to 95%
  • Dimensions174 mm × 91 mm × 29 mm
  • Battery/
  • Application environmentOutdoor
  • Power consumption< 10 W
  • LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
