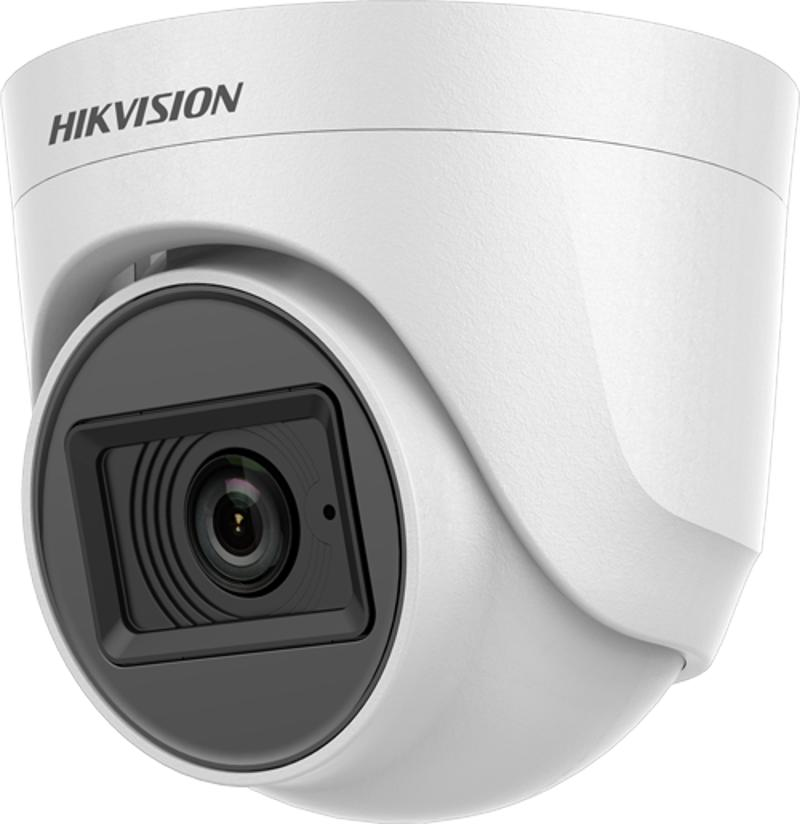

5 MP Audio Indoor Fixed Turret Camera

  • 5 MP coaxial audio camera
  • Enhanced safety with discreet and economical built-in microphone
  • Transmit audio over coaxial cable
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Specification
  • Camera
  • Image Sensor5 MP CMOS
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7° 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9° 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR
  • Frame RateTVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • White BalanceATW/MANUAL
  • AGCSupport
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialPlastic
  • DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
  • WeightApprox. 140.5 g (0.31 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 3.7 W
  • IR RangeUp to 20 m
