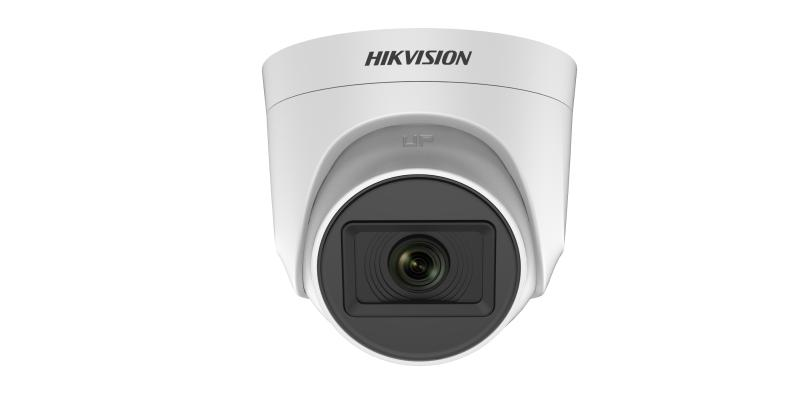

2 MP Indoor Fixed Turret Camera

  • High quality imaging with 2 MP, 1920 × 1080 resolution
  • 2.8 mm, 3.6 mm fixed lens
  • Up to 20 m IR distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
View Less
View more

Available models:

DS-2CE76D0T-EXIPF(2.8mm)
DS-2CE76D0T-EXIPF(3.6mm)

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Signal SystemPAL/NTSC
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Lens
  • Lens Type2.8 mm, 3.6 mm Fixed Lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
  • Lens MountM12
  • Illuminator
  • Supplement Light RangeUp to 20 m
  • Image
  • Frame RateTVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVI: 1080p@25fps/30fps CVBS: PAL/NTSC
  • Wide Dynamic Range (WDR)Digital WDR
  • Image Parameters SwitchSTD/HIGH-SAT
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceAuto
  • Image EnhancementDWDR, BLC, Global
  • Noise Reduction2D DNR
  • Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • LanguageEnglish
  • Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
  • MaterialPlastic
  • CommunicationHIKVISION-C
  • DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
  • WeightApprox. 195g (0.43 lb.)
  • Power12 VDC ± 25%, Max. 3.3 W

Specification

Specification
Camera
  • Image Sensor2 MP CMOS
  • Signal SystemPAL/NTSC
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Lens
  • Lens Type2.8 mm, 3.6 mm Fixed Lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
  • Lens MountM12
Illuminator
  • Supplement Light RangeUp to 20 m
  • Frame RateTVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVI: 1080p@25fps/30fps CVBS: PAL/NTSC
  • Wide Dynamic Range (WDR)Digital WDR
  • Image Parameters SwitchSTD/HIGH-SAT
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceAuto
  • Image EnhancementDWDR, BLC, Global
  • Noise Reduction2D DNR
  • Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC
Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
General
  • LanguageEnglish
  • Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
  • MaterialPlastic
  • CommunicationHIKVISION-C
  • DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
  • WeightApprox. 195g (0.43 lb.)
  • Power12 VDC ± 25%, Max. 3.3 W
