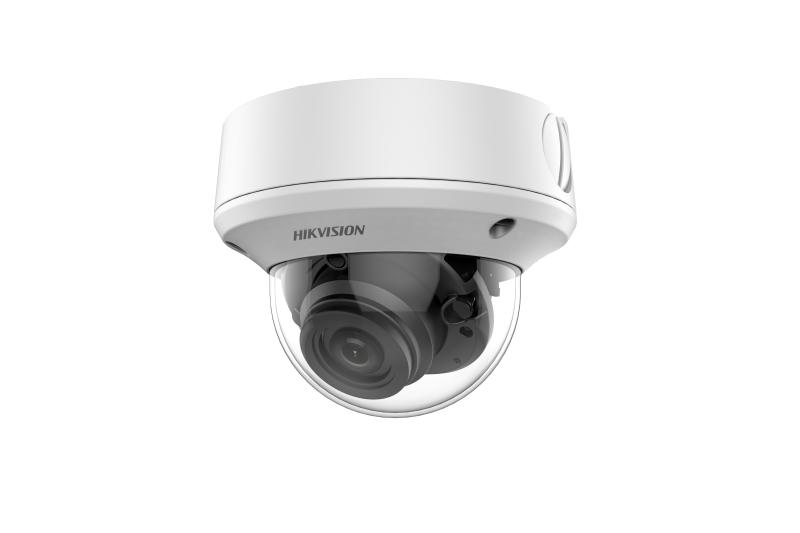

2 MP Ultra Low Light Vandal Motorized Varifocal Dome Camera

  • 2 MP dome camera
  • Strong night performance, capturing images in ultra-low light down to 0.005 lux
  • Clear imaging even against strong back lighting due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 70 m IR distance
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Available models:

DS-2CE5AD3T-AVPIT3ZF(2.7-13.5mm)

Specification

  • Camera
  • Image Sensor2.0 megapixel progressive scan CMOS
  • Max. Resolution1920 (H) ×1080 (V)
  • Min. Illumination0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.7 mm to 13.5 mm
  • Focal Length & FOV102° to 31°
  • Lens MountΦ 14
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart IR
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥ 120 dB
  • Image EnhancementYes
  • AGCHigh/Medium/Low
  • Interface
  • Video OutputTVI/AHD/CVI/CVBS
  • General
  • MaterialMetal
  • DimensionØ145 mm × 111.3 mm (5.70" × 4.37")
  • Approx. 830 g (1.83 lb.) -A: Approx. 870 g (1.92 lb.)
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • LanguageEnglish
  • Power Supply12 VDC ±25% -A: 24 VAC ±15%, 12 VDC ±20% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 7.7 W -A: Max. 9.7 W
  • IR RangeUp to 70 m
  • Approval
  • ProtectionIP67, IK10
