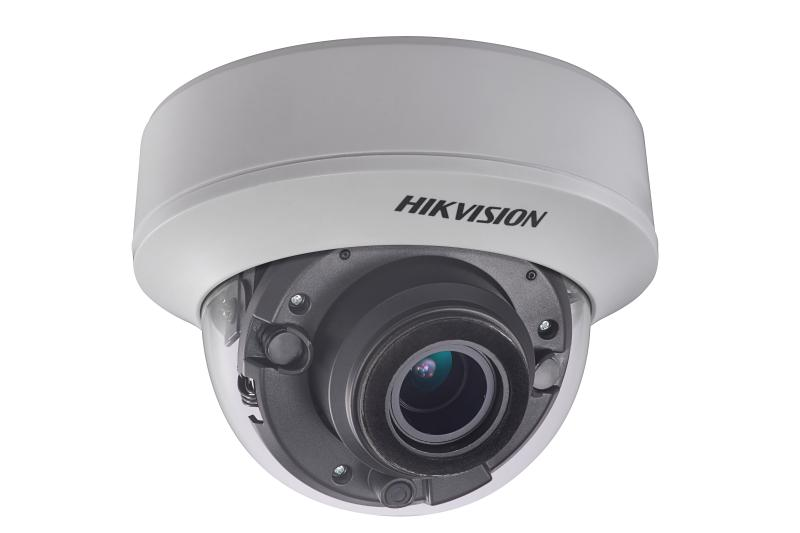

5 MP Indoor PoC Motorized Varifocal Dome Camera

  • 5 MP dome camera
  • 2.7 mm to 13.5 mm motorized varifocal lens
  • Up to 40 m IR distance for bright night imaging
  • Transmits both HD video and power over the same coaxial cable

Specification
  • Camera
  • Image Sensor5 MP CMOS image sensor
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.7 mm to 13.5 mm motorized vari-focal lens
  • Focal Length & FOV95.7° to 29.1°
  • Lens MountΦ 14
  • Image
  • Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
  • Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Image EnhancementYes
  • White BalanceATW/MWB
  • AGCSupport
  • Interface
  • Video Output1 HD analog output
  • General
  • MaterialPlastic
  • DimensionØ 136 mm × 101.9 mm ( Ø 5.35" × 4.01")
  • WeightApprox. 455 g (1.00 lb.)
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • LanguageEnglish
  • Power Supply12 VDC ±25%, PoC.at
  • ConsumptionMax. 6.6 W
  • IR RangeUp to 40 m
