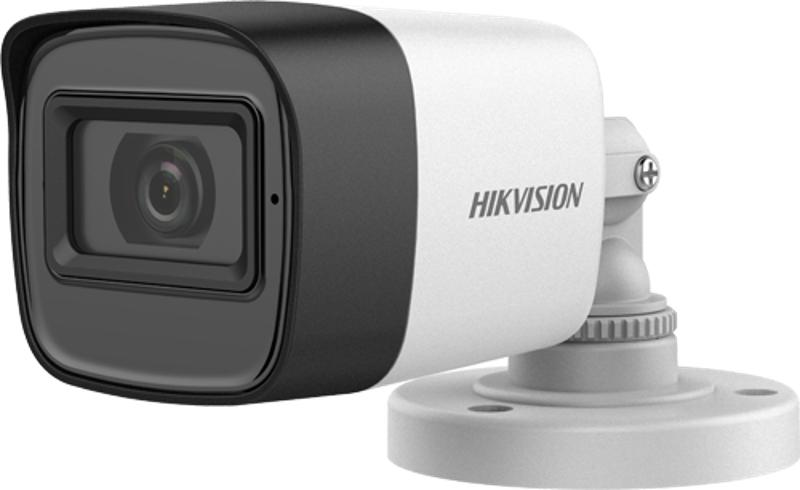

5 MP Audio Fixed Mini Bullet Camera

  • 5 MP coaxial audio camera
  • Enhanced safety with discreet and economical built-in microphone
  • Transmit audio over coaxial cable
  • EXIR 2.0: advanced infrared technology with 30 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Available models:

DS-2CE16H0T-ITFS(2.8mm)

Available models:

DS-2CE16H0T-ITFS(3.6mm)
DS-2CE16H0T-ITFS(3.6mm)(India)/SKD

Specification
  • Camera
  • Image Sensor5 MP CMOS
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7° 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9° 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
  • Lens MountM12
  • Image
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR
  • Frame RateTVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Image EnhancementBLC
  • White BalanceATW/MANUAL
  • AGCSupport
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialMetal
  • Dimension58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
  • Approx. 292 g (0.64 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 3.7 W
  • IR RangeUp to 30 m
  • Approval
  • ProtectionIP67
