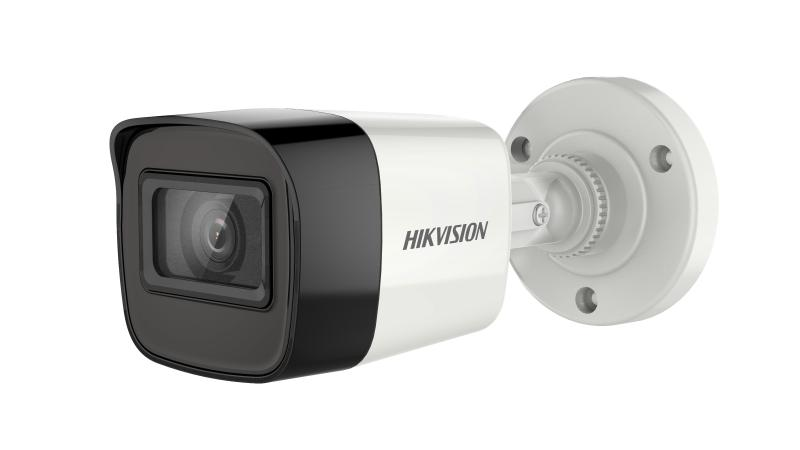

DS-2CE16D3T-ITPF

2 MP Ultra Low Light Fixed Mini Bullet Camera

2 MP bullet camera
Strong night performance, capturing images in ultra-low light down to 0.005 lux
Clear imaging even against strong back lighting due to 120 dB true WDR technology
3D DNR technology delivers clean and sharp images
EXIR 2.0: advanced infrared technology with 30 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

View Less

Available models:

DS-2CE16D3T-ITPF(2.8mm)

DS-2CE16D3T-ITPF(3.6mm)

DS-2CE16D3T-ITPF(3.6mm)(India-L)

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 106° 3.6 mm, horizontal FOV: 82° 6 mm, horizontal FOV: 51°
Lens MountM12

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness;Sharpness;Mirror;Smart IR;AGC
Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥120 dB
Image EnhancementHLC;BLC;WDR
Noise Reduction3D DNR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
Power12 VDC ± 25%, max. 4.6 W *You are recommended to use one power adapter to supply the power for one camera.
MaterialPlastic
Dimension158 mm × 61 mm × 58 mm (6.42" × 2.40" × 2.28")
WeightApprox. 177 g (0.39 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
LanguageEnglish

Approval
ProtectionIP67

Specification

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.005 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm and 6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 106° 3.6 mm, horizontal FOV: 82° 6 mm, horizontal FOV: 51°

Lens Mount

M12

Illuminator

Supplement Light Type

Supplement Light Range

Up to 30 m


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness;Sharpness;Mirror;Smart IR;AGC

Frame Rate

PAL: 1080p@25fps NTSC: 1080p@30fps

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

≥120 dB

Image Enhancement

HLC;BLC;WDR

Noise Reduction

3D DNR

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS;1 HD analog output

General

Power

12 VDC ± 25%, max. 4.6 W *You are recommended to use one power adapter to supply the power for one camera.

Material

Plastic

Dimension

158 mm × 61 mm × 58 mm (6.42" × 2.40" × 2.28")

Weight

Approx. 177 g (0.39 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Language

English

Approval

Protection

IP67
