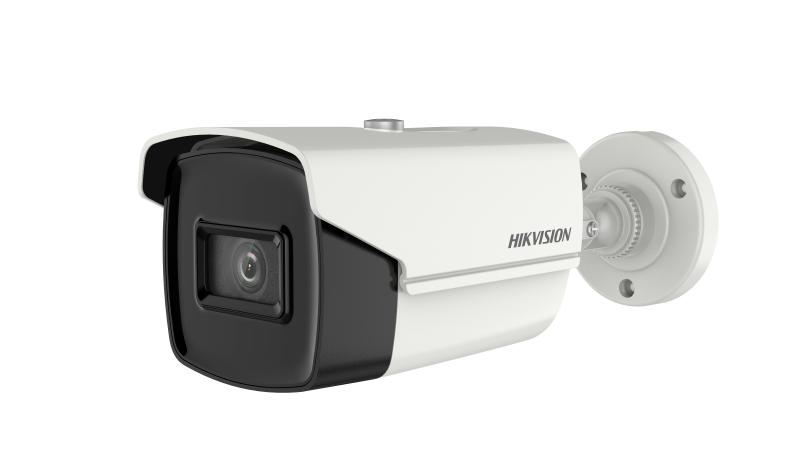

DS-2CE16D3T-IT3F

2 MP Ultra Low Light Fixed Bullet Camera

2 MP bullet camera
Strong night performance, capturing images in ultra-low light down to 0.005 lux
Clear imaging even against strong back lighting due to 120 dB true WDR technology
3D DNR technology delivers clean and sharp images
EXIR 2.0: advanced infrared technology with 50 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

View Less

Available models:

DS-2CE16D3T-IT3F(2.8mm)

DS-2CE16D3T-IT3F(3.6mm)

DS-2CE16D3T-IT3F(6mm)

Camera
Min. Illumination0.005 Lux@(F2.0, AGC ON), 0 Lux with IR
Signal SystemPAL/NTSC
Image Sensor2 MP CMOS
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Max. Resolution1920 (H) × 1080 (V)
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Slow ShutterMax. 16 times

Lens
Focal Length & FOVHorizontal FOV: 106° (2.8 mm), 82° (3.6 mm), 51° (6 mm), 39° (8 mm), 24° (12 mm)
Lens MountM12
Lens TypeFixed focal lens, 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 50 m
Smart Supplement LightYes

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness;Sharpness;Mirror;AGC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥120 dB
Frame RatePAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps
Image EnhancementBLC;HLC
Noise Reduction3D DNR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
MaterialFront cover: Metal, Main body: Plastic
Dimension81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
Power12 VDC ± 25%, max. 5.6 W *You are recommended to use one power adapter to supply the power for one camera.
WeightApprox. 411 g (0.91 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
LanguageEnglish

Approval
ProtectionIP67

Specification

Camera

Min. Illumination

0.005 Lux@(F2.0, AGC ON), 0 Lux with IR

Signal System

PAL/NTSC

Image Sensor

2 MP CMOS

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°

Max. Resolution

1920 (H) × 1080 (V)

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Slow Shutter

Max. 16 times

Lens

Focal Length & FOV

Horizontal FOV: 106° (2.8 mm), 82° (3.6 mm), 51° (6 mm), 39° (8 mm), 24° (12 mm)

Lens Mount

M12

Lens Type

Fixed focal lens, 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm

Illuminator

Supplement Light Type

Supplement Light Range

Up to 50 m

Smart Supplement Light

Yes


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness;Sharpness;Mirror;AGC

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

≥120 dB

Frame Rate

PAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps

Image Enhancement

BLC;HLC

Noise Reduction

3D DNR

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS;1 HD analog output

General

Material

Front cover: Metal, Main body: Plastic

Dimension

81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )

Power

12 VDC ± 25%, max. 5.6 W *You are recommended to use one power adapter to supply the power for one camera.

Weight

Approx. 411 g (0.91 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Language

English

Approval

Protection

IP67
