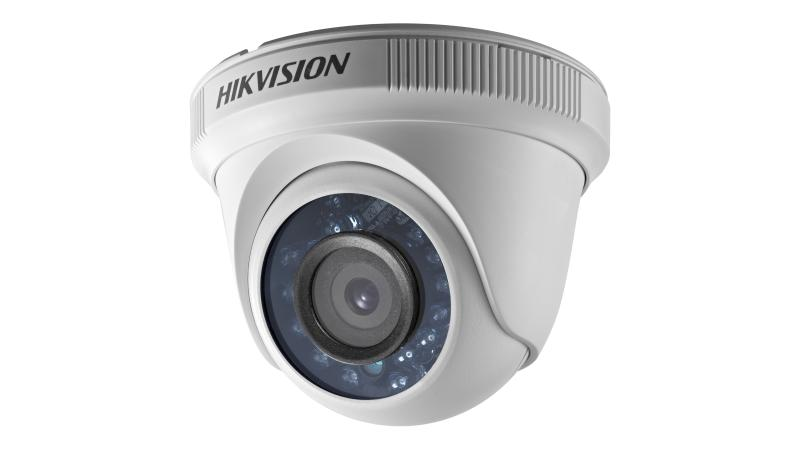

1 MP Fixed Turret Camera

  • HD 720p turret camera
  • Smart IR: up to 20 m IR distance
  • Water and dust resistant (IP66)

Specification
  • Camera
  • Image Sensor1MP CMOS Image Sensor
  • Max. Resolution1296 (H) × 732 (V)
  • Min. Illumination0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens TypeFixed Lens; Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm)
  • Lens MountM12
  • Image
  • Frame Rate720p@25fps/720p@30fps
  • Wide Dynamic Range (WDR)No
  • SNR>62dB
  • Interface
  • Video Output1 HD analog output
  • General
  • DimensionΦ89.5 × 69.8 mm(Φ3.52” × 2.75”)
  • Weight280 g
  • Operating Condition-40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
  • Power Supply12 VDC±15%
  • ConsumptionMax. 4W
  • IR RangeUp to 20m
  • Approval
  • ProtectionIP66
