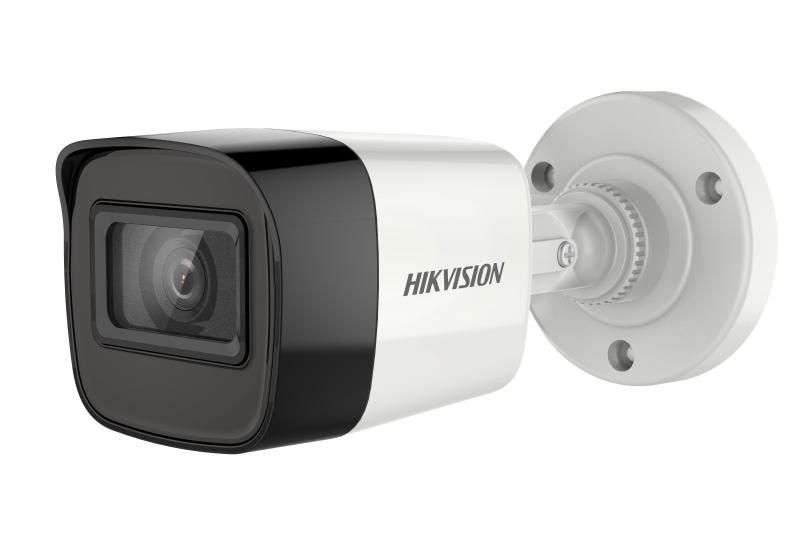

DS-2CE16U1T-ITPF

4K Fixed Mini Bullet Camera

8 MP bullet camera
EXIR 2.0: advanced infrared technology with 30 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Available models:

DS-2CE16U1T-ITPF(2.8mm)

DS-2CE16U1T-ITPF(3.6mm)

Camera
Image Sensor8.29 megapixel progressive scan CMOS
Max. Resolution3840 (H) × 2160 (V)
Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Lens MountM16

Image SettingsBrightness, Sharpness, DNR, Smart IR, HLC
Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps,2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR/ 105 dB
Image EnhancementBLC
White BalanceAuto/Manual
AGCYes

Interface
Video Output1 HD analog output，TVI/AHD/CVI/CVBS

General
MaterialPlastic
Dimension58 mm × 61 mm × 159.8 mm (2.28" × 2.40" × 6.42")
WeightApprox. 210 g (0.46 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
LanguageEnglish
Power Supply12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 5.3 W
IR RangeUp to 30 m

Approval
ProtectionIP67

Camera

Image Sensor8.29 megapixel progressive scan CMOS
Max. Resolution3840 (H) × 2160 (V)
Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Signal SystemPAL/NTSC

Lens

Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Lens MountM16


Image SettingsBrightness, Sharpness, DNR, Smart IR, HLC
Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps,2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR/ 105 dB
Image EnhancementBLC
White BalanceAuto/Manual
AGCYes

Interface

Video Output1 HD analog output，TVI/AHD/CVI/CVBS

General

MaterialPlastic
Dimension58 mm × 61 mm × 159.8 mm (2.28" × 2.40" × 6.42")
WeightApprox. 210 g (0.46 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
LanguageEnglish
Power Supply12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 5.3 W
IR RangeUp to 30 m

Approval

ProtectionIP67
