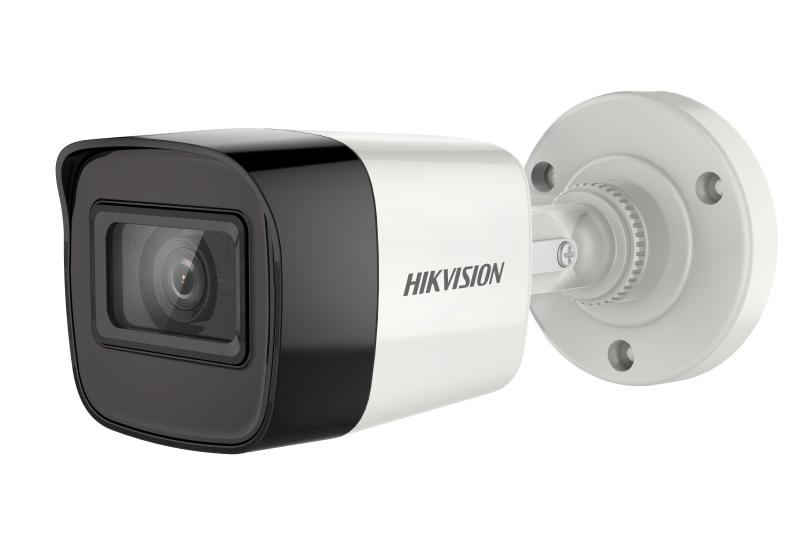

4K Fixed Mini Bullet Camera

  • 8 MP bullet camera
  • EXIR 2.0: advanced infrared technology with 30 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS);

Specification
  • Camera
  • Image Sensor8.29 megapixel progressive scan CMOS
  • Max. Resolution3840 (H) × 2160 (V)
  • Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/12.5 s to 1/50,000 s ,NTSC: 1/15 s to 1/50,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens TypeFixed Lens
  • Focal Length & FOV102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
  • Lens MountM16
  • Image
  • Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR, HLC
  • Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps,CVI: 8MP@12.5fps, 8MP@15fps,AHD: 8M@12.5fps, 8M@15fps,CVBS: 960H P/N
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)DWDR
  • Image EnhancementYes
  • White BalanceAuto/Manual
  • AGCYes
  • Interface
  • Video Output4 in1
  • General
  • MaterialMetal
  • Dimension58 mm × 61 mm × 159.8 mm (2.28" × 2.40" × 6.42")
  • WeightApprox. 345 g (0.76 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • LanguageEnglish
  • Power SupplyDC12V
  • ConsumptionMax. 5.3 W
  • IR Range30~60m
  • Approval
  • ProtectionIP67
