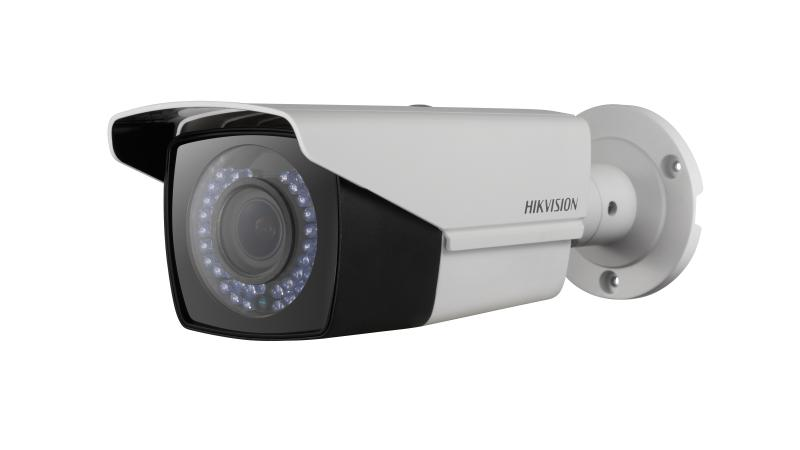

2 MP PoC Manual Varifocal Bullet Camera

  • 2 MP varifocal PoC bullet camera
  • Up to 40 m IR distance for bright night imaging
  • Water and dust resistant (IP66) and vandal resistant (IK10)
  • Transmits both HD video and power over the same coaxial cable

Specification
  • Camera
  • Image Sensor2.0 megapixel progressive scan CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm to 12 mm
  • Focal Length & FOV105.2° to 32.8 °
  • Lens MountΦ14
  • Image
  • Image SettingsBrightness, Sharpness, DNR, Mirror
  • Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
  • Day/Night ModeSmart/color/BW(Black and White)
  • Wide Dynamic Range (WDR)DWDR
  • Image EnhancementBLC
  • AGCLow/middle/high
  • Interface
  • Video OutputTVI only
  • General
  • MaterialMain Body: Plastic,Mounting Base: Metal
  • Dimension92 mm × 89 mm × 269.6 mm (3.62" × 3.5" × 10.6")
  • Approx. 900 g (1.98 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
  • LanguageEnglish, Chinese
  • Power Supply12 VDC ±15%/PoC.at
  • ConsumptionMax.6.5 W
  • IR RangeUp to 40 m
  • Approval
  • ProtectionIP66
Specification
