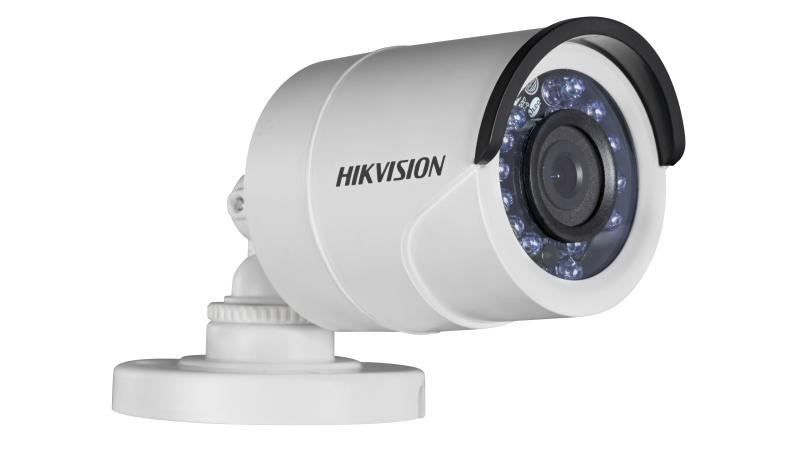

1 MP Fixed Mini Bullet Camera

  • HD 720p bullet camera
  • Smart IR: up to 20 m IR distance
  • Water and dust resistant (IP66);
Specification
  • Camera
  • LensAngle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm)
  • Lens MountM12
  • Day & NightICR
  • SynchronizationInternal synchronization
  • Angle AdjustmentPan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
  • Effective Pixels1296(H)*732(V)
  • S/N Ratio>62dB
  • Image Sensor1MP CMOS Image Sensor
  • Signal SystemPAL/NTSC
  • Frame Rate720p@25fps/720p@30fps
  • Min. illumination0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
  • Shutter Time1/25(1/30)s to 1/50,000s
  • Interface
  • Video Output1 Analog HD output
  • General
  • Operating Condition-40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
  • Power Supply12 VDC±15%
  • Power ConsumptionMax. 4W
  • Protection LevelIP66
  • IR RangeUp to 20m
  • DimensionsΦ70×149.5 mm (Φ2.76” ×5.89”)
  • Weight400 g
