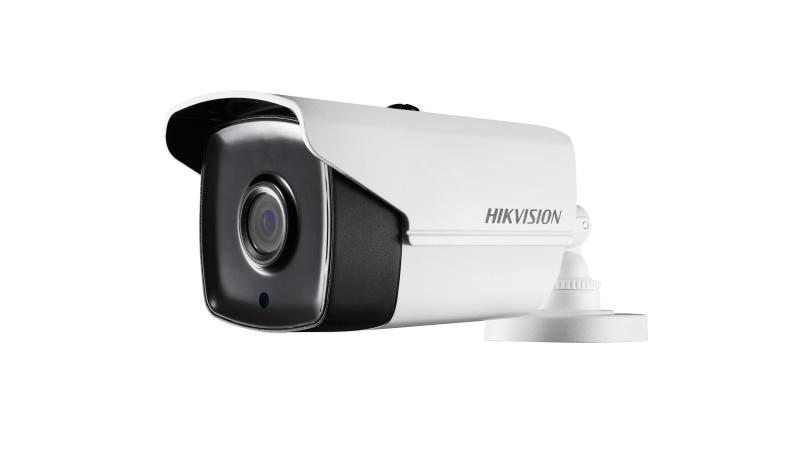

DS-2CE16D8T-IT3E

2 MP Ultra Low Light PoC Fixed Bullet Camera

2 MP high performance bullet camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
EXIR 2.0: advanced infrared technology with 60 m IR distance
Water and dust resistant (IP67)
Transmits both HD video and power over the same coaxial cable

View Less

Available models:

DS-2CE16D8T-IT3E(2.8mm)

DS-2CE16D8T-IT3E(3.6mm)

DS-2CE16D8T-IT3E(6mm)

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. IlluminationColor: 0.003 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Focal Length & FOVHorizontal FOV 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm), 38° (8 mm), 24.4° (12 mm)
Lens MountM12

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 60 m
Smart Supplement LightYes

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness;Mirror;Sharpness;AGC
Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementBLC;HLC;Global
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR
White BalanceAuto/Manual

Interface
Video Output1 HD analog output

Event
Motion Detection4 programmable motion areas

General
Power12 VDC ± 25%/PoC.af, Max. 3.6 W
MaterialMetal
Dimension86.7 mm × 81.6 mm × 226 mm (3.41" × 3.23" × 8.90")
WeightApprox. 680 g (1.5 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67

Specification

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

Color: 0.003 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens

Focal Length & FOV

Horizontal FOV 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm), 38° (8 mm), 24.4° (12 mm)

Lens Mount

M12

Illuminator

Supplement Light Type

Supplement Light Range

Up to 60 m

Smart Supplement Light

Yes


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness;Mirror;Sharpness;AGC

Frame Rate

PAL: 1080p@25fps NTSC: 1080p@30fps

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

≥130 dB

Image Enhancement

BLC;HLC;Global

Privacy Mask

4 programmable privacy masks

Noise Reduction

3D DNR

White Balance

Auto/Manual

Interface

Video Output

1 HD analog output

Event

Motion Detection

4 programmable motion areas

General

Power

12 VDC ± 25%/PoC.af, Max. 3.6 W

Material

Metal

Dimension

86.7 mm × 81.6 mm × 226 mm (3.41" × 3.23" × 8.90")

Weight

Approx. 680 g (1.5 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)

Communication

HIKVISION-C

Language

English

Approval

Protection

IP67
