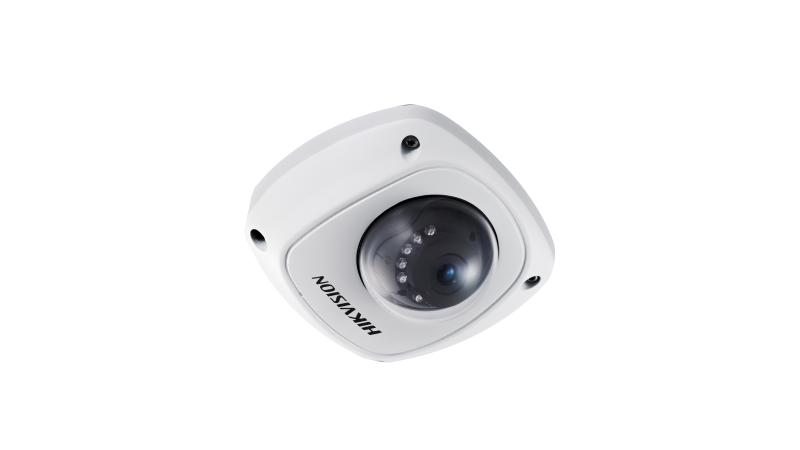

2 MP Ultra Low Light Fixed Mini Dome Camera

  • 2 MP high performance dome camera
  • Strong night performance, capturing images in ultra-low light down to 0.005 lux
  • Clear imaging even against strong back lighting due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Smart IR: up to 20 m IR distance
  • Enhanced safety with discreet and economical built-in microphone

View Less
View more

Available models:

DS-2CE56D8T-IRS(2.8mm)
DS-2CE56D8T-IRS(3.6mm)

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: -30° to 30°, Tilt: 0° to 80°, Rotate: -180° to 180°
  • Signal SystemPAL/NTSC
  • Slow ShutterMax. 16 times
  • Lens
  • Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
  • Focal Length & FOVHorizontal FOV: 94.5° (2.8 mm), 79.1° (3.6 mm), 50° (6 mm)
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 20 m
  • Smart Supplement LightYes
  • Image
  • Image SettingsBrightness;Sharpness;Mirror;AGC
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥120 dB
  • Image EnhancementWDR;BLC
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR
  • White BalanceAuto/Manual
  • Interface
  • Video Output1 CVBS output (75Ω/BNC)
  • Audio1 RCA audio out
  • Built-in MicrophoneYes
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • Power12 VDC±30%, Max. 5 W
  • MaterialMain body: Metal, Enclosure: Plastic
  • Dimension97 mm × 99.5 mm × 46.6 mm (3.82" × 3.92" × 1.83")
  • WeightApprox. 300 g (0.66 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
  • LanguageEnglish
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: -30° to 30°, Tilt: 0° to 80°, Rotate: -180° to 180°
Signal System
PAL/NTSC
Slow Shutter
Max. 16 times
Lens
Lens Type
2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 94.5° (2.8 mm), 79.1° (3.6 mm), 50° (6 mm)
Lens Mount
M12
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 20 m
