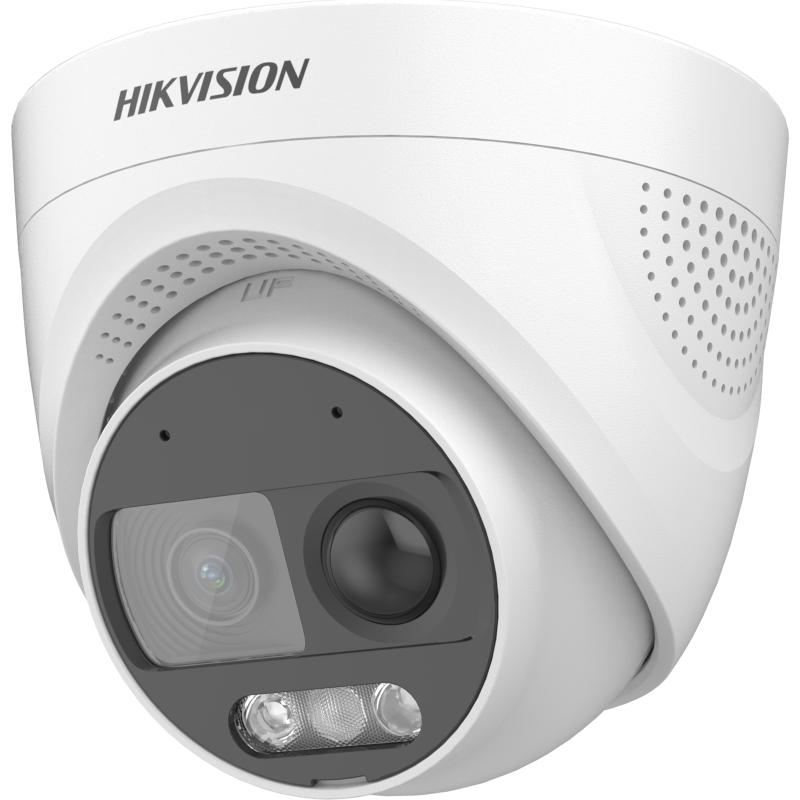

2 MP ColorVu PIR Siren Audio Fixed Turret Camera

  • High quality imaging with 2 MP, 1920 × 1080 resolution
  • 24/7 color imaging with F1.0 aperture
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm fixed focal lens
  • Up to 20 m white light distance for bright night imaging
  • Detects human body through heat-sensitive passive infrared (PIR)
  • Active strobe light and audio alarm to warn intruders off
  • High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
  • Water and dust resistant (IP67)

Specification
  • Camera
  • Image Sensor2 MP CMOS
  • Signal SystemPAL/NTSC
  • Resolution1920 (H) × 1080 (V)
  • Frame RateTVI: 1080p @ 25 fps/30 fps
  • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Slow ShutterMax. 16 times
  • Lens2.8 mm, 3.6 mm fixed focal lens
  • Field of View2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116° 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
  • Lens MountM12
  • Light AlarmFlashing Light Alarm (Red & Blue)
  • Day & Night24/7 Color Imaging
  • WDR (Wide Dynamic Range)≥130 dB
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Image
  • White LightAuto/Off
  • Image ModeSTD/HIGH-SAT/HIGHLIGHT
  • AGCYes
  • Day/Night ModeColor
  • White BalanceAuto/Manual
  • AE (Auto Exposure) ModeWDR;BLC;HLC;Global;HLS
  • Privacy Mask4 programmable privacy masks
  • Motion Detection4 programmable motion areas
  • Noise Reduction3D DNR/2D DNR
  • LanguageEnglish
  • FunctionDefective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
  • Interface
  • Video Output1 HD analog output
  • Alarm1 line out
  • Audio InBuilt-in mic
  • General
  • Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
  • Power Supply12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 9.6 W
  • Protection LevelIP67
  • MaterialMain body: Metal, Enclosure: Plastic
  • White Light RangeUp to 20 m
  • PIR RangeAngle: 110°, Range: 11 m
  • CommunicationHIKVISION-C
  • DimensionØ109.82 mm × 93.66 mm (Ø4.3" × 3.7")
  • WeightApprox. 396 g (0.87 lb.)
