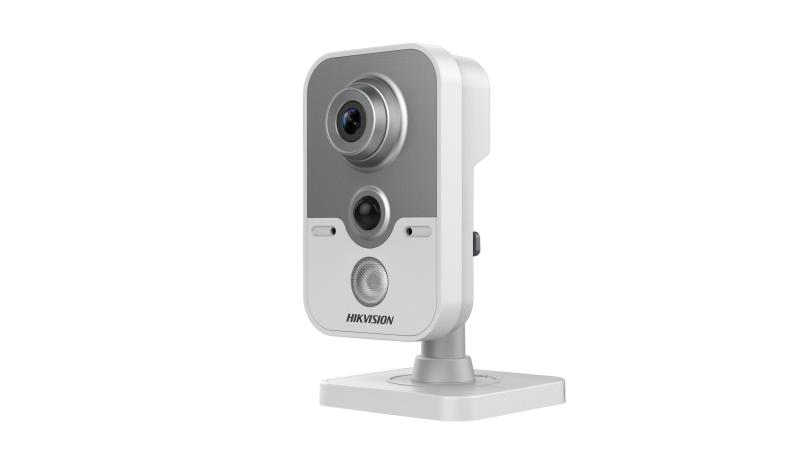

2 MP Ultra Low Light PIR Fixed Cube Camera

  • 2 MP high performance PIR cube camera
  • Detects human body through passive infrared that is sensitive to body temperatureStrong night performance, capturing images in ultra-low light down to 0.005 lux
  • Clear imaging even against strong back lighting due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • Enhanced safety with discreet and economical built-in microphone

Specification
  • Camera
  • Image Sensor2.0 megapixel progressive scan CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
  • Day & NightIR cut filter
  • Signal SystemPAL/NTSC
  • Slow ShutterMax. 16 times
  • Lens
  • Lens Type2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV103.5° (2.8 mm), 80.3° (3.6 mm)
  • Lens MountM12
  • Image
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR
  • Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)> 120 dB
  • Image EnhancementWDR/BLC/OFF
  • Privacy MaskON/OFF, 4 programmable privacy masks
  • Noise ReductionLevel 1 to 10
  • White BalanceATW/MANUAL
  • AGCYes
  • Supplement Detection(PIR)
  • PIR RangeAngle: 110°, Range: 11 m
  • Interface
  • Video Output1 HD analog output
  • AudioAudio In: Built-in microphone; Audio Out: 1 RCA
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • MaterialPlastic
  • Dimension104 mm × 66 mm × 41.07 mm (4.1" × 2.6" × 1.62")
  • WeightApprox. 210 g (0.46 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • LanguageEnglish, Chinese
  • Power Supply12 VDC ±25%
  • ConsumptionMax. 5 W
  • IR RangeUp to 20 m
