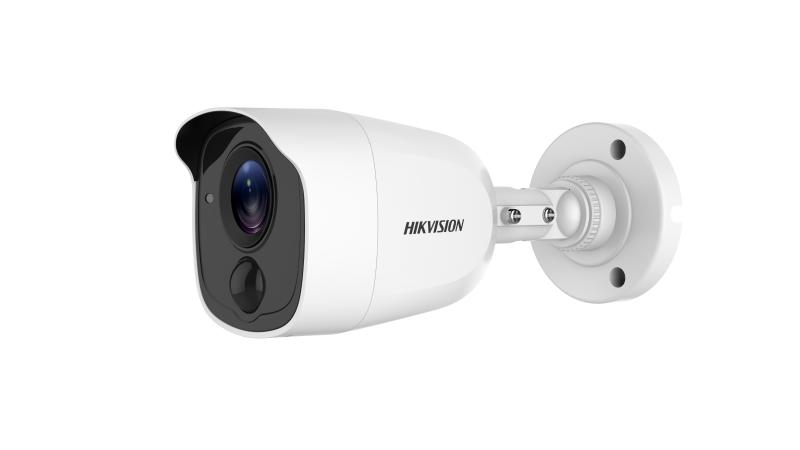

2 MP Ultra Low Light PIR Fixed Mini Bullet Camera

  • 2 MP high performance PIR bullet camera
  • PIR detection and strobe light alarm to warn off intruders in real time
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • EXIR 2.0: advanced infrared technology with 30 m IR distance
  • Water and dust resistant (IP67)

Specification
  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Slow ShutterMax. 16 times
  • Light AlarmYes
  • Lens
  • Lens Type2.8 mm, 3.6 mm fixed lens
  • Focal Length & FOV103.5° (2.8 mm), 82.6° (3.6 mm)
  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR
  • Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥130 dB
  • Image EnhancementWDR/BLC/HLC/Global
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR
  • White BalanceAuto/Manual
  • White LightAuto/Off
  • AGCYes
  • Supplement Detection(PIR)
  • PIR RangeAngle: 110°
  • Interface
  • Video OutputTVI only
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • MaterialMetal
  • Dimension68 mm × 70 mm × 179.8 mm (2.68" × 2.76" × 7.08")
  • WeightApprox. 345 g (0.76 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25%,*You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 4.5 W
  • IR RangeUp to 30 m
  • White Light RangeUp to 20 m
  • Approval
  • ProtectionIP67
