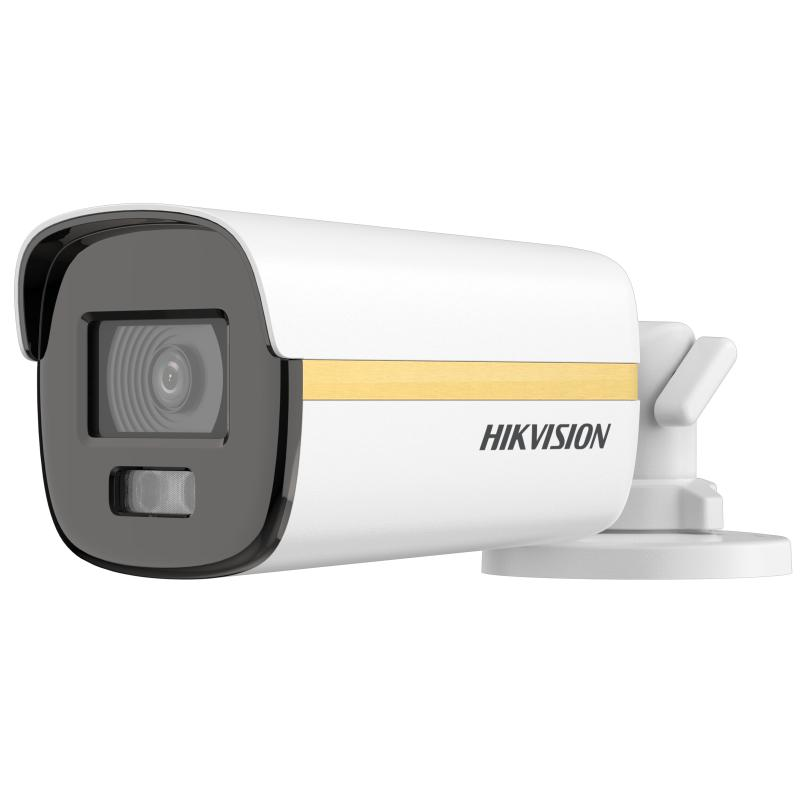

3K ColorVu Dual-light Fixed Bullet Camera

High quality imaging with 3K, 2960 × 1665 resolution
Excellent low-light performance
24/7 color imaging with F1.0 aperture
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
2.8 mm and 3.6 mm fixed focal lens
Up to 40 m white light distance for bright night imaging
Up to 40 m IR distance for bright night imaging
Water and dust resistant (IP67)
Smart-Hybrid light, optimize your security with flexible lighting options

View Less

Data Sheet

Available models:

DS-2CE12KF3T-L(2.8mm)

DS-2CE12KF3T-L(3.6mm)

DS-2CE12KF3T-L

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor3K CMOS
Signal SystemPAL/NTSC
Max. Resolution2960 (H) × 1665 (V)
Slow ShutterMax. 16 times
Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Lens
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 139° 3.6 mm, horizontal FOV: 80°, vertical FOV: 49°, diagonal FOV: 105°
Lens MountM12

Illuminator
Supplement Light TypeSmart,IR,White Light
Supplement Light RangeIR: Up to 40 m,White Light: Up to 40 m

Day/Night ModeAuto/Color
Frame Rate3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
Privacy Mask4 programmable privacy masks/8programmable privacy masks
Wide Dynamic Range (WDR)≥130 dB
Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
AGCYes
White BalanceAuto/Outdoor/Global/Manual
Image EnhancementWDR;BLC;HLC;HLS;Global
Noise Reduction3D DNR/2D DNR
Image SettingsAnti-Banding;Smart Light;Brightness;Contrast;Mirror

Interface
Video Output1 HD analog output

Event
Motion Detection4 programmable motion areas

General
Power12 VDC ± 25%, 0.65 A, max. 7.8 W, *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
LanguageEnglish
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
MaterialMetal
CommunicationHIKVISION-C
Dimension194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
WeightApprox. 535 g (1.18 lb.)

Approval
ProtectionIP67

Camera

Image Sensor

3K CMOS

Signal System

PAL/NTSC

Max. Resolution

2960 (H) × 1665 (V)

Slow Shutter

Max. 16 times

Min. Illumination

0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Lens

Lens Type

2.8 mm and 3.6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 139° 3.6 mm, horizontal FOV: 80°, vertical FOV: 49°, diagonal FOV: 105°

Lens Mount

M12

Illuminator

Supplement Light Type

Smart,IR,White Light

Supplement Light Range

IR: Up to 40 m,White Light: Up to 40 m


Day/Night Mode

Auto/Color

Frame Rate

3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps

Privacy Mask

4 programmable privacy masks/8programmable privacy masks

Wide Dynamic Range (WDR)

≥130 dB

Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT

AGC

Yes

White Balance

Auto/Outdoor/Global/Manual

Image Enhancement

WDR;BLC;HLC;HLS;Global

Noise Reduction

3D DNR/2D DNR

Image Settings

Anti-Banding;Smart Light;Brightness;Contrast;Mirror

Interface

Video Output

1 HD analog output

Event

Motion Detection

4 programmable motion areas

General

Power

12 VDC ± 25%, 0.65 A, max. 7.8 W, *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.

Language

English

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)

Material

Metal

Communication

HIKVISION-C

Dimension

194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")

Weight

Approx. 535 g (1.18 lb.)

Approval

Protection

IP67
