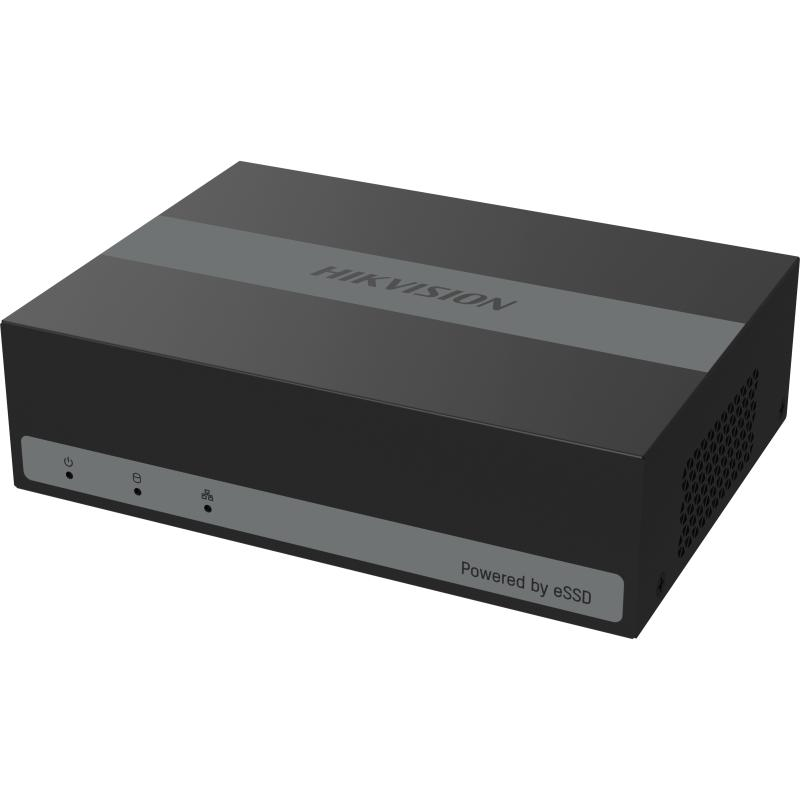

DS-E04HGHI-B

4-ch 1080p Lite 1U H.265 eSSD DVR

Powered by eSSD technology
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Scene-adaptive bitrate control video compression
Up to 1080p Lite@30 fps encoding capability
Low power consumption
Audio via coaxial cable

View Less

Available models:

DS-E04HGHI-B

Motion Detection 2.0
Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Recording
Video CompressionH.265 Pro/H.265
Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
Frame RateMain stream: 1080p Lite/720p/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N) Note: 1080p Lite/720p is 15 fps by default Sub-stream: 4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N)
Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
Stream TypeVideo, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
Audio CompressionG.711u
Audio Bitrate64 Kbps

Video and Audio
IP Video Input1-ch Up to 1080p resolution Support H.265+/H.265 IP cameras
Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputSupport
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input4-ch via coaxial cable
Audio Output1-ch via HDMI
Synchronous playback4-ch

Network
Total Bandwidth64 Mbps Incoming bandwidth: 4 Mbps
Remote Connection32
Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface
CapacityBuilt-in 330 GB eSSD (300 GB available) Note: The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only.
USB InterfaceRear panel: 2 × USB 2.0
Alarm In/OutN/A

General
Power Supply12 VDC, 1 A
Consumption≤ 5.4 W (with eSSD)
Working Temperature-10 °C to 45 °C (14 °F to +113 °F)
Working Humidity10% to 90%
Dimension (W × D × H)151 × 121 × 46 mm (5.94 × 4.76 × 1.81 inch)
Weight≤ 0.5 kg (with eSSD, 1.1 lb.)

Specification

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Recording

Video Compression

H.265 Pro/H.265

Encoding Resolution

1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA

Frame Rate

Main stream: 1080p Lite/720p/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N) Note: 1080p Lite/720p is 15 fps by default Sub-stream: 4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate

According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.

Stream Type

Video, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video and Audio

IP Video Input

1-ch Up to 1080p resolution Support H.265+/H.265 IP cameras

Analog Video Input

4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

Support

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Input

4-ch via coaxial cable

Audio Output

1-ch via HDMI

Synchronous playback

4-ch

Network

Total Bandwidth

64 Mbps Incoming bandwidth: 4 Mbps

Remote Connection

Network Protocol

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

Capacity

Built-in 330 GB eSSD (300 GB available) Note: The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only.

USB Interface

Rear panel: 2 × USB 2.0

Alarm In/Out

N/A

General

Power Supply

12 VDC, 1 A

Consumption

≤ 5.4 W (with eSSD)

Working Temperature

-10 °C to 45 °C (14 °F to +113 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

151 × 121 × 46 mm (5.94 × 4.76 × 1.81 inch)

Weight

≤ 0.5 kg (with eSSD, 1.1 lb.)
