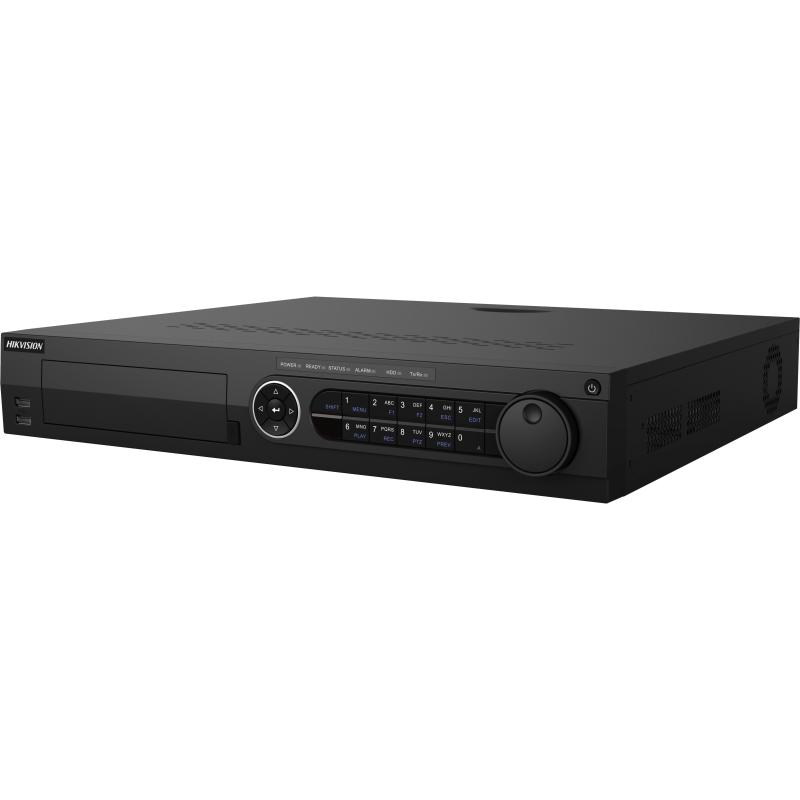

16-ch 5MP 1.5U H.265 AcuSense DVR

  • Deep learning-based perimeter protection
  • Deep learning-based motion detection 2.0 for all analog channels
  • Up to 16-ch analog camera inputs and 4 SATA interfaces
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
  • Up to 8 MP@8 fps/5 MP@12 fps encoding capability
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Up to 34-ch network camera inputs
  • POS triggered recording and POS information overlay

View Less
View more

Available models:

iDS-7316HUHI-M4/S

Specification

  • Motion Detection 2.0
  • Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
  • Perimeter Protection
  • Human/Vehicle AnalysisUp to 8-ch, for channel 1/2/3/4/9/10/11/12 only
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame RateMain stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Bitrate32 Kbps to 10 Mbps
  • Dual-streamSupport
  • Stream Type
