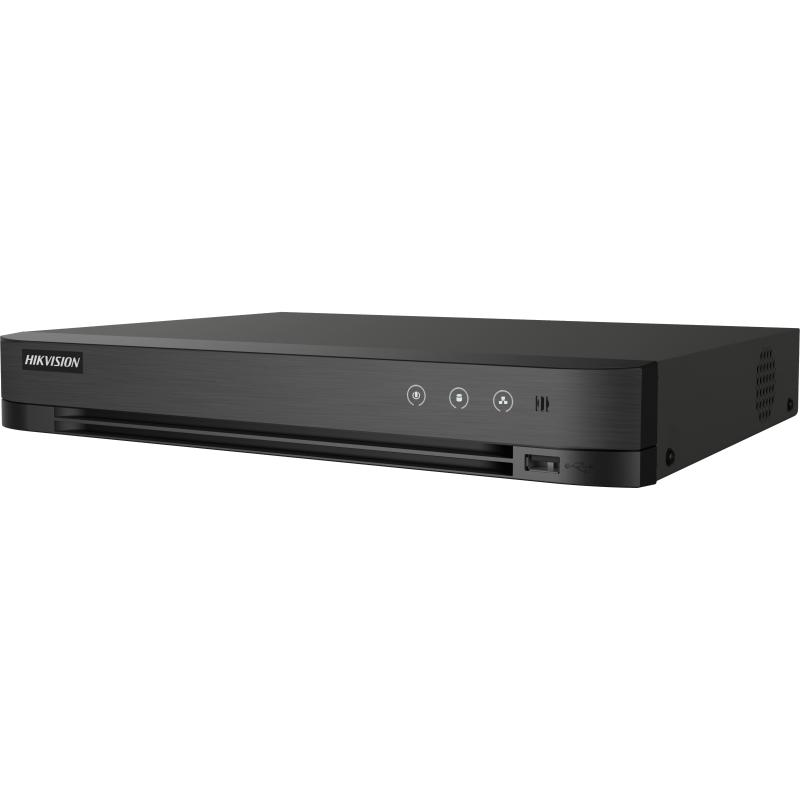

8-ch 5 MP 1U H.265 AcuSense DVR

  • 8 channels and 1 HDD 1U AcuSense DVR
  • Providing detailed information with face detection
  • False alarm reduction by human and vehicle target classification based on deep learning
  • Efficient H.265 pro+ compression technology
  • Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 16 network cameras can be connected.

Specification
  • Recording
  • Encoding resolutionMain stream: 8 MP@8 fps/5 MP@12 fps/ 4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video bit rate32 Kbps to 10 Mbps
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Video and Audio
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback8-ch
  • IP video input8-ch (up to 16-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI input8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
  • HDCVI input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog video input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI/VGA outputHDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
  • Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections64
  • Network interface1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • Auxiliary interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial interfaceRS-485 (half-duplex)
  • USB interface1 × USB 2.0; 1 × USB 3.0
  • Alarm in/outN/A
  • SATA1 SATA interface
  • General
  • Consumption(without HDD)≤ 10 W
  • Working humidity10% to 90%
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
  • Weights (without HDD)≤ 2 kg (4.4 lb)
