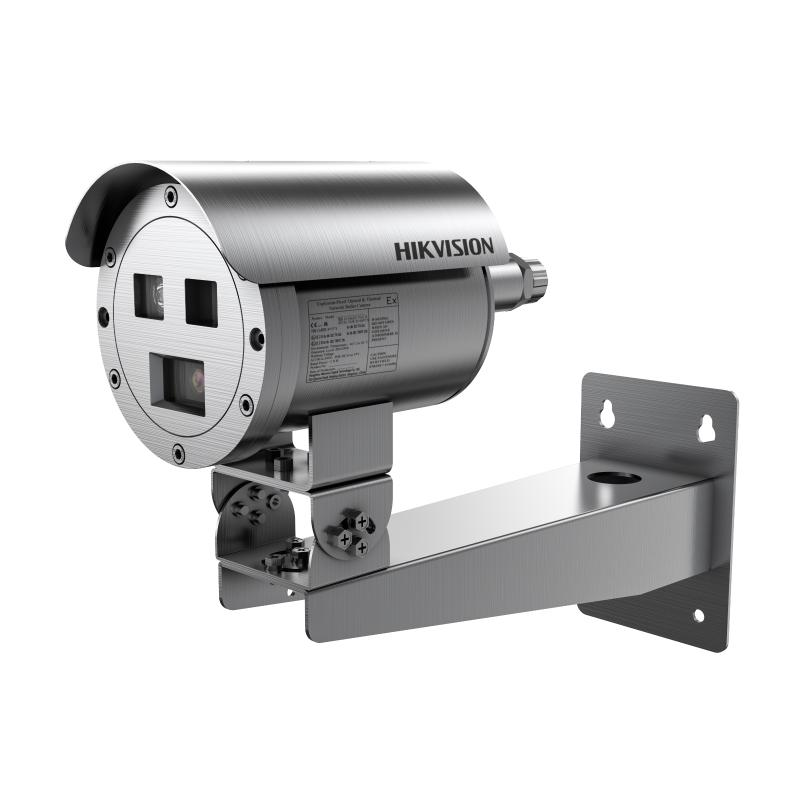

DS-2TD2528T-10/Q

Explosion-Proof Thermographic Network Bullet Camera

High sensitivity sensor with 256 x 192 resolution
NETD is less than 40 mk (@25° C, F#=1.0)
Supports contrast adjustment
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Up to 15 palettes of adjustable color
Powerful perimeter protection functions, based on intelligent algorithm: Line crossing, intrusion, region entrance & exit
High quality detector with 10 years warranty
316L Stainless Steel enclosure, protecting camera in corrosive environments and extending reliability and longevity far beyond standard cameras
ATEX, IECEx, NEMA 4X Certificated

View Less

Available models:

DS-2TD2528T-10/Q

Optical Module
Max. Resolution2688 × 1520
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)
Field of View39.4° × 22.0°(H × V)
Aperture RangeF1.6
WDR120 dB
Shutter Speed1s to 1/100,000s
Day & NightIR cut filter with auto switch
Focal Length8 mm

Smart Function
VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
Temperature Range-20°C to 550°C (-4°F to 1,022°F)
Temperature AccuracyMax (± 2°C, ± 2%)
