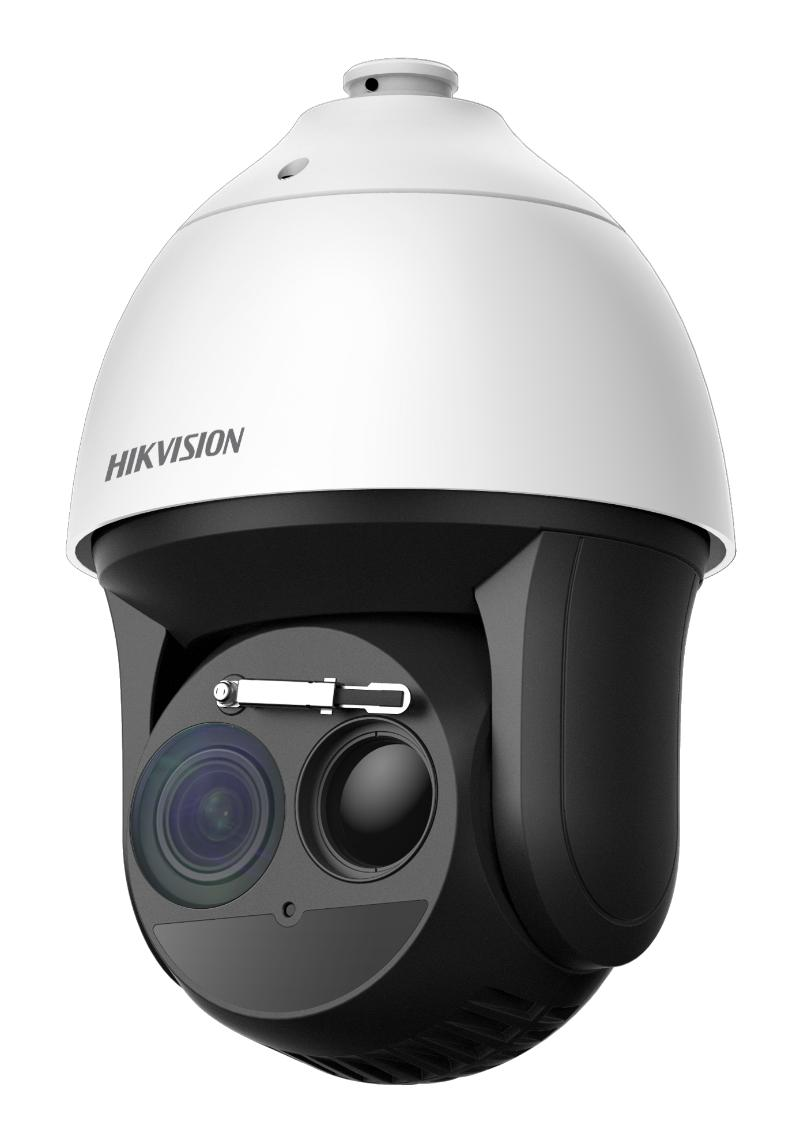

Anti-corrosion Thermal & Optical Bi-spectrum Network Speed Dome

  • Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance and exit
  • Fire detection algorithm
  • Temperature exception alarm for fire prevention
  • 640 × 512 (the resolution of output image is 640 × 512) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)
  • Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
  • NEMA-4X Standard
  • High quality detector with 10 years guarantee
  • Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
  • Smart tracking linkage: thermal view and optical view
  • Thermal channel supports EIS, conflicted with intelligent function
  • Smoke detection for fire prevention
View Less
View more

Available models:

DS-2TD4167-50/WY
DS-2TD4167-50/WY(B)

Specification

  • Thermal Module
  • Image SensorVOx Uncooled Focal Plane Arrays
  • Resolution640 × 512
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETDLess than 40 mK (@ 25 °C,F#=1.0)
  • Focal Length50 mm
  • Focus ModeAthermalized
  • IFOV0.34 mrad
  • ApertureF1.0
  • Field of View12.4° × 9.9° (H × V)
  • Min. Focusing Distance50m
  • Digital Zoom×2, ×4, ×8
  • Optical Module
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Resolution2688 × 1520, 4 MP
  • Min. IlluminationColor: 0.005 Lux @(F1.3,AGC ON), B/W: 0.001 Lux @(F1.3,AGC ON)
  • Field of View56.6° ×33.7° (H × V)~1.8° ×1.0° (H × V)
  • Focal Length6-240 mm, 40x
  • Aperture (Range)F1.3-F4.6
  • Focus ModeAuto/Semi-auto/Manual
  • Digital Zoom×2, ×4, ×8, ×16
  • Shutter Speed1s to 1/30,000s
  • WDR120 dB
  • Optical DefogYes
  • Image Effect
  • Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
  • Target ColorationSupported in white hot and black hot mode
  • PTZ
  • Movement RangePan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
  • Pan SpeedConfigurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
  • Tilt SpeedConfigurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
  • Proportional ZoomYes
  • Presets300 in total, 273 are configurable.
  • Patrol Scan8; Up to 32 Presets Per Patrol
  • Pattern Scan4; More Than 10 Minutes Per Pattern
  • Power Off MemoryYes
  • ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PT StatusTurn On/Turn Off
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • Illuminator
  • IR DistanceUp to 150m
  • IR Intensity and AngleAutomatically adjusted
  • Smart Function
  • VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
  • Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
  • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy± 8 °C (±14.4 °F)
  • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
  • Video and Audio
  • Main StreamThermal channel 50fps(1920 × 1080, 1280 × 960, 1280 × 720,704×576,640×512,384×288) Optical channel 50Hz:25fps(2688 × 1520,1920 × 1080, 1280 × 960, 1280 × 720) 60Hz:30fps(2688 × 1520,1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-streamThermal channel 50fps(704×576,640×512,384×288) Optical channel 50Hz:25fps(704 × 576, 352 × 288) 60Hz:30fps(704 × 576, 352 × 288)
  • Video CompressionMain stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264/MJPEG
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Network StorageMicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF profile S,T,G)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
  • Interface
  • Alarm Input7-ch inputs (0-5 VDC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio OutputLinear Level; Impedance: 600 Ω
  • Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
  • Analog Video Output1.0 V [p-p]/75 Ω
  • General
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply24V AC ± 20%, 36V DC ± 20%, 48V DC ± 20%
  • Power Consumption65W Max
  • Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
  • WiperYes
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimension220 mm × 410 mm × 198.6 mm (8.66" × 16.15" × 7.82")
  • WeightApprox. 9kg (19.84 lb)
  • Detection Range Table/Smart Function Range
  • VCA Range for Humans350 m
  • VCA Range for Vehicles1050 m

Specification

Specification
Thermal Module
  • Image SensorVOx Uncooled Focal Plane Arrays
  • Resolution640 × 512
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETDLess than 40 mK (@ 25 °C,F#=1.0)
  • Focal Length50 mm
  • Focus ModeAthermalized
  • IFOV0.34 mrad
  • ApertureF1.0
  • Field of View12.4° × 9.9° (H × V)
  • Min. Focusing Distance50m
  • Digital Zoom×2, ×4, ×8
Optical Module
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Resolution2688 × 1520, 4 MP
  • Min. IlluminationColor: 0.005 Lux @(F1.3,AGC ON), B/W: 0.001 Lux @(F1.3,AGC ON)
  • Field of View56.6° ×33.7° (H × V)~1.8° ×1.0° (H × V)
  • Focal Length6-240 mm, 40x
  • Aperture (Range)F1.3-F4.6
  • Focus ModeAuto/Semi-auto/Manual
  • Digital Zoom×2, ×4, ×8, ×16
  • Shutter Speed1s to 1/30,000s
  • WDR120 dB
  • Optical DefogYes
Image Effect
  • Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
  • Target ColorationSupported in white hot and black hot mode
PTZ
  • Movement RangePan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
  • Pan SpeedConfigurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
  • Tilt SpeedConfigurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
  • Proportional ZoomYes
  • Presets300 in total, 273 are configurable.
  • Patrol Scan8; Up to 32 Presets Per Patrol
  • Pattern Scan4; More Than 10 Minutes Per Pattern
  • Power Off MemoryYes
  • ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PT StatusTurn On/Turn Off
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
Illuminator
  • IR DistanceUp to 150m
  • IR Intensity and AngleAutomatically adjusted
Smart Function
  • VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
  • Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
  • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy± 8 °C (±14.4 °F)
  • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
Video and Audio
  • Main StreamThermal channel 50fps(1920 × 1080, 1280 × 960, 1280 × 720,704×576,640×512,384×288) Optical channel 50Hz:25fps(2688 × 1520,1920 × 1080, 1280 × 960, 1280 × 720) 60Hz:30fps(2688 × 1520,1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-streamThermal channel 50fps(704×576,640×512,384×288) Optical channel 50Hz:25fps(704 × 576, 352 × 288) 60Hz:30fps(704 × 576, 352 × 288)
  • Video CompressionMain stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264/MJPEG
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Network StorageMicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF profile S,T,G)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
Interface
  • Alarm Input7-ch inputs (0-5 VDC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio OutputLinear Level; Impedance: 600 Ω
  • Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
  • Analog Video Output1.0 V [p-p]/75 Ω
General
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply24V AC ± 20%, 36V DC ± 20%, 48V DC ± 20%
  • Power Consumption65W Max
  • Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
  • WiperYes
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimension220 mm × 410 mm × 198.6 mm (8.66" × 16.15" × 7.82")
  • WeightApprox. 9kg (19.84 lb)
Detection Range Table/Smart Function Range
  • VCA Range for Humans350 m
  • VCA Range for Vehicles1050 m
Firmware
Applied to:
DS-2TD4167-50/WY
DS-2TD4167-50/WY(B)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
