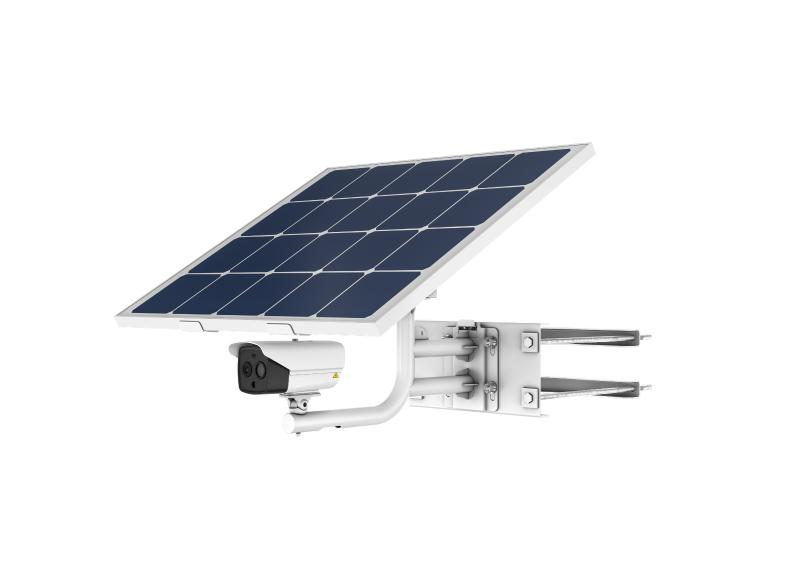

Solar-powered Thermal Camera Kit

  • 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • 80 W photovoltaic panel, 30 Ah chargeable lithium battery(The battery should be ordered separately.)
  • Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
  • LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card
  • Water and dust resistant (IP67)
  • Embedded audible alert and strobe light
  • High quality detector with 10 years guarantee

View Less
View more

Available models:

DS-2TXS2628-7P/QA/GLT/CH30S80

Specification

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution256 x 192
  • Pixel Pitch12 μm
  • Spectral Range8 μm to 14 μm
  • NETD ≤ 40 mK (@25° C,F# = 1.0)
  • Focal Length6.9 mm
  • IFOV1.74 mrad
  • Aperture F1.0
  • Field of View24.9° × 18.7° (H × V)
  • Min. Focusing Distance1 m
  • Digital Zoom×2, ×4
  • Optical Module
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Resolution2688 × 1520
  • Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Field of View53.0°(H) x28.0°(V)
  • Focal Length6.4 mm
  • ApertureF 1.6
  • Shutter Speed1 s to 1/100,000 s
  • White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
  • Day & Night Mode IR Cut Filter with Auto Switch
  • WDR120 dB
  • Image Effect
  • Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
  • Target Coloration Yes. Supported in white hot and black hot mode
  • Illuminator
  • IR Distance Up to 30 m
  • IR Intensity and Angle Automatically adjusted
  • Audible and Visual Alarm
  • White Light Range Up to 30 m
  • Visual AlarmYes. White light alarm with adjustable flashing frequencies
  • Audio alarm Yes, for three types of audible alarm (VCA and Temperature Exception) 3 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types)
  • Smart Function
  • VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range-20°C to 150°C (-4°F to 302°F)
  • Temperature Accuracy ± 8°C (± 14.4°F)
  • Video and Audio
  • Main Stream Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
  • Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
  • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Network
  • Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
