EOL

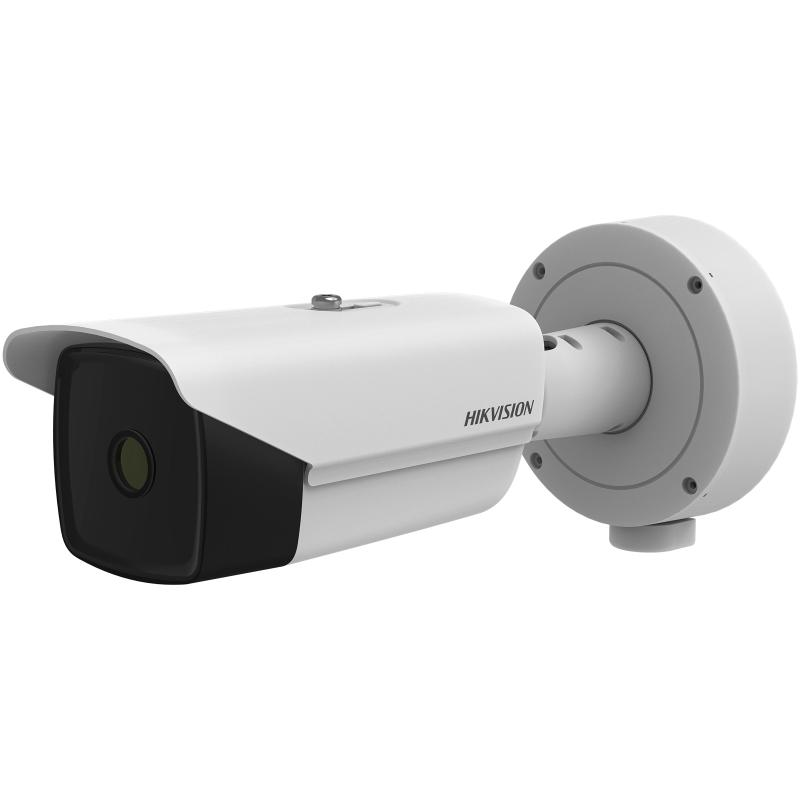

Thermal Network Bullet Camera

  • High sensitivity sensor with 384 x 288 resolution
  • NETD is less than 35 mk (@25° C, F#=1.0)
  • Supports contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color
  • Powerful perimeter protection functions, based on intelligent algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Advanced fire detection algorithm
View Less
View more

Available models:

DS-2TD2137-15/PI

Specification

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution384 × 288
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETDLess than 35 mK (@25 °C,F#=1.0)
  • Focal Length15 mm
  • IFOV1.13 mrad
  • Field of View24.5° × 18.5° (H × V)
  • Min. Focusing Distance2.5 m
  • ApertureF 1.0
  • Digital Zoom×2, ×4, ×8
  • Image Effect
  • Target ColorationYes. Supported in white hot and black hot mode.
  • Smart Function
  • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
  • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy± 8 °C (±14.4 °F)
  • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
  • Video and Audio
  • Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288)
  • Sub StreamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240)
  • Third StreamThermal: 25 fps (1280 × 720, 704 × 576, 352 × 288, 320 × 240)
  • Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
  • Interface
  • Alarm Input1-ch inputs (0-5 VDC)
  • Alarm Output1-ch relay outputs, alarm response actions configurable
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio OutputLinear Level; Impedance: 600 Ω
  • Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface
  • General
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A
  • Power Consumption18 VAC to 30VAC: 0.13 A to 0.22A, max 5w 9 VDC to 15VDC: 0.37 A to 0.61A, max 5w PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5W
  • Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 90% or Less
  • Protection LevelIP67 Standard TVS 6000 V lightning protection, surge protection, voltage transient protection
  • Dimension353.9 mm × 144.1 mm × 156.6 mm (13.93" × 5.67" × 6.17")
  • WeightApprox. 2.61 kg (5.76lb)
  • Detection Range Table/Wide Range Coverage
  • Detection Range for Humans (1.8×0.5m)441 m
  • Detection Range for Vehicles (4.0×1.4m)1353 m
  • Recognition Range for Humans (1.8×0.5m)110 m
  • Recognition Range for Vehicles (4.0×1.4m)338 m
  • Identification Range for Humans (1.8×0.5m)55 m
  • Identification Range for Vehicles (4.0×1.4m)169 m
  • Detection Range Table/Smart Function Range
  • VCA Range for Humans105 m
  • VCA Range for Vehicles315 m
  • Temperature Measurement Range for Object (2m×2m)351 m
  • Temperature Measurement Range for Object (1m×1m)177 m
  • Fire Detection Range for Object (2m×2m)882 m
  • Fire Detection Range for Object (1m×1m)441 m

Specification

Specification
Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution384 × 288
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETDLess than 35 mK (@25 °C,F#=1.0)
  • Focal Length15 mm
  • IFOV1.13 mrad
  • Field of View24.5° × 18.5° (H × V)
  • Min. Focusing Distance2.5 m
  • ApertureF 1.0
  • Digital Zoom×2, ×4, ×8
Image Effect
  • Target ColorationYes. Supported in white hot and black hot mode.
Smart Function
  • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
  • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy± 8 °C (±14.4 °F)
  • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
Video and Audio
  • Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288)
  • Sub StreamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240)
  • Third StreamThermal: 25 fps (1280 × 720, 704 × 576, 352 × 288, 320 × 240)
  • Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
Interface
  • Alarm Input1-ch inputs (0-5 VDC)
  • Alarm Output1-ch relay outputs, alarm response actions configurable
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio OutputLinear Level; Impedance: 600 Ω
  • Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface
General
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A
  • Power Consumption18 VAC to 30VAC: 0.13 A to 0.22A, max 5w 9 VDC to 15VDC: 0.37 A to 0.61A, max 5w PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5W
  • Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 90% or Less
  • Protection LevelIP67 Standard TVS 6000 V lightning protection, surge protection, voltage transient protection
  • Dimension353.9 mm × 144.1 mm × 156.6 mm (13.93" × 5.67" × 6.17")
  • WeightApprox. 2.61 kg (5.76lb)
Detection Range Table/Wide Range Coverage
  • Detection Range for Humans (1.8×0.5m)441 m
  • Detection Range for Vehicles (4.0×1.4m)1353 m
  • Recognition Range for Humans (1.8×0.5m)110 m
  • Recognition Range for Vehicles (4.0×1.4m)338 m
  • Identification Range for Humans (1.8×0.5m)55 m
  • Identification Range for Vehicles (4.0×1.4m)169 m
Detection Range Table/Smart Function Range
  • VCA Range for Humans105 m
  • VCA Range for Vehicles315 m
  • Temperature Measurement Range for Object (2m×2m)351 m
  • Temperature Measurement Range for Object (1m×1m)177 m
  • Fire Detection Range for Object (2m×2m)882 m
  • Fire Detection Range for Object (1m×1m)441 m
