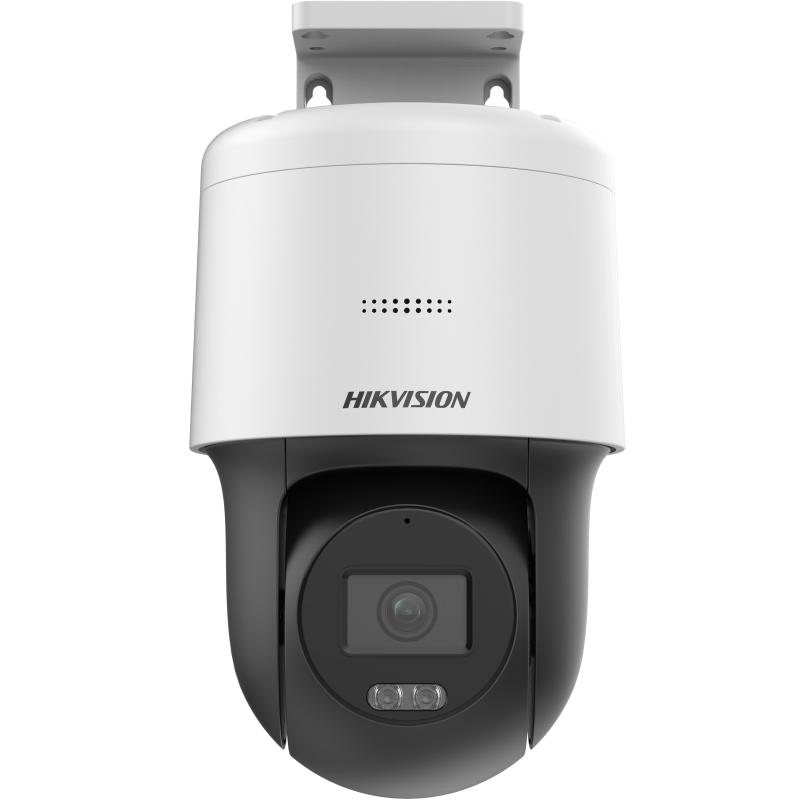

2-inch 4 MP 0X Powered by DarkFighter IR Network Speed Dome

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong back light due to DWDR technology
  • 3D DNR technology delivers clean and sharp images
  • Hik-Connect cloud service and APP for remote management and views of devices
  • Built-in microphone for real-time audio security
  • Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Water and dust resistant IP66

Available models:

DS-2DE2C400MW-DE(F0)(S7)
DS-2DE2C400MW-DE(F1)(S7)

Specification

  • Camera
  • Image Sensor1/3″ Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.005 Lux @(F1.2,AGC ON), B/W: 0 Lux with IR
  • Lens
  • Focal Length2.8 mm/ 4 mm
  • FOV2.8 mm, horizontal FOV 97°, vertical FOV 52.3°, diagonal FOV 114.3° 4 mm, horizontal FOV 79°, vertical FOV 42.4°, diagonal FOV 93.3°
  • ApertureF1.6
  • Illuminator
  • Supplement Light TypeIR & White Light
  • Supplement Light RangeWhite Light Distance: up to 30 m IR Distance: up to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • PTZ
  • Movement Range (Pan)0° to 340°
  • Movement Range (Tilt)-5° to 105°
  • Pan SpeedPan speed: configurable from 4° to 21°/s
  • Tilt SpeedTilt speed: configurable from 4° to 19°/s
  • Video
  • Video CompressionH.265, H.264, MJPEG
  • H.264 TypeBaseline Profile, Main Profile, High Profile
  • H.265 TypeMain Profile
  • Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Bit Rate32 Kbps to 8 Mbps
  • Audio
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
  • Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
  • APIOpen Network Video Interface, ISAPI, SDK
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Built-in MicrophoneYes
  • Built-in SpeakerYes
  • ResetYes
  • Event
  • Basic EventMotion detection
  • Alarm LinkageUpload to FTP, notify surveillance center, send email, upload to memory card
  • General
  • Operating ConditionWith supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing) With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)
  • General FunctionMirror, password protection, watermark
  • Power12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 10.8 W
  • DimensionsCamera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2") Package dimension: 205 mm × 167 mm × 289 mm (8.1" × 6.6" × 11.4")
  • Camera weight: 700 g (1.5 lb.) With package weight: 1250 g (2.8 lb.)
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016)
  • ProtectionIP66 (IEC 60529-2013)

Specification

Firmware
Applied to:
DS-2DE2C400MW-DE(F0)(S7)
DS-2DE2C400MW-DE(F1)(S7)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
