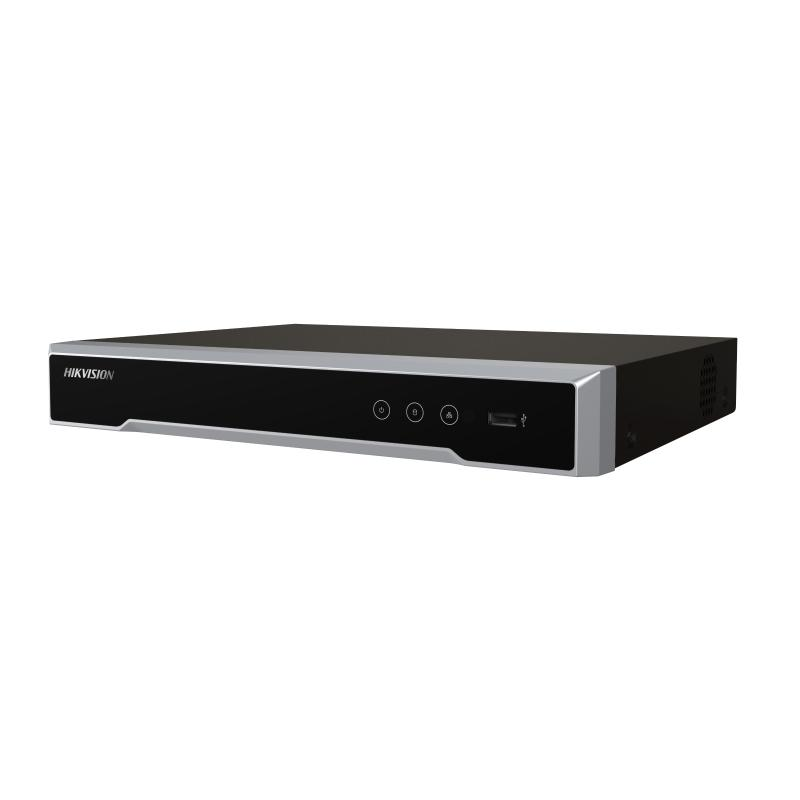

DS-7604NI-M1/4P


    4-ch 1U 4K NVR

    • H.265+/H.265/H.264+/H.264 video formats
    • Up to 4-ch IP camera inputs
    • Up to 4-ch@8 MP decoding capacity
    • Up to 40 Mbps incoming bandwidth
    View Less
    View more

    Available models:

    DS-7604NI-M1/4P

    Specification

    • Video and Audio
    • IP Video Input4-ch Up to 32 MP resolution
    • Incoming Bandwidth40Mbps
    • Outgoing Bandwidth80 Mbps
    • HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz
    • VGA Output1920 × 1080/60 Hz
    • Video Output ModeHDMI/VGA independent output
    • CVBS OutputNA
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
    • Decoding
    • Dual-Stream RecordingSupport
    • Decoding FormatH.265+/H.265/H.264+/H.264
    • Decoding Capability4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
    • Synchronous Playback4-ch
    • Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
    • Stream TypeVideo, Video & Audio
    • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
    • Network
    • Remote Connection128
    • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    • PoE
    • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
    • Power≤ 60 W
    • StandardIEEE 802.3 af/at
    • Auxiliary Interface
    • SATA1 SATA interfaces
    • CapacityUp to 16 TB capacity for each HDD
    • Alarm In/Out4/1
    • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
    • General
    • Power Supply48 VDC, 1.875 A
    • Consumption≤ 15 W (without HDD and PoE off)
    • Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
    • Working Humidity10% to 90%
    • Dimension (W × D × H)320× 240 × 48 mm (12.4" × 9.4" × 1.9")
    • Weight≤ 1.2 kg (without HDD, 2.6 lb.)
    • Certification
    • CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Video and Audio
    IP Video Input
    4-ch Up to 32 MP resolution
    Incoming Bandwidth
    40Mbps
    Outgoing Bandwidth
    80 Mbps
    HDMI Output
    8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz
    VGA Output
    1920 × 1080/60 Hz
    Video Output Mode
    HDMI/VGA independent output
    CVBS Output
    NA
    Audio Output
    1-ch, RCA (Linear, 1 KΩ)
    Two-Way Audio
    1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
    Decoding
    Dual-Stream Recording
    Support
    Decoding Format
    H.265+/H.265/H.264+/H.264
    Decoding Capability
    4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
    Synchronous Playback
    4-ch
    Recording Resolution
    32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
    Stream Type
    Video, Video & Audio
    Audio Compression
    G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
    Network
    Remote Connection
    128
    Network Protocol
    TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    Network Interface
    1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    PoE
    Interface
    4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
    Power
    ≤ 60 W
    Standard
    IEEE 802.3 af/at
    Auxiliary Interface
    SATA
    1 SATA interfaces
    Capacity
    Up to 16 TB capacity for each HDD
    Alarm In/Out
    4/1
    USB Interface
    Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
    General
    Power Supply
    48 VDC, 1.875 A
    Consumption
    ≤ 15 W (without HDD and PoE off)
    Working Temperature
    -10 °C to 50 °C (14 °F to 122 °F)
    Working Humidity
    10% to 90%
    Dimension (W × D × H)
    320× 240 × 48 mm (12.4" × 9.4" × 1.9")
    Weight
    ≤ 1.2 kg (without HDD, 2.6 lb.)
    Certification
    CE
    EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Video and Audio
    • IP Video Input4-ch Up to 32 MP resolution
    • Incoming Bandwidth40Mbps
    • Outgoing Bandwidth80 Mbps
    • HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz
    • VGA Output1920 × 1080/60 Hz
    • Video Output ModeHDMI/VGA independent output
    • CVBS OutputNA
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
    Decoding
    • Dual-Stream RecordingSupport
    • Decoding FormatH.265+/H.265/H.264+/H.264
    • Decoding Capability4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
    • Synchronous Playback4-ch
    • Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
    • Stream TypeVideo, Video & Audio
    • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
    Network
    • Remote Connection128
    • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    PoE
    • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
    • Power≤ 60 W
    • StandardIEEE 802.3 af/at
    Auxiliary Interface
    • SATA1 SATA interfaces
    • CapacityUp to 16 TB capacity for each HDD
    • Alarm In/Out4/1
    • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
    General
    • Power Supply48 VDC, 1.875 A
    • Consumption≤ 15 W (without HDD and PoE off)
    • Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
    • Working Humidity10% to 90%
    • Dimension (W × D × H)320× 240 × 48 mm (12.4" × 9.4" × 1.9")
    • Weight≤ 1.2 kg (without HDD, 2.6 lb.)
    Certification
    • CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Firmware

    Firmware_V5.01.070_240412
    Applied to:
    DS-7604NI-M1/4P
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
