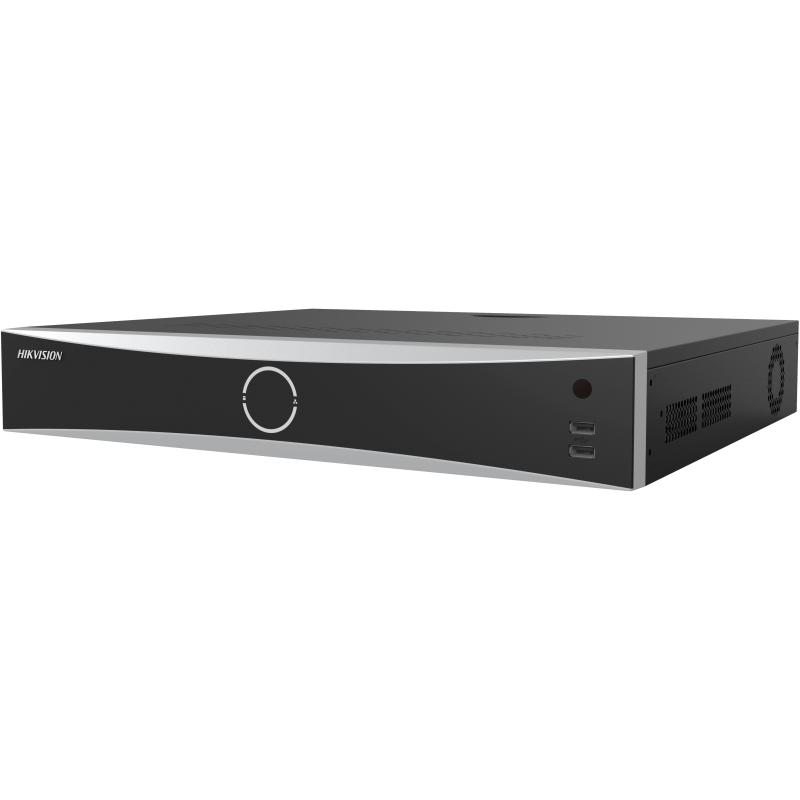

32-ch 1U AcuSense 4K NVR

  • H.265+/H.265/H.264+/H.264 video formats
  • Intelligent analytics based on deep learning algorithm
  • Up to 4-ch perimeter protection
  • Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
  • Up to 32-ch IP camera inputs
  • Up to 16-ch 1080p decoding capability
  • Up to 256 Mbps incoming bandwidth

Specification
  • Motherboard Model
  • Motherboard modelDS-80232(V2.1)-3G-NF-B
  • Control Unit
  • Motherboard chipK51
  • FLASH256M+256M NAND FLASH
  • System memory3G
  • Smart Engine Unit
  • GPU chipH92
  • GPU number1
  • Module memory1G
  • System Parameter
  • Video input channel32
  • Incoming bandwidth256 Mbps
  • Outgoing bandwidth256 Mbps
  • Video resolution12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Video Parameter
  • Video output2-ch HDMI, 1-ch VGA
  • HDMI outputHDMI1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output HDMI2 output:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
  • VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
  • CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Live view window division1/4/6/8/9/16/25/32/36
  • Aux port window division1/4/6/8/9/16/25/32/36
  • Video decoding formatH.265;H.265+;H.264;H.264+;MPEG4
  • Decoding capability16-ch @ 1080p (30 fps)
  • Synchronous playback16-ch
  • Smart Analysis
  • Face picture libraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
  • List library capacity1w
  • List library16
  • Face picture comparison4-ch face picture comparison alarm
  • Face capture1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
  • Audio Parameter
  • Audio decoding formatG.711ulaw;G.711alaw;G.722;G.726;MP2L2
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • HDD Management
  • HDD No.4 SATA interfaces
  • Max. capacity per HDDUp to 8 TB capacity for each disk
  • Extended storage1个eSATA接口
  • Recording Management
  • Record/Capture modeManual Recording, Scheduled Recording, Event Triggered Recording, Motion Detection Triggered Recording, Continuous Recording, Alarm Triggered Recording,
  • Playback modeNormal/Smart, Event, Tag, Eternal File
  • Backup modeNormal Backup, Event Backup
  • External Port
  • Network interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Serial portRS-485 (half-duplex), RS-232, Keyboard
  • USB interfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm input/output16/4
  • General Standard
  • Power≤ 80W
  • Power Parameter100 to 240 VAC, 50 to 60 Hz
  • FanSupport
  • Consumption (without HDD)≤ 30W
  • Working temperature-10℃~+55℃
  • Working humidity10%~90%
  • Chassis1.5U
  • Dimension445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")
  • Weight (without HDD)≤ 5.6 kg (12.3 lb)
  • Others
  • IR remote controlSupport
  • PanelMB-262
  • Temperature sensorN/A
  • Slide railN/A
  • Mounting ear1 pair (build-in)
  • Package彩包
  • LabeliDS-7732NXI-I4/S
  • AccessorySATA数据线、SATA电源线、电源线、硬盘螺钉、网线、鼠标
  • 标配:Hik-Connect verification code 中性:Guarding Vision verification code支持
