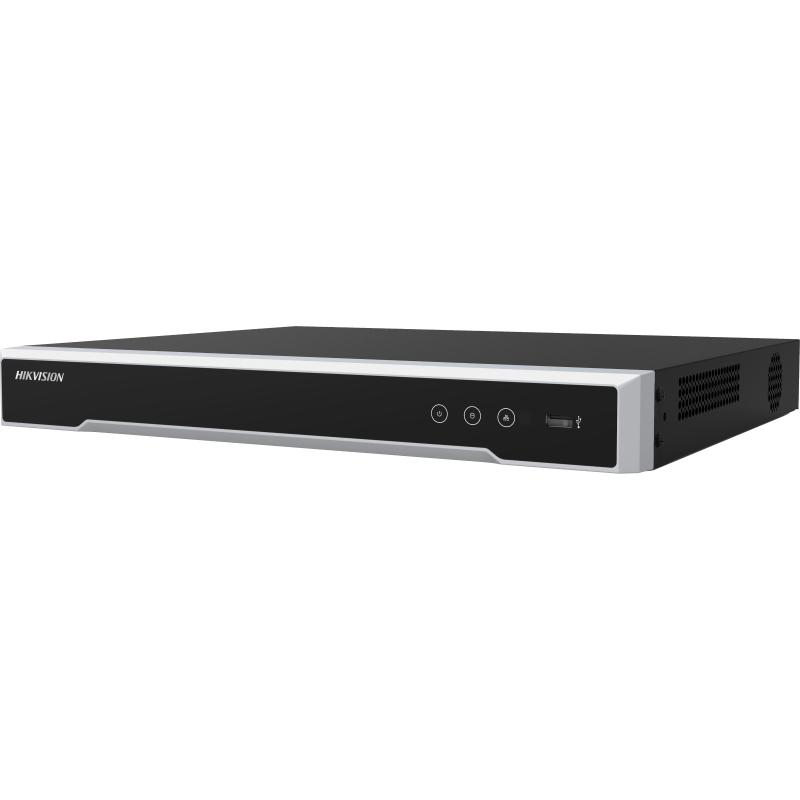

DS-7608NI-Q2

8-ch 1U 4K NVR

  • Up to 8-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
  • Up to 80 Mbps incoming bandwidth

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-7608NI-Q2(C)
DS-7608NI-Q2(D)
DS-7608NI-Q2(D)
DS-7608NI-Q2
Data Sheet

Specification

  • Motion Detection 2.0
  • Human/Vehicle Analysis4-ch
  • Video and Audio
  • IP Video Input8-ch
  • Incoming Bandwidth80 Mbps
  • Outgoing Bandwidth80 Mbps
  • HDMI Output1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz;1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Video Output ModeHDMI/VGA simultaneous output
  • Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback8-ch
  • Decoding Capability1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
  • Stream TypeVideo, Video & Audio
  • Network
  • Remote Connection32
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 8 TB capacity for each disk
  • Alarm In/OutN/A (4/1 is optional)
  • USB Interface2 × USB 2.0
  • General
  • Power Supply12 VDC, 3.33 A
  • Consumption≤ 15 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Chassis1U chassis
  • Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
  • Weight≤ 1.8 kg (without HDD, 4.0 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Motion Detection 2.0
Human/Vehicle Analysis
4-ch
Video and Audio
IP Video Input
8-ch
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
80 Mbps
HDMI Output
1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output
1-ch, 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz;1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Video Output Mode
HDMI/VGA simultaneous output
Decoding
Decoding Format
H.265+,H.265,H.264+,H.264
Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback
8-ch
Decoding Capability
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Stream Type
Video, Video & Audio
Network
Remote Connection
32
Network Protocol
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
2 SATA interfaces
Capacity
Up to 8 TB capacity for each disk
Alarm In/Out
N/A (4/1 is optional)
USB Interface
2 × USB 2.0
General
Power Supply
12 VDC, 3.33 A
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10 to 90 %
Chassis
1U chassis
Dimension (W × D × H)
385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight
≤ 1.8 kg (without HDD, 4.0 lb.)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Motion Detection 2.0
  • Human/Vehicle Analysis4-ch
Video and Audio
  • IP Video Input8-ch
  • Incoming Bandwidth80 Mbps
  • Outgoing Bandwidth80 Mbps
  • HDMI Output1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz;1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Video Output ModeHDMI/VGA simultaneous output
Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback8-ch
  • Decoding Capability1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
  • Stream TypeVideo, Video & Audio
Network
  • Remote Connection32
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 8 TB capacity for each disk
  • Alarm In/OutN/A (4/1 is optional)
  • USB Interface2 × USB 2.0
General
  • Power Supply12 VDC, 3.33 A
  • Consumption≤ 15 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Chassis1U chassis
  • Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
  • Weight≤ 1.8 kg (without HDD, 4.0 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.75.207_240604
K9B2_V4.75.207build240604_ReleaseNotes
Applied to:
DS-7608NI-Q2(C)
Firmware_V4.83.006_240910
K21B2_V4.83.006 build240910_ReleaseNotes
Applied to:
DS-7608NI-Q2(D)
